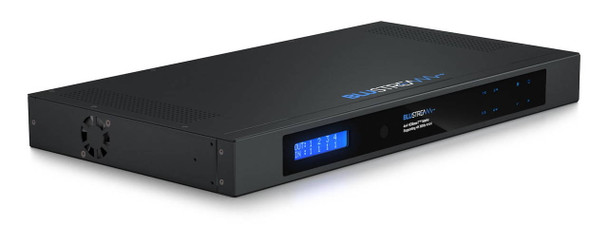

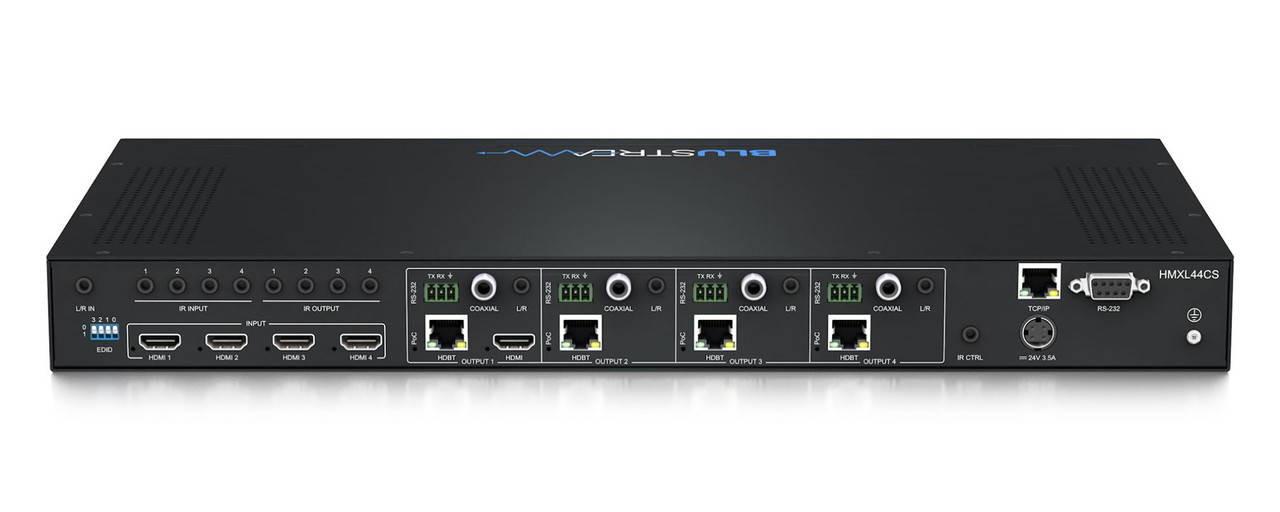

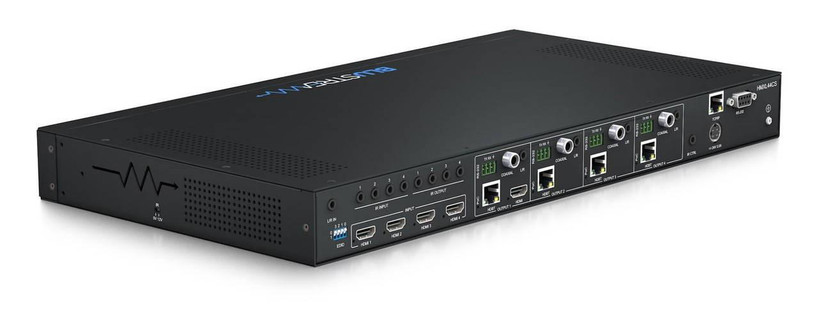

Blustream 4x4 HDBaseT™ CSC Matrix Kit - 70m

Blustream 4x4 HDBaseT™ CSC Matrix Kit - 70m offers unprecedented performance and value for the custom installation market. The HMXL44CS-KIT is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix package utilising CSC technology to deliver HDMI, Bi-directional IR, RS-232 and PoC up to lengths of 70m over a single CAT cable. The matrix also provides advanced features including simultaneous HDBaseT™ / HDMI on output 1, video down conversion on HDBaseT™ output 1, audio breakout with pre-amp variable line-level control and a web browser interface module for control and configuration of the matrix. The HMXL44CS-KIT is supplied with 4 x HEX70CS-RX receivers.

Features:

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
• Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputs
• Output 1 features simultaneous HDMI and HDBaseT™ output
• Video down-conversion on HDBaseT™ output 1 allows for a display only capable of supporting lower video resolutions (4K @ 60Hz 4:2:0 or 1080p) to receive the native 4K @ 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
• Supports 4K @ 60Hz 4:4:4 UHD video up to 40m
• Extends HDMI 1080p video up to 70m
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• HDMI re-clocking on the HEX70CS-RX HDBaseT™ Receivers to help solve HDMI HDCP, compatibility, and handshaking issues
• Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio, and DTS:X transmissions
• Analogue (L/R) audio input can be embedded onto any combination of HDMI inputs concurrently
•  Web interface module for control and configuration of the matrix
• Supports bi-directional IR and RS-232 on all HDBaseT™ outputs
• Supplied with Blustream IR receivers and emitters
• Control via front panel, IR, RS-232 and TCP/IP
• Supports PoC (Power over Cable) to power supplied HDBaseT™ receivers
• 3rd Party drivers available for all major control brands
• 1U Design for 19" rack mount integration - mounting kit included
• Advanced EDID management
• HDCP 2.2 compliant

In the box:

• 1 x HMXL44CS
• 4 x HEX70CS-RX
• 1 x Rack Mounting Kit for HMXL44CS
• 4 x Mounting Kits for HEX70CS-RX
• 1 x 24V/3.5A Power Supply
• 1 x IR Remote Control
• 4 x IRCAB IR Control Cables - 3.5mm-3.5mm Cable
• 4 x IR Emitters
• 5 x IRR Receivers
