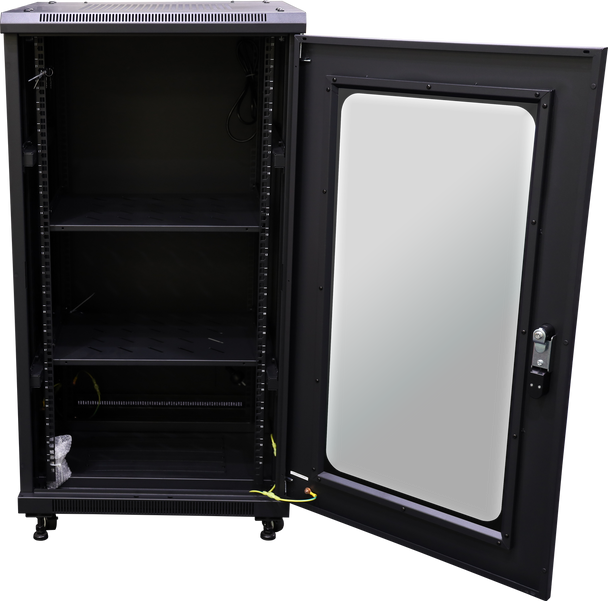

Datatek 22U 600mm Deep Data Cabinet - FPS Series

The Datatek 24A22R66FPS is the perfect mid-size, fully-loaded 22U floor-standing data cabinet that arrives 100 % assembled and ready to roll into your server room or comms room today.

With an 800 kg static load rating, reversible lockable tempered-glass front door, removable lockable side panels and every essential accessory already installed, this is the smartest all-in-one 22U solution for growing networks, NVRs, switches and small servers.

Key Features & Benefits

• Heavy-duty welded cold-rolled steel frame – Black powder-coat finish
• 22U usable height × 600 mm wide × 600 mm deep
• Massive 800 kg load capacity
• Reversible, reinforced tempered-glass front door with lock
• Fully removable & lockable side panels
• 4 × high-airflow 240 V ceiling fans pre-wired and fitted
• 1 × vertical 6-outlet Australian GPO PDU (10 A)
• 2 × heavy-duty fixed ventilated shelves included
• 4 × adjustable levelling feet + 4 × castors (2 braked)
• Top & bottom cable entry glands
• Pre-fitted earthing on door & panels
• Complies with ANSI/EIA RS-310-D, IEC297-2, DIN41491, ETSI
• IP20 rated

Technical Specifications

• Usable Height: 22RU (977 mm internal)
• External Dimensions: 600 (W) × 600 (D) × 1166 (H) mm
• Internal Depth (rail to rear door): ~540 mm
• 19″ square-hole adjustable rails front & rear
• Colour: Black RAL9004
• Weight: ~88 kg

What’s Included – Ready to Go

• 1 × Fully assembled 22U cabinet
• 4 × Pre-wired 240 V cooling fans
• 1 × 6-way vertical Australian power rail
• 2 × Fixed shelves
• 4 × Levelling feet + 4 × castors (2 locking)
• 2 × Keys (front door & side panels)
• Earthing kit & all mounting hardware
