Description

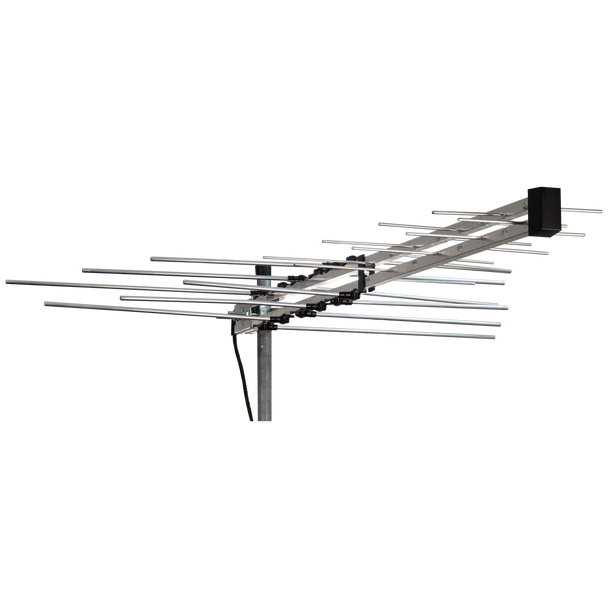

The Metropolitan Log Periodic UHF/VHF Combination Antenna (01ACLP34F/POLY Poly Bag) is a compact dual-band performer for urban digital TV excellence, encompassing VHF Band 3 (channels 6-12) and UHF Band 4 (channels 28-35) via 14+14 elements with 12dBi VHF and 12.5dBi UHF max gain, and >20dB front-to-back ratios to block noise effectively. Offering horizontal/vertical mounting versatility, folding for easy storage, and straightforward F-Type fittings with pre-fitted U-bolts/clamps, this silver aluminum antenna with UV-stabilized plastics stands up to tough weather. It includes a rubber boot for F-connector safeguarding and fitted V-block & U-bolt, packaged in a poly bag with label for efficient shipping and storage—supported by a 3-year warranty for hassle-free metropolitan HDTV reception.
Features:
- Dual-Band Log Periodic Coverage: 14+14 elements cover VHF Band 3 (Ch 6-12) and UHF Band 4 (Ch 28-35) with 12dBi VHF and 12.5dBi UHF gain for robust digital signals.
- Horizontal/Vertical Mounting: Flexible setup with elevation/tilt bracket for tailored signal optimization.

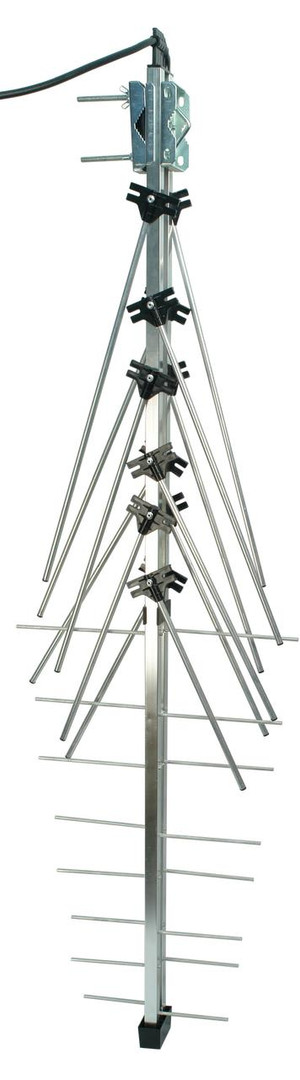

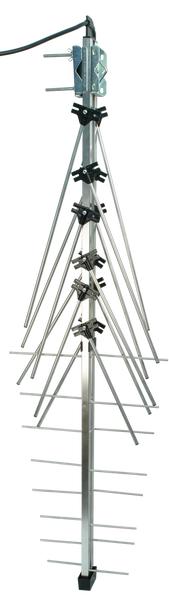

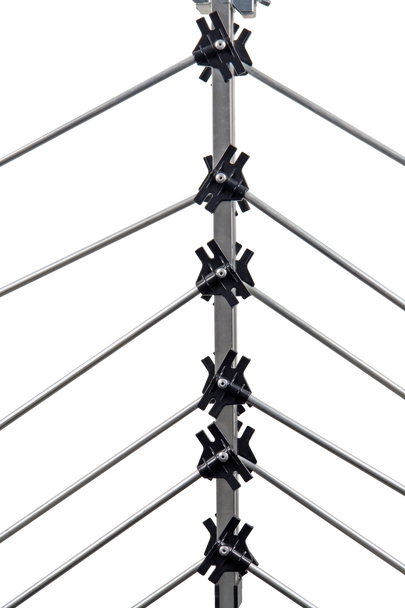

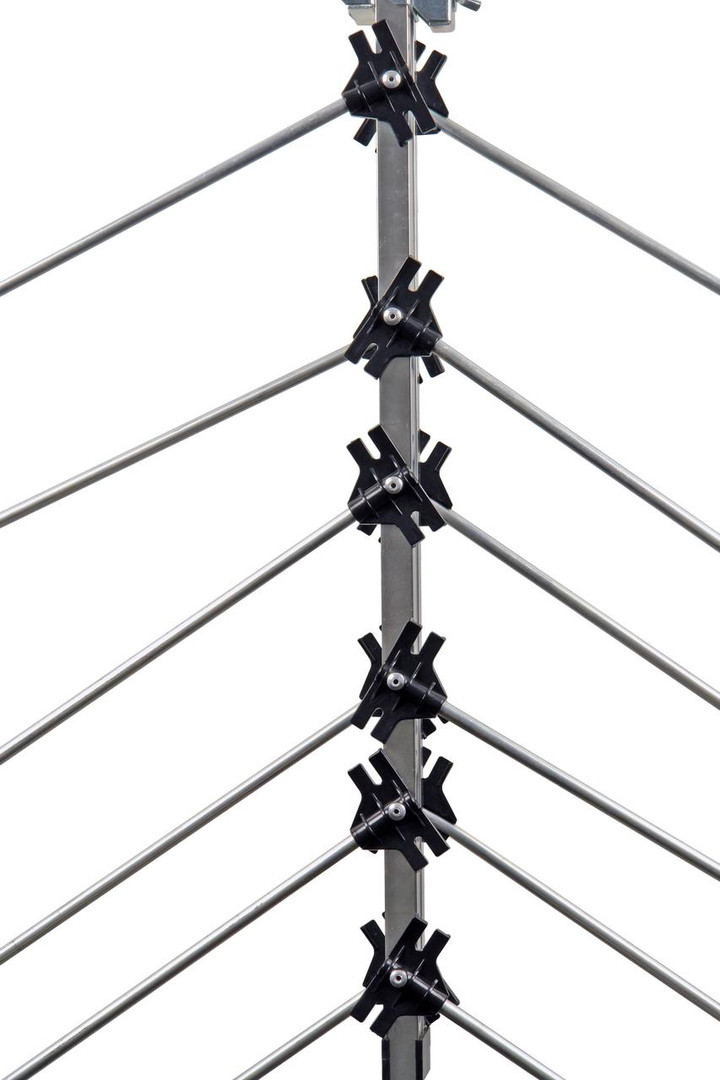

- Folding Design for Storage: Space-saving foldable build facilitates transport and installer convenience.
- User-Friendly F-Type Fittings: Effortless coaxial connections for reliable, low-loss performance.
- Pre-Fitted U-Bolts and Clamps: Integrated hardware for rapid, secure mounting without extra tools.
- UV-Stabilized Durability: Aluminum boom/elements and UV plastics combat corrosion in outdoor exposure.
- Superior Interference Rejection: >20dB front-to-back ratio across bands for pristine HDTV quality.
- Full Accessory Set: Rubber boot for F-connector protection and fitted V-block & U-bolt provided.
- 3-Year Warranty: Robust assurance for enduring metropolitan TV applications.



Details
| Antenna Category: | Combination UHF/VHF |
| Antenna Band: | Band 3 (Channels 6 - 12) & Band 4 (Channels 28 - 35) |
| Antenna Type: | Log Periodic |
| Antenna Elements: | 28 |
| Antenna Filter: | N/A |
| Antenna Max Gain: | UHF 12.5dBi & VHF 12dBi |
| Antenna Front to Back Ratio: | UHF >20dB & VHF >20dB |
| Antenna Materials: | Aluminium, UV Stabilised Plastics |
| Colour: | Silver |

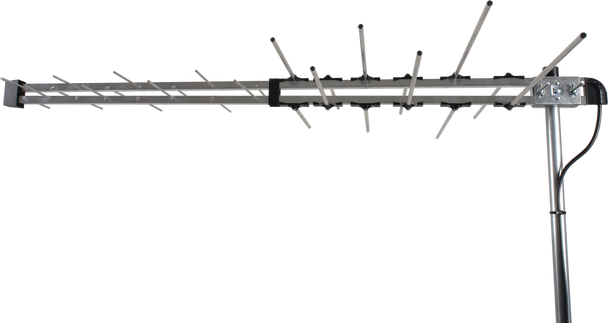

| Antenna Dimensions: | 1100mm x 865mm x 70mm (L x W x H) |
| Included Accessories: | Rubber Boot (For F Connector), V Block & U Bolt fitted to antenna |
| Unit Packaging: | Poly Bag with Label |
| Warranty: | 3 Year |
| Carton Quantity: | 10 |
| Pallet Quantity: | 120 |
| Product Information Sheet - V1: | |
| Product Information Sheet - V2: |
