Blustream 1080p HD Video over IP Receiver via 100Mbps Network

Blustream 1080p HD Video over IP Receiver via 100Mbps Network

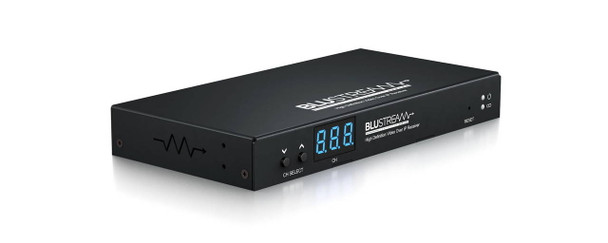

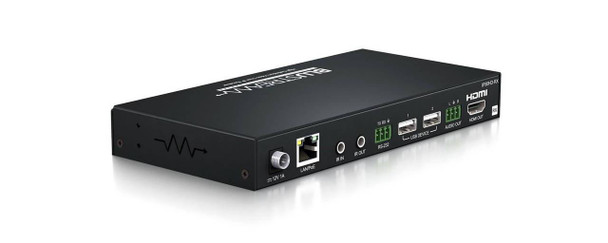

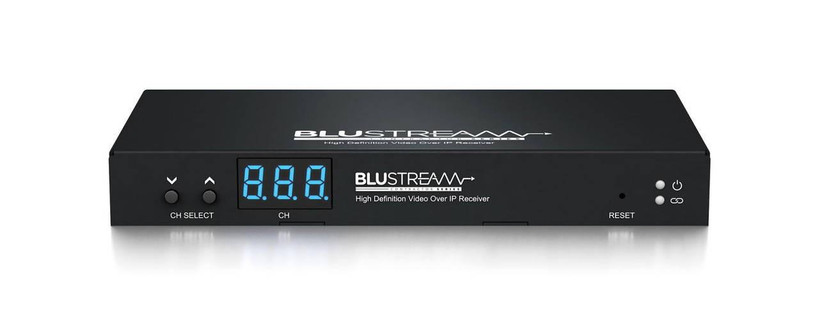

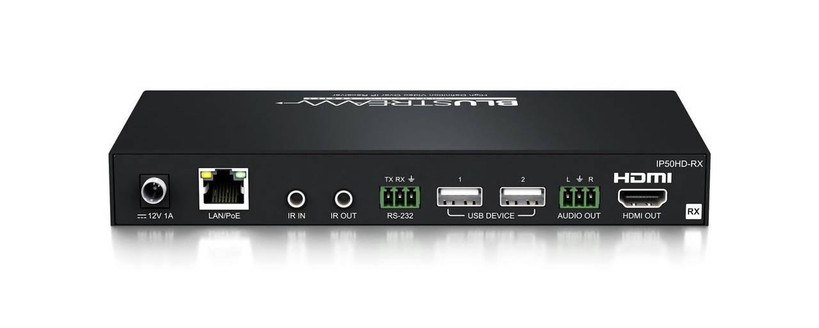

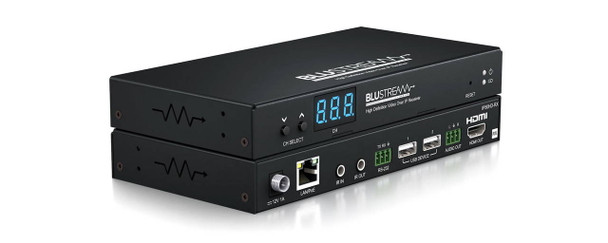

Our Contractor Series HD distribution platform allows distribution of AV and control signals over a 100Mbps network. The IP50HD-RX is an industry leading 1080p HDMI video scaling receiver that, using H.265 compression technology, delivers HDMI, Bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard network architecture. The receiver can be powered via PoE from the network switch or locally should the switch not support PoE. With multiple configuration options available the Multicast HD solution is ideal for both commercial and residential installations.

Features:

• Advanced HD video, control and KVM over network infrastructure
• Extends HDMI up to a distance of 100m over a single CAT cable
• Supports unicast transmission over unmanaged networks
• Supports multicast transmission for large managed networks
• In-built video scaler to allow for inclusion of displays with differing resolution capabilities (1080p max)
• Supports up to 1080p @ 60Hz video output
• Supports PCM 2.0 channel audio only
• Advanced signal management for independent routing of IR, RS-232, USB/KVM, and video/audio
• PoE (Power over Ethernet) to power Blustream products from PoE switch
• HDCP1.4 compliant with advanced EDID management
• Analogue L/R audio breakout
• Local 12V 1A power supply should Ethernet switch not support PoE (not included)
• Features 2 operational modes:
  • Matrix distribution (requires 100Mbps network switch)
  • One-to-one HDMI extender (no network switch required)

In the box:

• 1 x IP50HD-RX
• 1 x IR Receiver
• 1 x IR Emitter
• 1 x Mounting Kit
• 4 x Rubber Feet
