Description

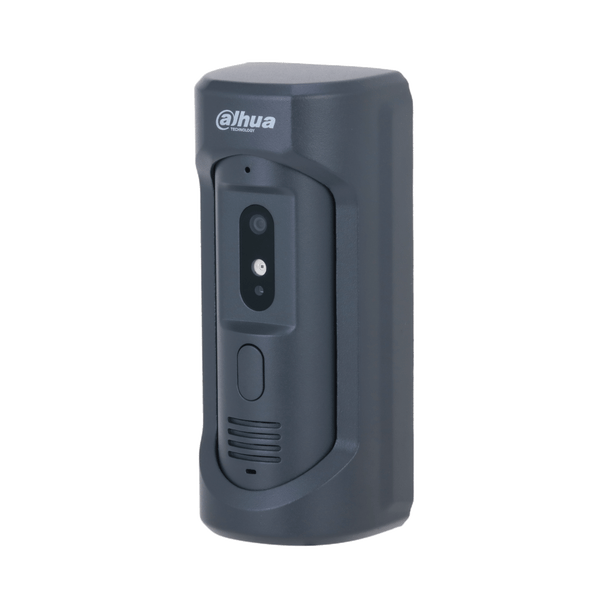

Dahua IP Villa Door Station
- HD CMOS camera.
- Zinc alloy panel, IP65 and IK10 rated.
- ICR night vision and voice prompt.
- Video and audio messaging.
- TCP/IP, and SIP.
- Surface mounted.
Specifications
System Information
| Main Processor | Embedded Processor |
|---|---|
| Button Type | Mechanical |
| Interoperability | ONVIF; CGI |
| Network Protocol | RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF |
Basic Information
| Camera | 1/2.8" 2-MP CMOS HD Camera |
|---|---|
| Field of View | H: 80°; V: 40°; D: 90°WDR 120 dB |
| Noise Reduction | 3D NR; 2D NR |
| Video Compression | H.264; H.265 |
| Video Resolution | Main stream: 720p, WVGA, D1, and CIF; Sub stream: 1080p, WVGA, D1, QVGA, and CIF |
| Video Frame Rate | PAL: 25 fps; NTSC: 30 fps |
| Video Bit Rate | 768 kbps–8 Mbps |
| Light Compensation | Auto IR |
| Day/Night | Auto(ICR)/Color/B/W; Color/B/W |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression/digital noise reduction; Echo suppression; Digital noise reduction |
| Audio Bit Rate | 16 kHz, 16 bit |
Function Information
| Communication Mode | Full digital |
|---|---|
| Unlock Mode | Remote |
| Leave Videos | Yes (SD card inserted in VTH is needed) |
| Web Configuration | Yes |
Performance Information
| Casing | Zinc alloy |
|---|
Port Information
| RS-485 | 1 |
|---|---|
| Alarm Input | 1 |
| Exit Button | 1 |
| Lock Control | 1 |
| Network Port | 1 × RJ-45 10/100 Mbps Ethernet port |
Alarm Information
| Tamper Alarm | Yes |
|---|
General Information
| Appearance color | Grey |
|---|---|
| Power Supply | 12 VDC, 1 A; Standard PoE |
| Power Adapter | Optional |
| Installation | Surface Mount |
| Certifications | CE; FCC |
| Accessory | Alarm power ribbon cable, rain cover |
| Product Dimensions | 163.0 mm × 73.0 mm × 55.0 mm (6.42" × 2.87" × 2.17") |
| Protection | IP65 IK10 |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Operating Altitude | 0 m–3,000 m (0 ft–9,842.51 ft) |
| Power Consumption | ≤ 2.5 W (standby), ≤ 5 W (working) |
| Gross Weight | 0.8 kg (1.76 lb) |
| Net Weight | 0.3 kg (0.66 lb) |
