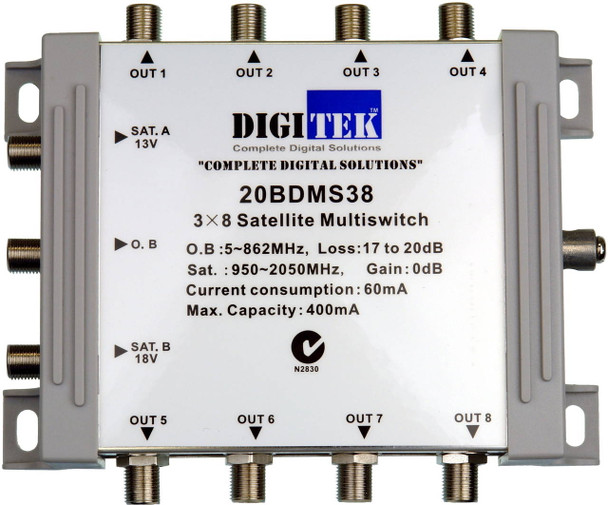

Digitek 3 Input 8 Way Multiswitch

The Digitek 3x8 Satellite Multiswitch is a high-quality distribution solution designed for reliable satellite and off-air TV signal management. With 3 inputs and 8 outputs, it allows multiple receivers to connect to one satellite dish and antenna system, ensuring stable and efficient signal distribution.

Supporting off-air frequencies from 5–862MHz with a loss range of 17–20dB, and satellite frequencies from 950–2050MHz with 0dB gain, this multiswitch delivers consistent performance for both satellite and terrestrial signals. It features a current consumption of 60mA, with a maximum capacity of 400mA, making it energy-efficient and reliable.

Engineered for compatibility with Foxtel systems, the Digitek 3x8 Satellite Multiswitch is Foxtel Approved (IPL #F10553), ensuring compliance and dependable performance.

Features:

• 3 inputs and 8 outputs for multiple receiver connections
• Off-air frequency range: 5 ~ 862MHz (loss: 17–20dB)
• Satellite frequency range: 950 ~ 2050MHz (gain: 0dB)
• Current consumption: 60mA, maximum capacity: 400mA
• SAT.A: 13V, O.B, SAT.B: 18V
• Compact, reliable, and energy-efficient design
• Foxtel Approved IPL #F10553
