Description

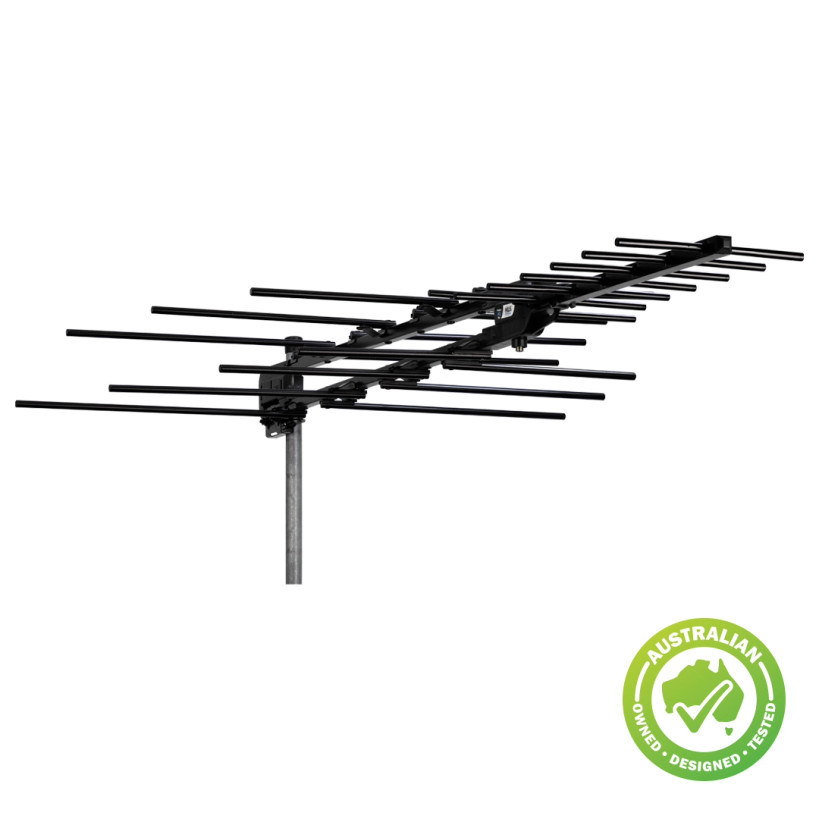

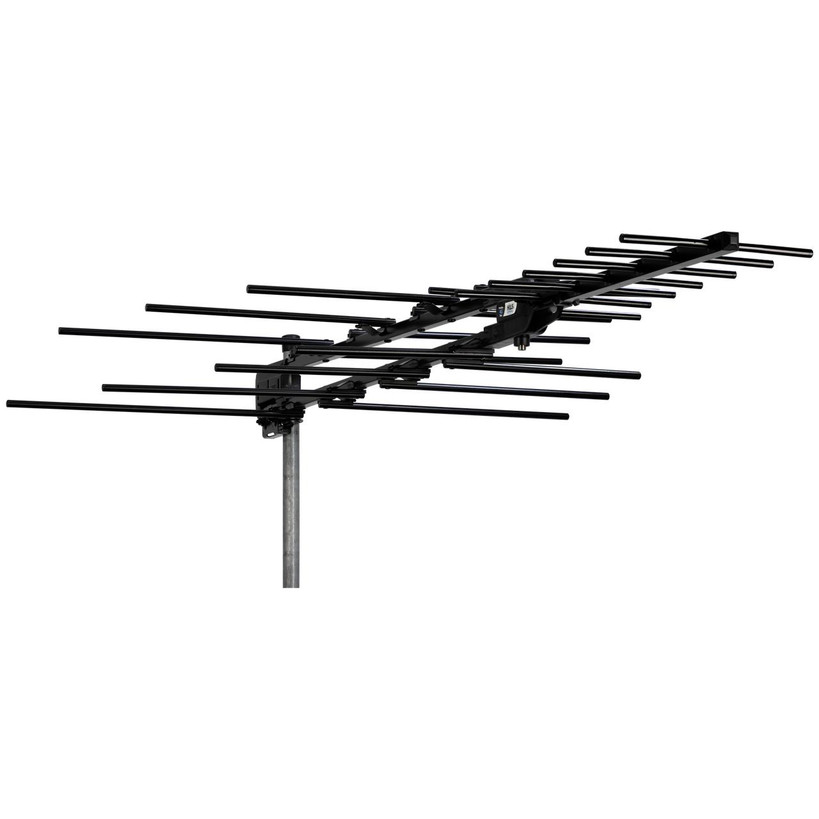

Hills Antenna 01TBUV7F-4G Tru-Band Folding 7-Element UHF/VHF Black Arrow 4G Antenna is a brand new addition to the best-selling Tru-Band range of antennas. Tru-Band is a revolutionary range of antennas specifically designed for the digital-only TV environment in Australian Capital Cities and certain regional areas serviced by VHF or VHF/UHF transmitters. The Tru-Band Black Arrow is the Gold Standard, providing the gain required for all prime locations, and is built to deliver a lifetime of trouble-free viewing. This new edition of the Tru-Band Antenna now features an individually tuned and optimised RF filter circuit. Specifically designed with shielded inductors, to better withstand any potential 4G/5G transmission interference from the growing number of mobile towers. The Black Arrow was designed with your home in mind. Combining it’s sleek black design with prime reception qualities, this model will ensure you receive the picture you deserve, without compromising the aesthetic of your home. The antenna’s black finish allows it to blends in and becomes unnoticeable on the roof making it a must for all modern homes. Designed and manufactured in Australia with unmatched quality and a Lifetime Warranty, you simply cannot go wrong with this antenna. It is suitable for both domestic and commercial applications. For the best look, combine with the BC2844-BLK Black Tripod Mount or FB602406B Black Fascia Bracket.
Features:
- Designed for the precise digital frequency bands for true HD performance
- Boomlock™ manufacturing technology developed and patented by Hills

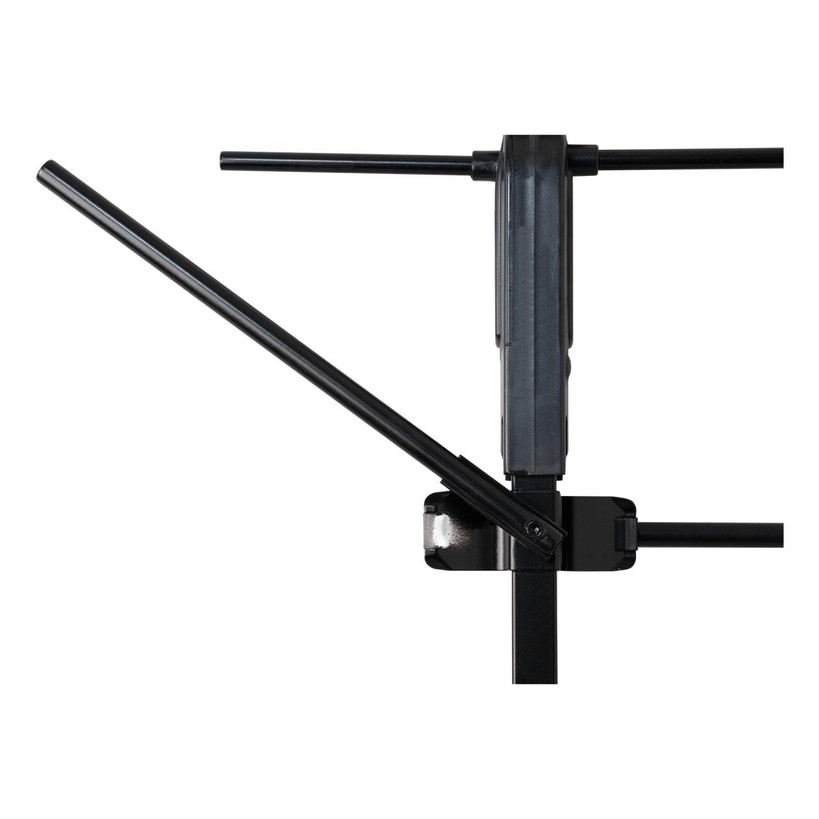

- Unique Folding Element design
- Matched balun for best MER performance and lowest insertion loss
- Ultrasonically sealed balun prevents water ingress for maximum reliability
- Strong mechanical contruction lightweight and compact
- Made from aluminium for superior corrosion resistance
- Designed for Australian channels
- Channels 6-12 and 28-38
- 4G+ filter included
- Lifetime Manufacturer Warranty included
Details
Antenna Category: |
UHF/VHF
|
Antenna Band: |
Band 3 (Ch 6-12) & Band 4 (Ch 28-38)
|
Antenna Type: |
Yagi/Log periodic
|
Antenna Elements: |
7 UHF & 7 VHF (folding)
|
Antenna Filter: |
4G+
|
Antenna Max Gain: |
UHF 8-10dBi & VHF 6-8dBi
|
Antenna Front to Back Ratio: |
UHF 16-20dB & VHF 13-15dB
|
Antenna Materials: |
Aluminium, UV Stabilished Plastics
|
Colour: |
Black
|
Antenna Dimensions: |
1425(L) x 850(W) x 85(H) mm
|
Included Accessories: |
Rubber Boot, V Block & U Bolt (fitted)
|
Unit Packaging: |
Display Box
|
Warranty: |
Lifetime Warranty
|
Carton Quantity: |
-
|
Pallet Quantity: |
-
|
Product Information Sheet: |
|
Antenna Guide: |
|
Sell Sheet: |
