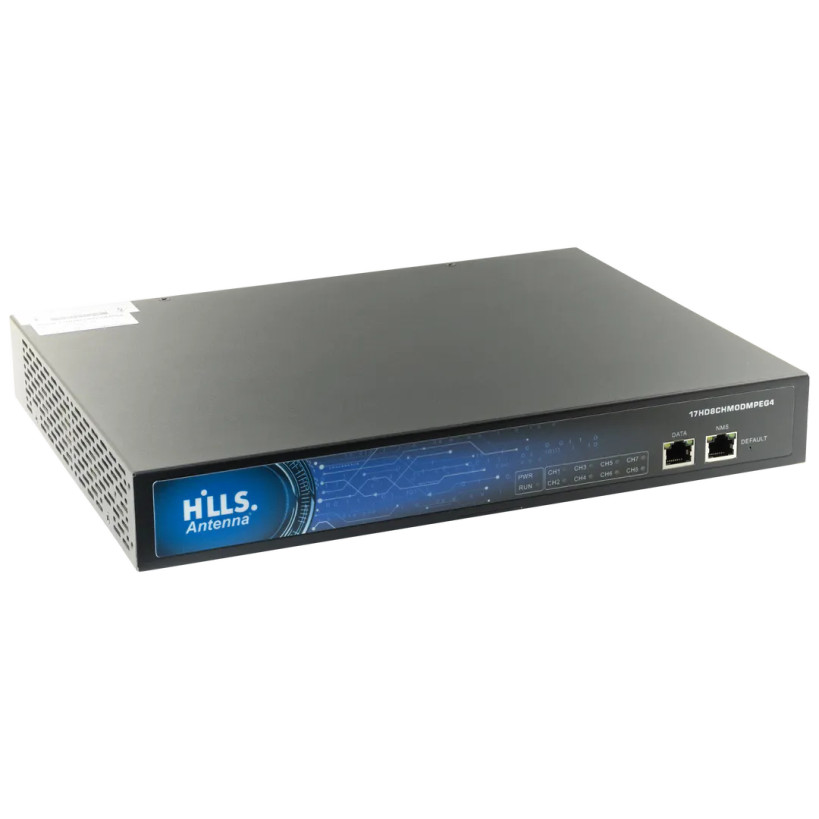

Hills Antenna 8 HDMI to 4 Channel DVB-T Digital Modulator – H.264

The Hills Antenna 17HD8CHMODMPEG4 8 HDMI to 4 Channel Modulator is a high-performance commercial HDMI to DVB-T solution designed for distributing up to 8 HDMI sources across existing RF coaxial networks. Featuring advanced MPEG4 H.264 video encoding, this professional IPTV modulator provides efficient Full HD signal distribution for hospitality venues, aged care facilities, educational institutions, sports clubs, and digital signage installations.

With support for resolutions up to 1080p@60Hz, the Hills Antenna HDMI modulator converts HDMI video signals into four stable DVB-T RF output channels for reliable television broadcasting throughout commercial environments. Its integrated Web GUI interface enables fast and intuitive configuration, stream management, and channel setup directly through a web browser.

The unit supports advanced transport stream functionality including CA PID filtering, PSI/SI editing, remapping, and compatibility with UDP, RTP, MPTS and SPTS streaming protocols. The built-in RF TEST -20dB port allows installers to quickly verify output signals during commissioning and maintenance.

Designed for flexible commercial deployment, the compact 1RU form factor supports desktop, wall mount and 19-inch rack mounting configurations. With compatibility across multiple DVB-T bandwidths and modulation schemes, this modulator integrates seamlessly into Australian MATV and RF distribution systems.

If you require backward compatibility with MPEG2 systems, view the alternative model here:
17HD8CHMODMPEG2/4

Key Features:

• 8 HDMI inputs with 4 DVB-T RF output channels
• MPEG4 H.264 video encoding technology
• MPEG and AAC audio encoding support
• Supports video resolutions from 480i to 1080p@60Hz
• Commercial IPTV and RF distribution solution
• Easy setup via built-in Web GUI
• Supports UDP, RTP, MPTS and SPTS transport streams
• Advanced PSI/SI editing and PID remapping
• RF TEST -20dB monitoring output included
• Supports QPSK, 16QAM and 64QAM modulation
• Compatible with 6MHz, 7MHz and 8MHz bandwidths
• Desktop, wall mount and rack mount installation
• Compact and energy-efficient commercial design
• Ideal for hospitality, education and digital signage applications

What's in the Box?

• 1x Modulator
• 2x Mounting Rack Ears
• 1x Power Cord with 3-Pin AU Plug
• 4x Mounting Screws
• 1x 100-240V AC to 12V DC 7A Power Supply
• 1x Manual

Why Choose Hills Antenna Modulators?

Hills Antenna is a trusted Australian brand known for high-quality TV and antenna distribution equipment. These professional modulators offer reliable performance, easy setup via web interface, and full compatibility with Australian DVB-T systems.
