Description
The Hills Antenna BC85283 BNC Female Connector - Crimp is a precision made part using Nickel Plated Brass. It is suitable for use with our RG58 Mini (BC85208) cable.
Specifications
Impedance: 50Ω
Frequency Range: DC ~ 4GHz
VSWR: ≤1.30
Centre Contact Resistance: ≤1.5mΩ
Outer Contact Resistance: ≤1mΩ
Withstanding Voltage: 1500V r.m.s
Working Voltage: <500V r.m.s
Insulation Resistance: ≥5000MΩ
Center Conductor Retention Force: ≥0.57N
Insertion Loss: ≤0.20dB @ 3GHz
Temperature Range: -55°C to 155°C
RoHS Complaint: YES
Durability: ≥500 cycles
View AllClose
Frequency Range: DC ~ 4GHz
VSWR: ≤1.30
Centre Contact Resistance: ≤1.5mΩ
Outer Contact Resistance: ≤1mΩ
Withstanding Voltage: 1500V r.m.s
Working Voltage: <500V r.m.s
Insulation Resistance: ≥5000MΩ
Center Conductor Retention Force: ≥0.57N
Insertion Loss: ≤0.20dB @ 3GHz
Temperature Range: -55°C to 155°C
RoHS Complaint: YES
Durability: ≥500 cycles
Details
Connector Type: |
BNC Female
|
Cable Type: |
RG58 Mini Coax
|
Connection Type: |
Crimp
|
Resistance: |
50 Ohm
|
Materials: |
Nickel Plated Body
|

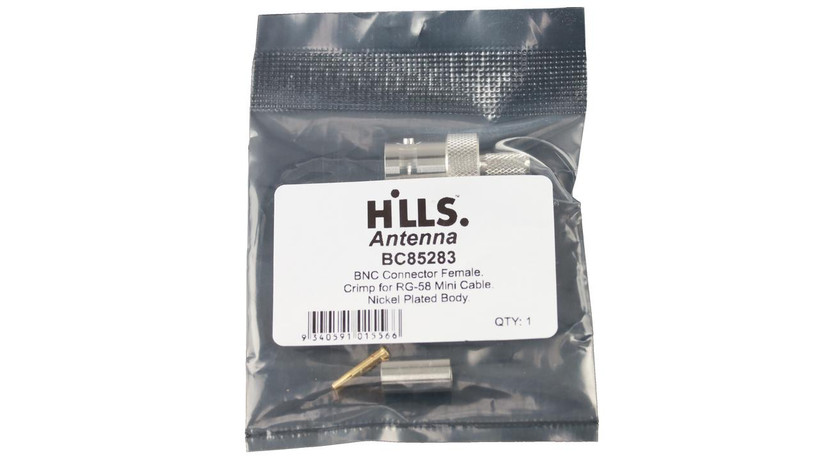

Packaging: |
Poly Bag with Label
|
Warranty: |
1 Year
|
Carton Quantity: |
-
|
