Hills Antenna UHF/SO-239 Female to UHF/SO-239 Female Adaptor - Nickel Plated Body

SKU:
BC85313
UPC:
9340591015290
  • Hills Antenna UHF/SO-239 Female to UHF/SO-239 Female Adaptor - Nickel Plated Body
  • Hills Antenna UHF/SO-239 Female to UHF/SO-239 Female Adaptor - Nickel Plated Body
  • Hills Antenna UHF/SO-239 Female to UHF/SO-239 Female Adaptor - Nickel Plated Body
Log in for pricing

Description

The Hills Antenna BC85313 UHF/SO-239 Female to UHF/SO-239 Female straight-bodied adaptor is a regular coaxial component that is created to link a Female UHF/SO-239 Type interface to a Female UHF/SO-239 Type interface. This particular model is intended to provide support for an expanded frequency range up to 300 MHz. The adaptor is made from precision-machined Nickel plated brass and features a standard UHF/SO-239 Female connector interface on one end that is directly connected to an UHF/SO-239 Female connector interface.



Features:
  • UHF/SO-239 Female to UHF/SO-239 Female Adaptor
  • 50 Ohm impedance
  • Supports frequencies up to 300 MHz
View AllClose

Specifications

Impedance: 50Ω
Frequency Range: DC ~ 300 MHz
Working Voltage: <750V r.m.s
Withstanding Voltage: 2000V r.m.s
Center Contact Resistance: ≤5mΩ
Outer Contact Resistance: ≤5mΩ
Insulation Resistance: ≥5000MΩ
VSWR: ≤1.30
Durability: ≥500 cycles
Temperature Range: -55°C to 155°C
View AllClose

Details

Adaptor Type:
50 Ohm RF
Adaptor Side 1:
UHF/SO-239 Female
Adaptor Side 2:
UHF/SO-239 Female
Resistance:
50 Ohm
Materials:
Nickel Plated Body

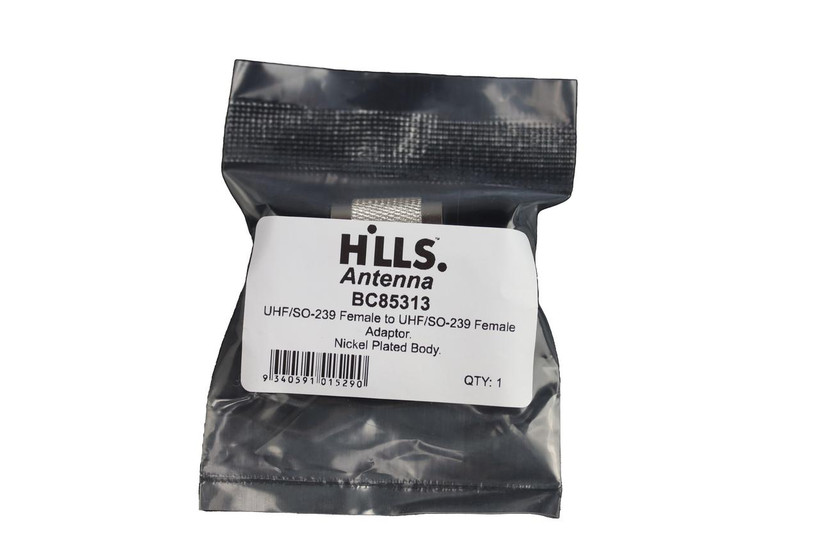

Packaging:
Poly Bag with Label
Warranty:
1 Year
Carton Quantity:
-
View AllClose
