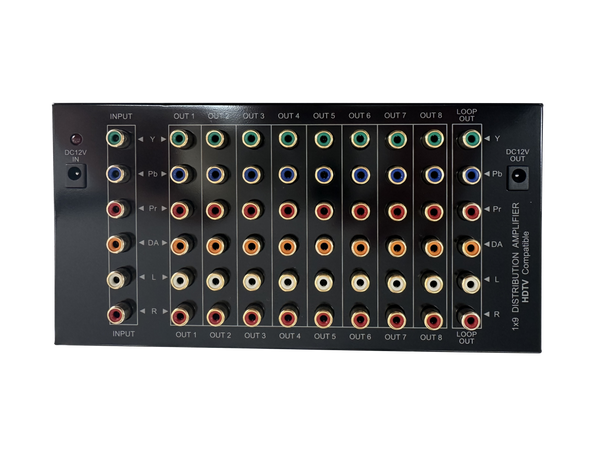

PRO1184 1X9HDTV Distribution Amplifier

PRO2 HDTV Distribution Amplifier with loop out

Features:

• 1 IN x 9 OUT
• Loop out function allows you to connect an additional 10 PRO1184 amps!
• 12V DC IN (power supply included)
• 12V DC output (for loop out)
• Inputs:
  • YPbPr/ YCbCr/ RGB x 1
  • Coaxial digital audio x 1
  • Stereo audio left & right x 1
• Outputs:
  • YPbPr/ YCbCr/ RGB x 9
  • Coaxial digital audio x 9
  • Stereo audio left & right x 9
• Power status LED
• Dimensions: 245 (W) x 115 (D) x 25 (H) mm
• Mounting holes: 235 (W) x 85 (H) mm
• 4x mounting screws included
