Reliance XR 4 Zone Alarm KIT

SKU:
29RRELIANCE-XR-K2-BU
MPN:
RELIANCE-XR-K2-BU
Log in for pricing

Description

Reliance XR 4-Zone Alarm Kit

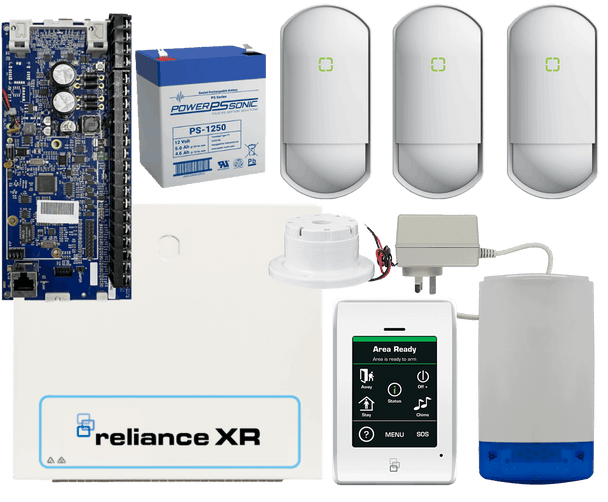

Kit Includes:

  • 1 x Reliance XR PCB w/ metal enclosure.
  • 1 x Reliance XR Touch.
  • 3 x Optex Flip-X PIR.
  • 1 x Reliance NX Combo Siren & Strobe.
  • 1 x Secor Tophat Piezo.
  • 1 x Powersonic 12VDC 5AH Battery.
  • 1 x Datamaster 16VAC 1.5A Powerpack.
View AllClose

Specifications

Systems

Panel Type Hybrid
Max No. of Modules 32

Inputs

Onboard Physical Inputs 4
Onboard Inputs total (Zone Doubling Required) 8
Max No. of Inputs Incl. Expanders 8 hardwired + 16 wireless
Additional Inputs 1: box tamper
EOL Resistor Values 20 Ω (2-wire smoke)
3.3 kΩ, 4.1 kΩ, 4.7 kΩ (alarm)
3.74 kΩ, 6.98 kΩ (zone doubling)

Wireless

Max No. of Wireless Transmitters 16
Receiver Type Onboard - 433 MHz Legacy + LoNa 63 bit and 80plus compatible.

Outputs

Onboard Programmable Outputs 3
Additional Onboard Outputs Siren/Bell
Max No. of Outputs 32

System Capacity

Areas 4
Users 40
User Permissions 128
Max Keyfobs 8
Max Tablets 4
Max Keypads 16

Communication

Ethernet Connection Specification Supported Standard: IEEE 802.3u
Speed 10BASE-T or 100BASE-TX
Duplex Half-duplex and full-duplex
Cabling FTP (foiled twisted pair) Cat 5e cable or better
Databus Type Reliance XR, Reliance, NetworX (NX)
Reliance XR Bus Type: 4 wire RS485 bus High common mode tolerance (25V)
Range: 800m
Recommended Cable: Belden 7201A, 3107A, 9842, or exact equivalent 2 pair twisted shielded cable designed for RS485 (refer to installation manual)

Event Log

Alarm Event Log 1024

Mains Power Specifications

Mains Input Voltage 230 VAC +10%, −15%, 50 Hz ±10%
Transformer Output 16.3 VAC 24 VA / 16.3 VAC 48 VA
Current consumption at 230 VAC 240 mA max

Power Supply Specifications

Power Supply Voltage 13.8 VDC +/- 0.4 V
Power Supply Current 2 A max. at 13.8 VDC +/- 0.4 V
Main Board Consumption 130 mA at 13.8 VDC +/- 0.4 V
Maximum System Current Available 2000 mA at 13.8 VDC +/- 0.4 V
Auxiliary Power Output (AUX. Power) 13.8 VDC +/- 0.2 V, 1 A max.
Battery Power Output (BAT) 13.8 VDC +/- 0.2 V, 350 mA max.
Battery Type Lead acid rechargeable 7.2 Ah 12 V nominal
Minimum Voltage 9.45 VDC
Maximum Voltage at Power Supply, Auxiliary Power Output, and Battery Power Output 14.5 VDC
Battery Low Condition From 11.3 VDC to 11.8 VDC
Battery Disconnect Voltage 9.77 VDC
Maximum Ripple Voltage V, p-p 200 mV typical, 400 mV max

Physical (with Enclosure)

Physical Dimension 214 x 232 x 94mm (Enclosure only)
359 x 232 x 94mm (with Antenna)
Shipping Weight 1435g
Colour Beige
Material Metal

Physical (Board Only)

Physical Dimension 192 x 89 x 25 mm
Shipping Weight 155g

Environment

Storage Temperature −10°C to +55°C
Relative Humidity 95% non-condensing
IP Protection Grade (in Enclosure) IP30

Regulatory

ANZ Compliance CE, RCM
Overseas EN50131 Grade 2, INCERT
View AllClose
