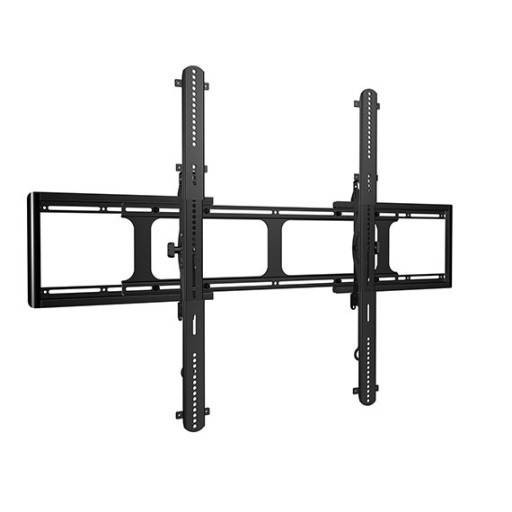

SANUS VXT7-B2 40" - 110" Medium-Extra Large Universal LCD Bracket - 136KG

SKU:: 22SVXT7-B2
UPC:
MPN:

Frequently bought together:

Product

Quantity

Price

(Ex GST)

Subtotal

(Ex GST)

Description
Specifications
Details

Description

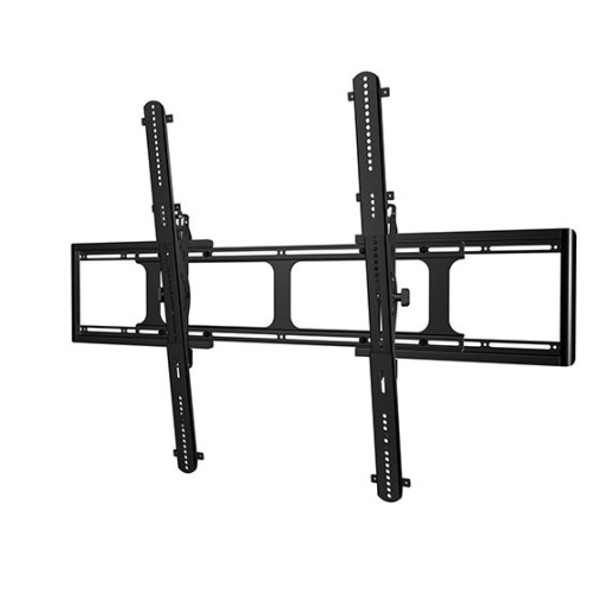

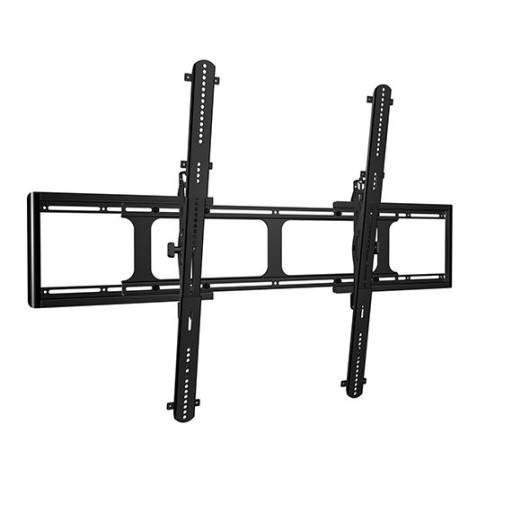

SANUS VXT7 Tilting TV Mount for 65"-140" TVs

The VXT7 features an adjustable design that expands to offer a custom fit for most TVs, up to 300 lbs. Positions TV just 2.5” from the wall for a clean, flush appearance. ProSet Plus™ post install height and level adjustments allow for up to one full inch of height and level adjustment. Virtual Axis™ Fingertip tilt allows for easy TV adjustments and quick access to cables.

Features:

Conceal exposed hardware with decorative cover
Easily adjust your TV without tools
Hardware included
Heavy-gauge steel construction
Leveling adjustments allow TV to be perfectly positioned after hanging
Tilt your TV for perfect viewing from the couch or floor

View AllClose

Specifications

Product Width: 33.43" (84.91 cm)
Product Height: 32.49" (82.52 cm)
Product Depth: 2.42" (6.15 cm)
Product Weight: 10.50 lbs (4.76 kg)
TV Size Range: 65"–140" (165.10–355.60 cm)
Maximum TV Weight: 300 lbs (136.08 kg)
Universal Mounting: Yes (200 × 200 mm to 1100 × 800 mm)
Supported VESA Patterns:
- 200 mm: 200 / 300 / 400
- 300 mm: 200 / 300 / 400
- 400 mm: 200 / 300 / 400 / 500 / 600
- 500 mm: 200 / 300 / 400 / 500 / 600
- 600 mm: 200 / 300 / 400 / 500 / 600 / 700 / 800
- 700 mm: 200 / 300 / 400 / 500 / 600 / 700
- 800 mm: 200 / 400 / 500 / 600 / 800
- 900 mm: 600 / 800
- 1000 mm: 400 / 800
Tilt: +7° / -10°

View AllClose

Details

Product Information Sheet:	VIEW PDF
Instruction Manual:	VIEW PDF
Technical Drawing:	VIEW PDF

View AllClose
