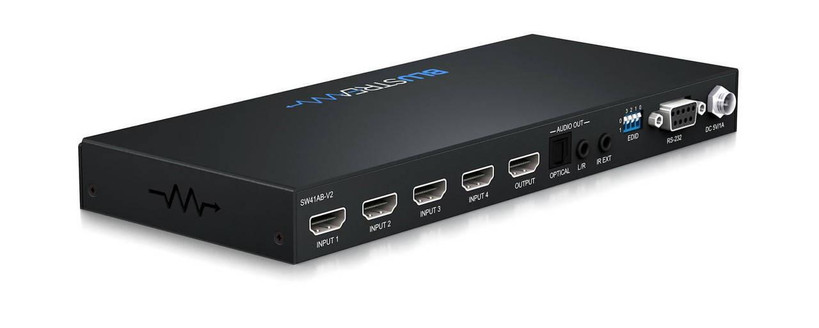

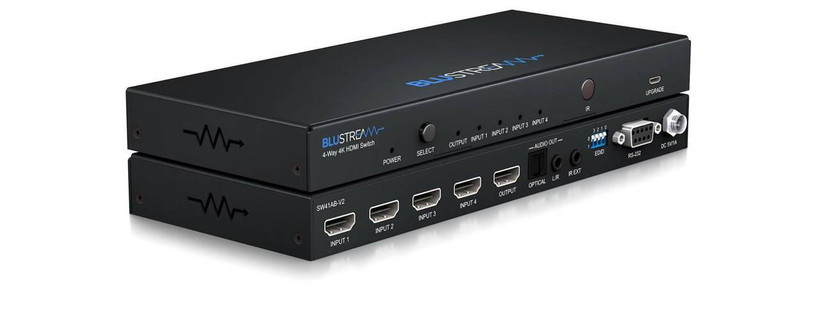

Blustream 4-Way 4K HDMI Switch

SKU:
17BSSW41AB-V2
  • Blustream 4-Way 4K HDMI Switch
  • Blustream 4-Way 4K HDMI Switch
  • Blustream 4-Way 4K HDMI Switch
  • Blustream 4-Way 4K HDMI Switch
  • Blustream 4-Way 4K HDMI Switch
  • Blustream 4-Way 4K HDMI Switch
Log in for pricing

Description

Blustream 4-Way 4K HDMI Switch - SW41AB-V2 is a 4-Way HDMI switch with integrated audio breakout and the ability to auto-switch. The switch supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4.

Features:

  • Features 4x HDMI inputs which can be switched to single HDMI output
  • Supports full HDMI 2.0 specification 4K UHD video (4K @60Hz 4:4:4)
  • HDCP 2.2 compliant
  • Supports 3D signal display
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
  • CEC (Consumer Electronic Command) is blocked from the inputs to the end sink / display
  • Control via front panel, RS-232 and IR
  • Advanced EDID management

In the box:

  • 1 x SW41AB-V2
  • 1 x SW41-REMOTE
  • 1 x 5V/2A DC power supply
  • 1 x IR receiver
  • 1 x User manual
View AllClose

Specifications

• Video Input Connectors: 4x HDMI Type A
• Video Output Connectors: 1x HDMI Type A
• Audio Output Connectors:1x RCA (SPDIF) & 1x Analogue audio L/R (3.5mm stereo Jack)
• IR Input Ports: 1x 3.5mm stereo Jack
• RS-232 serial port: 1x DB-9, female
• Casing Dimensions (W x H x D): 196mm x 41mm x 94mm
• Dimensions including connections (W x H x D): 196mm x 41mm x 104mm
• Shipping Weight: 0.9kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature : -4°F to 140°F (-20°C to 60°C)
• Power Supply: 5V/2A DC
View AllClose

Details

Product Information Sheet:
User Manual:
Schematic Drawing:
