Description

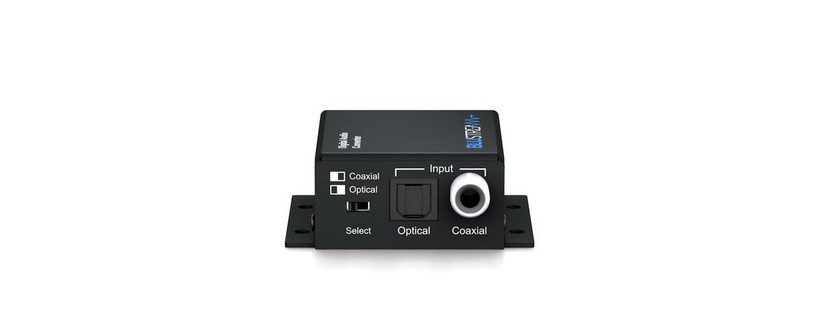

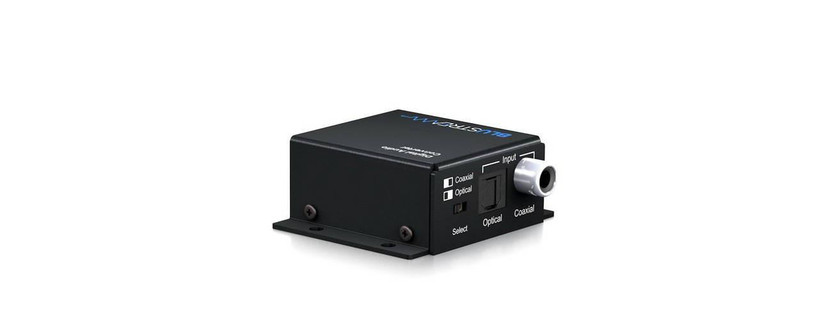

Blustream Digital Audio Converter - DIG11AU is designed to convert digital audio signals from coaxial or optical inputs.The outputs are simultaneous so audio can be distributed to multiple locations.
The DIG11AU supports 192kHz sample rates for enhanced sound reproduction.
Features:
- Converts digital audio formats (optical to optical and coax, or, coax to optical or coax)
- Both optical and coaxial digital outputs work concurrently regardless of input type selected
- Supports sample rates 32kHz, 44.1kHz, 48kHz, 96kHz & 192kHz up to 24-bit resolution
- Plug-and-play solution
In the box:
- 1 x DIG11AU
- 1 x 5V/1A DC Power Supply
- 1 x User Manual
Specifications
• Audio Input Connectors: 1 x Optical (SPDIF) & 1 x Coax RCA (S/PDIF)
• Output Connectors: 1 x Optical (SPDIF) & 1 x Coax RCA (S/PDIF)
• Product Dimensions (W x D x H): 65 x 60 x 25mm (with wings & connections)
• Product Dimensions (W x D x H): 50 x 45 x 25mm (without wings & connections)
• Product Weight: 0.1kg (excluding accessories)
• Carton / Box Dimensions (W x D x H): 165 x 110 x 85mm
• Shipping Weight: 0.3kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: 5V/1A DC, barrel type connector
• Wall Mounting Wings Included
View AllClose
• Output Connectors: 1 x Optical (SPDIF) & 1 x Coax RCA (S/PDIF)
• Product Dimensions (W x D x H): 65 x 60 x 25mm (with wings & connections)
• Product Dimensions (W x D x H): 50 x 45 x 25mm (without wings & connections)
• Product Weight: 0.1kg (excluding accessories)
• Carton / Box Dimensions (W x D x H): 165 x 110 x 85mm
• Shipping Weight: 0.3kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: 5V/1A DC, barrel type connector
• Wall Mounting Wings Included
