Blustream Digital Audio Over CAT

SKU:
17BSCAT100AU
  • Blustream Digital Audio Over CAT
  • Blustream Digital Audio Over CAT
  • Blustream Digital Audio Over CAT
  • Blustream Digital Audio Over CAT
  • Blustream Digital Audio Over CAT
  • Blustream Digital Audio Over CAT
Log in for pricing

Description

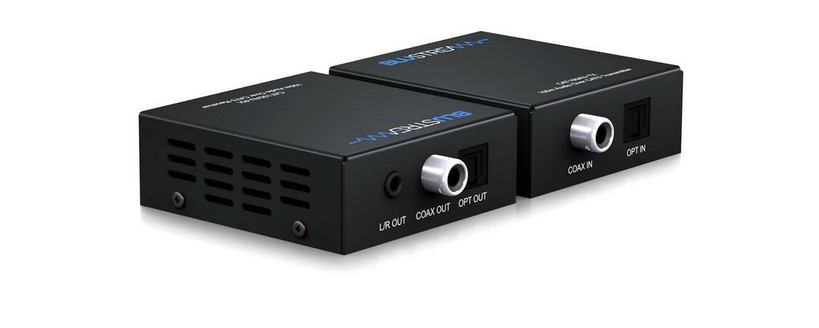

Blustream Digital Audio Over CAT - CAT100AU Audio over CAT5e/6 extender kit transmits audio signals up to a distance of 300m (192kHz signals up to 100m). This plug-and-play device accepts both optical and coaxial digital inputs and includes a built in DAC to enable use of the stereo left / right audio output from either input.

Features:

  • Extend optical and coaxial digital audio signals up to distances of 300m* over a single CAT cable
  • Both optical and coaxial digital can be distributed at the same time
  • Built in DAC (Digital to Analogue audio Converter) converts either optical or coaxial digital (selectable) to analogue stereo left/right audio output (source selected on receiver unit)
  • Supports sample rates 32kHz, 44.1kHz, 48kHz, 96kHz and 192kHz up to 24-bit resolution
  • Ultra low jitter and high fidelity design

*CAT100AU supports distances of up to: 192kHz - 100m;  96kHz - 150m;  < 48kHz - 300m

In the box:

  • 1 x CAT100AU-TX
  • 1 x CAT100AU-RX
  • 1 x 5V/1A DC Power Supply
  • 1 x Mounting Kit
  • 1 x User Manual
View AllClose

Specifications

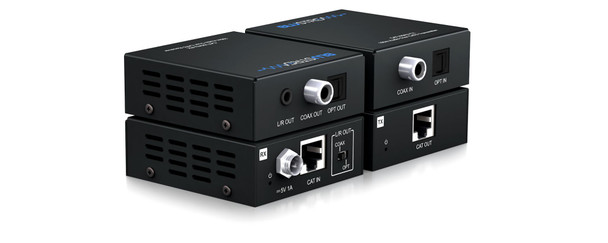

CAT100AU-TX:
• Audio Input Connectors: 1 x Optical (S/PDIF) & 1 x RCA (S/PDIF)
• Output Connectors: 1 x RJ45

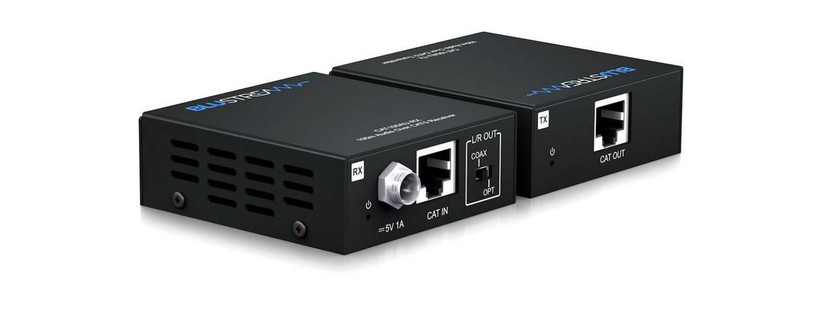

CAT100AU-RX:
• Input Connectors: 1 x RJ45 & 5V/1A DC
• Output Connectors: 1 x Optical (S/PDIF), 1 x RCA (S/PDIF) & 1 x Analogue left / right - 3.5mm stereo audio jack
• Balun Dimensions (W x D x H): 65 x 80 x 25mm (with connections)
• Balun Dimensions (W x D x H): 65 x 70 x 25mm (without connections)
• Ind. Balun Weight: 0.13kg (excluding accessories)
• Carton / Box Dimensions (W x D x H): 210 x 125 x 95mm
• Shipping Weight: 0.6kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: 5V/1A DC, barrel type connector
• Power supplied to the transmitter unit from the receiver
View AllClose

Details

Product Information Sheet:
User Manual:
Schematic Diagram:
