Blustream Optical to Dante® Audio Converter

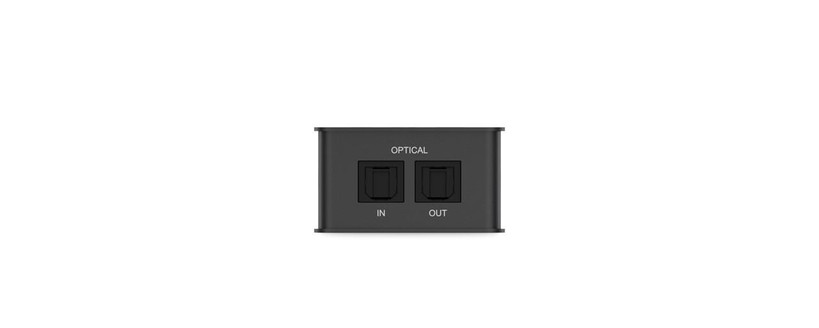

BlustreamOptical to Dante® Audio Converter - DA22OPT has been designed to both encode 2ch optical S/PDIF audio to a Dante® digital signal, and decode a Dante® digital signal to 2ch optical S/PDIF audio. The DA22OPT is a plug & play device that is powered using PoE (Power Over Ethernet). The DA22OPT also supports AES67 RTP audio transport.

Features:

•  Encodes 2ch optical S/PDIF audio to a Dante® digital signal
• Decodes a 2ch Dante® digital signal to optical S/PDIF audio
• Optical S/PDIF signal can be routed from Input to Output by binding the connection in Dante Controller
• Supports: 44.1, 48, 88.2 & 96 KHz sample rates @ 16, 24 & 32 Bit
• Configurable Dante® device latency (supports 2, 3, 4, 5 or 10ms configurable using Dante® Controller)
• +6dB / -24dB input sensitivity and output gain control adjustment
• Supports AES67 RTP audio transport
• Features Class 0 802.3af PoE for powering of product from any PoE switch
• Local 12v power supply input for when network switch does not support PoE*

* PS121PH power supply sold separately

In the box:

• 1 x DA22OPT
• 1 x Quick Reference Guide
