Description

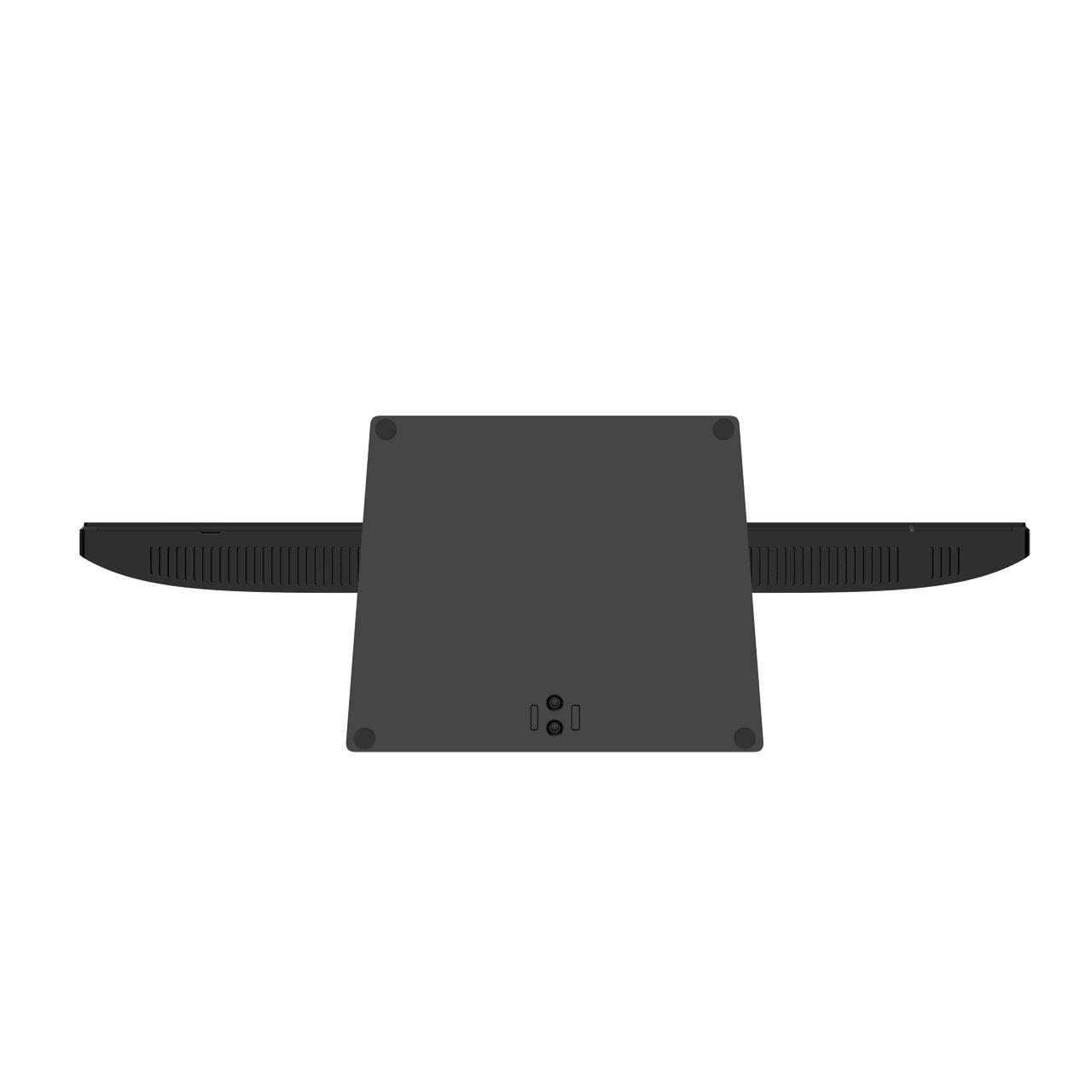

Dahua DHI-LM22-C200 21.45’’ Monitor
Features:
- The 1920*1080 resolution produces clearer and more vivid pictures.
- Wide color gamut, 99% sRGB, 85% NTSC, 85% DCI-P3, 85% Adobe RGB. It meets the designer's demand of image texture.
- 178°H/178°V extra-wide viewing angle for all-round viewing performance.
- Adaptive sync can effectively solve picture lagging and tearing problems.
- 4ms fast response time with no image blurring or ghosting.
- Low blue light technology can support a comfortable viewing experience.
- 3000:1 high static contrast ratio makes more obvious contrast between bright and dark.
Specifications
Model
| Model | DHI-LM22-C200 |
|---|
Display
| Screen Size | 21.45" |
|---|---|
| Panel type | VA |
| Aspect Ratio | 16:9 |
| Resolution | 1920x1080 |
| Backlight | E-LED |
| Brightness/Luminance | 250nits(typ) |
| Contrast Ratio | 3000:1 |
| Color Support | 99% sRGB, 85% NTSC, 85% DCI-P3, 85% Adobe RGB |
| Viewing Angle(H/V) | 178°(H)/178°(V) |
| Response time | 4ms(OD) |
| Refresh Rate | 75Hz |
Signals
| Interface | VGA×1，HDMI 1.4×1，Audio out×1 |
|---|
General
| Power Supply | DC 12V 2A |
|---|---|
| Power Type | Adapter |
| Consumption (Standard) | TYP. 19W, MAX. 24 W |
| Consumption (Standby) | <0.5W |
| Net Weight | 2.5kg |
| Gross Weight | 3.74kg |
| Tilt Angles | -5°±2°/15°±2° |
| Swivel(angle) | N/A |
| Pivot(angle/direction) | N/A |
| Height Adjustment | N/A |
| VESA | 75x75mm |
| Dimension(W×H×D) | 495.8x286.3x36.7mm(without stand) |
| Package(W×H×D) | 554x120x353mm |
Work Environment
| Temperature | 0°~40°(32°F~104°F) |
|---|---|
| Humidity | 10%~85% |
Accessory
| Standard | HDMI cable, Adapter, Stand |
|---|
Related Products

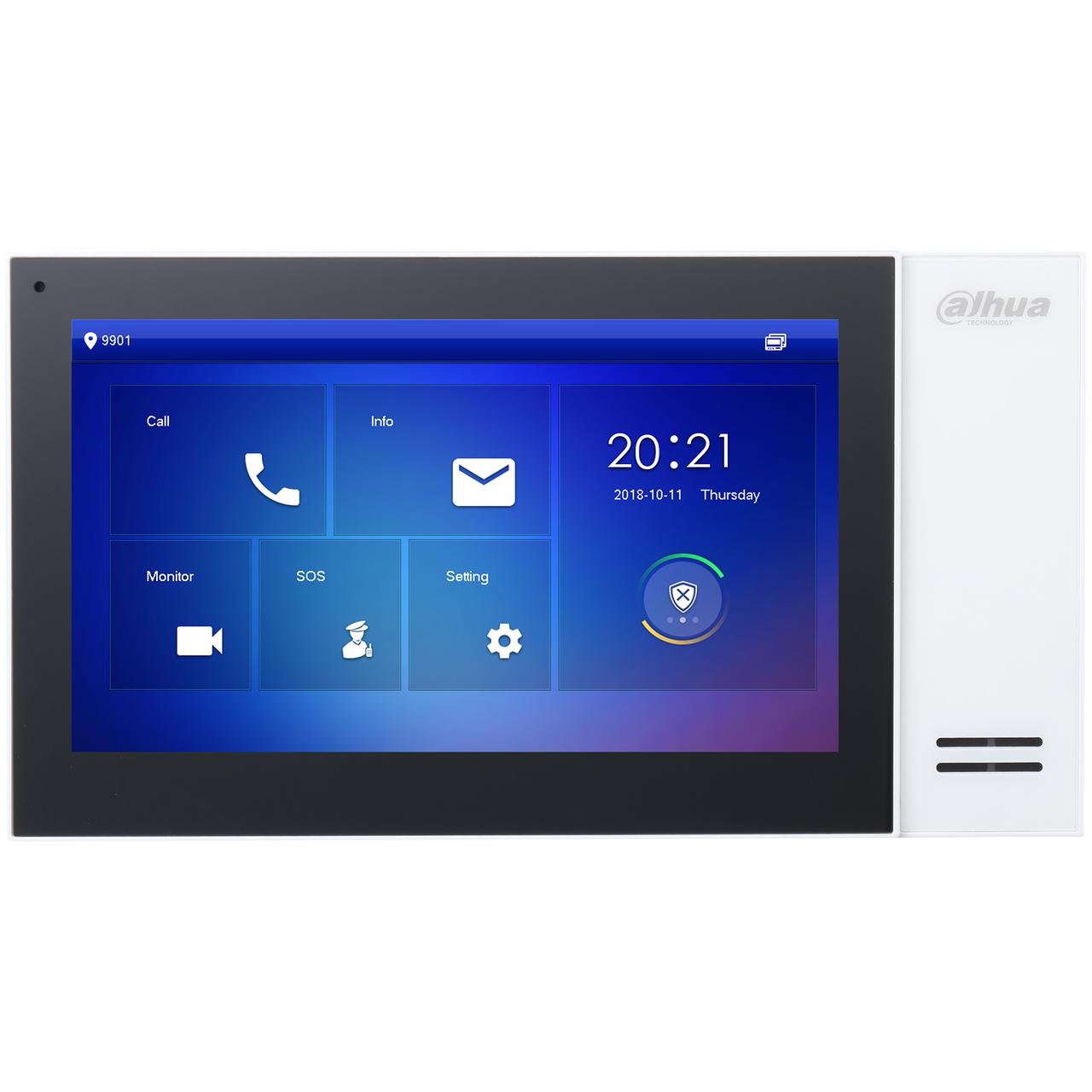

Dahua IP Indoor Intercom Monitor VTH2421FW-P
