Description
Dahua Wizsense HDBW3466R 4MP Wide Angle Fixed Dome WizSense Network Camera has advanced deep learning algorithm which supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.
Features:
- 4-MP 1/2.7" CMOS starlight-grade image sensor, low luminance, and high definition image.
- Outputs 4 MP (2688 × 1520) @25/30 fps, and supports max. 5 MP (2880 × 1620) @20 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in IR LED, and the max. illumination distance is 15 m.
- ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
- Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in MIC.
- 12 VDC/PoE power supply.
- IP67, IK10 protection.
- EPTZ: Enlarge and track the targets of intelligent alarms.
- SMD 3.0.
- Colour: Black
- 3 Year Warranty
- Also available in White
Specifications
Camera
| Image Sensor | 1/2.7" CMOS |
|---|---|
| Max. Resolution | 2880 (H) × 1620 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | 15 m (49.21 ft) (IR LED) |
| Illuminator On/Off Control | Auto |
| Illuminator Number | 3 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0°–355° Tilt: 0°–80° Rotation: 0°–355° |
Lens
| Lens Type | Fixed-focal |
|---|---|
| Lens Mount | M12 |
| Focal Length | 2.1 mm |
| Max. Aperture | F2.0 |
| Field of View (LDC is disabled) |
|
| Field of View (LDC is enabled - by default) |
|
| Close Focus Distance | 0.6 m (1.97 ft) |
| DORI Distance |
|
Intelligence
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
|---|---|
| SMD 3.0 | Less false alarm, longer detection distance |
| Smart Search | Work together with Smart NVR to perform refined intelligent search, event extraction, and merging to event videos |
Video
| Video Compression | H.265; H.264; H.264B; MJPEG (Only supported by the sub stream) |
|---|---|
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Video Frame Rate |
Main stream: 2880 × 1620 @(1–20 fps )/2688 × 1520 @(1–25/30 fps ) Sub stream: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) Third stream: 1920 × 1080 @ (1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 3 streams |
| Resolution | 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536); 2304 × 296 ; 1080p(1920 × 1080); 1.3M (1280 × 960); 720p(1280×720); D1 (704×576/704×480); VGA(640 × 480); CIF(352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 3 kbps–8192 kbps; H.265: 3 kbps–8192 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto; Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688×1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
Audio
| Built-in MIC | Yes |
|---|---|
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
Alarm
| Alarm Event |
|
|---|
Network
| Network Port | RJ-45 (10/100 Base-T) |
|---|---|
| SDK and API | Yes |
| Cyber Security | Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade |
| Network Protocol | IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
| Browser | IE, Chrome, Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Client | iOS; Android |
Certification
| Certifications | CE-LVD:EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
|---|
Port
| Audio Input | 1 channel (RCA port) |
|---|---|
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: 5 mA 3–5V DC |
| Alarm Output | 1 channel out: 1,000 mA 30V DC/500mA 50V DC |
Power
| Power Supply | 12 VDC/PoE |
|---|---|
| Power Consumption | Basic: 3.2W (12 V DC); 3.9 W (PoE) Max. (H.265+main stream/IR intensity+IR on): 6.4 W (12V DC); 7.7 W (PoE) |
Environment
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH |
|---|---|
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Protection | IP67, IK10 |
Structure
| Casing | Metal |
|---|---|
| Product Dimensions | 94 mm × Φ122.0 mm (3.70" × Φ4.80") |
| Net Weight | 500 g (1.10 lb) |
| Gross Weight | 770 g (1.69 lb) |
Related Products
Dahua Wizsense 4MP Wedge Dome Fixed Lense Camera DH-IPC-HDBW3466FP-AS-AUS
Dahua
Dahua Wizsense HDBW3466FP 4MP IR Fixes-focal Wedge Dome WizSense Network Camera greatly saves on bandwidth and storage space through its AI Coding technology. Driven by its advanced deep...
28DH-IPC-HDBW3466FP-AS-AUS
Dahua Lite Series DH-IPC-HDW3666EMP-S-AUS AI Camera
Dahua
Dahua Lite Series IPC – 6MP IR Fixed-focal Eyeball WizSense Turret Camera greatly saves on bandwidth and storage space through its AI Coding technology. Drive by its advanced deep learning...
28DH-IPC-HDW3666EMP-S-AUS

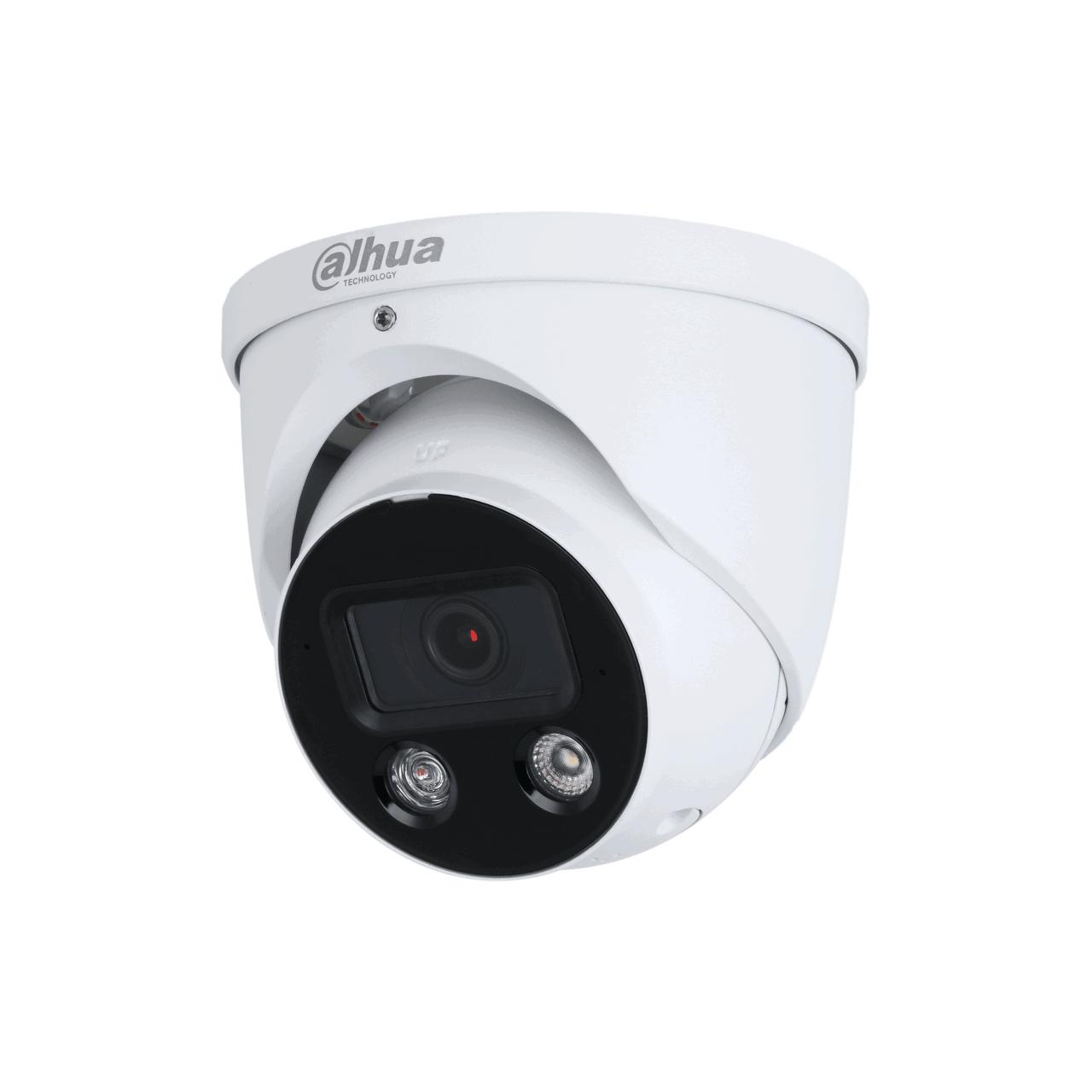

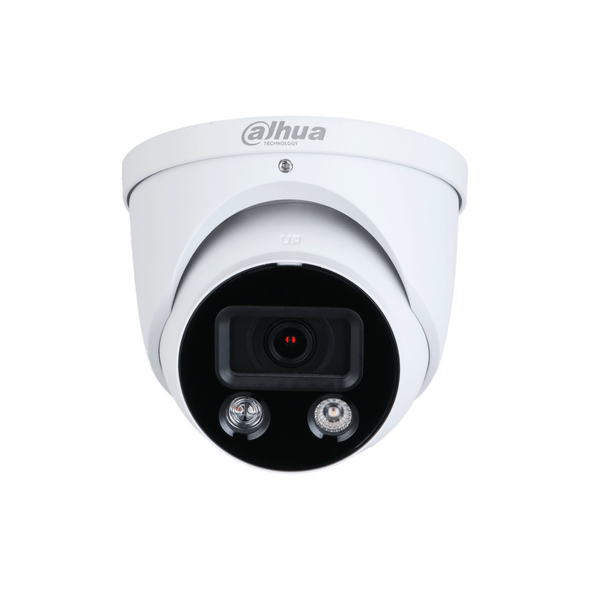

Dahua Pro Series DH-IPC-HDW3649H-AS-PV-ANZ TiOC Camera
