Description

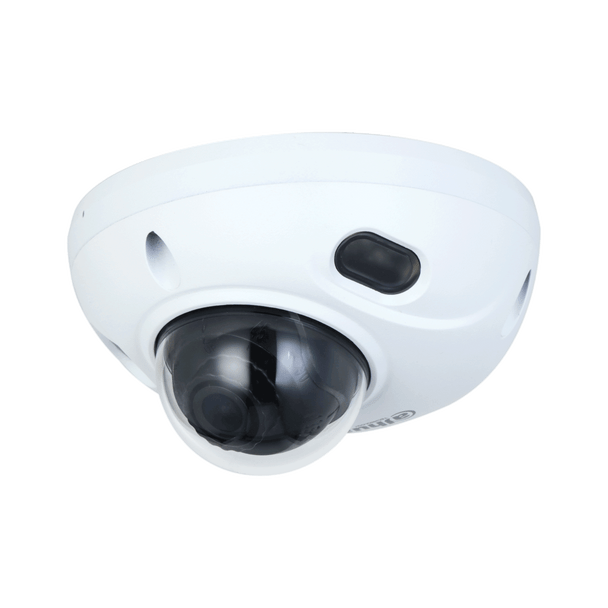

Dahua Wizsense HDBW3466FP 4MP IR Fixes-focal Wedge Dome WizSense Network Camera greatly saves on bandwidth and storage space through its AI Coding technology. Driven by its advanced deep learning algorithms, the camera supports intelligent functions such as perimeter protection, smart motion detection (SMD), Quick Pick, and AI SSA (AI Scene Self-adaptation), making it easy and convenient to use. Starlight technology and its large aperture lens also allow the camera to produce clear, vivid images even in poor lighting conditions.
Features:
- 4 MP 1/3" CMOS image sensor, excellent low luminance performance and high definition of images.
- Outputs max. 4 MP (2688 × 1520) @25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in IR LED, max. IR distance: 30 m.
- ROI, SMART H.264 +/H.265+, AI H.264/H.265. flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
- Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; max. 256 G Micro SD card. built-in Mic.
- 12 VDC/PoE power supply facilitates installation.
- IP67, IK10 protection.
- SMD 4.0, AI SSA.
- 3 Year Warranty
Specifications
Camera
| Image Sensor | 1/3" CMOS |
|---|---|
| Max. Resolution | 2688 (H) × 1520 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.005 lux@F1.4 (Color, 30 IRE) 0.0005 lux@F1.4 (B/W, 30 IRE) 0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | 30 m (98.43 ft) |
| Illuminator | On/Off Control Auto/Manual |
| Illuminator Number | 2 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0°–355°; Tilt: -20°–70°; Rotation: 0°–355° |
Lens
| Lens Type | Fixed-focal |
|---|---|
| Lens Mount | M12 |
| Focal Length | 2.1 mm; 2.8 mm; 3.6 mm; 6 mm |
| Max. Aperture | 2.1 mm: F2.0; 2.8 mm; 3.6 mm; 6 mm: F1.4 |
| Field of View |
2.1 mm: Horizontal: 137°; vertical: 70°; diagonal: 142° 2.8 mm: Horizontal: 102°; vertical: 54°; diagonal: 121° 3.6 mm: Horizontal: 84°; vertical: 42°; diagonal: 101° 6.0 mm: Horizontal: 52°; vertical: 28° ; diagonal: 61° |
| Iris Control | Fixed |
| Close Focus Distance |
2.1 mm: 0.5 m (1.64 ft) 2.8 mm: 0.9 m (2.95 ft) 3.6 mm: 1.6 m (5.25 ft) 6.0 mm: 3.2 m (10.50 ft) |
| DORI Distance |
2.1mm: Detect:52.0m Observe:20.8 m Recognize:10.4 m Identify:5.2 m 2.8mm: Detect:63.6 m Observe:25.4 m Recognize:12.7 m Identify:6.4 m 3.6mm: Detect:85.4 m Observe:34.2 m Recognize:17.1 m Identify:8.5 m 6.0mm: Detect:124.0 m Observe:49.6 m Recognize:24.8 m Identify:12.4 m |
Intelligence
| IVS (Perimeter Protection) | Tripwire, intrusion (support the classification and accurate detection of vehicle and human) |
|---|---|
| AI SSA | Yes |
| Quick Pick | With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Video
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
|---|---|
| Smart Codec | Smart H.265+Smart H.264+ |
| AI Coding | AI H.265AI H.264 |
| Video Frame Rate | Main stream: 2688 × 1520 @ (1–25/30) fps Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) Sub stream 2: 1920 × 1080 @ (1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Stream Capability | 3 streams |
| Resolution |
4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048×1536); 3M (2304×1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240); VGA (640 × 480) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog | Yes |
| AFSA | Yes |
| Image Rotation | 0°/90°/180°/270° (support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
Audio
| Built-in MIC | Yes |
|---|---|
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
Alarm
| Alarm Event | No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; external alarm; SMD; safety exception |
|---|
Network
| Network Port | RJ-45 (10/100 Base-T) |
|---|---|
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
| Browser | IE, IE11, Chrome, Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Client | IOS; Android |
Certification
| Certifications |
CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
|---|
Port
| Audio Input | 1 channel (RCA port) |
|---|---|
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: 5 mA 3–5 VDC |
| Alarm Output | 1 channel out: 300 mA 12 VDC |
Power
| Power Supply | 12 VDC/PoE (802.3af) |
|---|---|
| Power Consumption |
Basic: 3.8 W (12 VDC); 4.6 W (PoE) Max. (WDR + IR intensity + Intelligence): 5.9 W (12 VDC); 7.2 W (PoE) |
Environment
| Operating Temperature | –40 °C to +60 °C (–40 °F to 140 °F) /Less than 95% RH |
|---|---|
| Storage Temperature | –40 °C to +60 °C (–40 °F to 140 °F) |
| Protection | IP67, IK10 |
Structure
| Casing | Metal |
|---|---|
| Product Dimensions | 64.8 mm × Φ111.0 mm (2.55" × Φ4.37") |
| Net Weight | 423 g (0.93 lb) |
| Gross Weight | 530 g (1.17 lb) |
Related Products

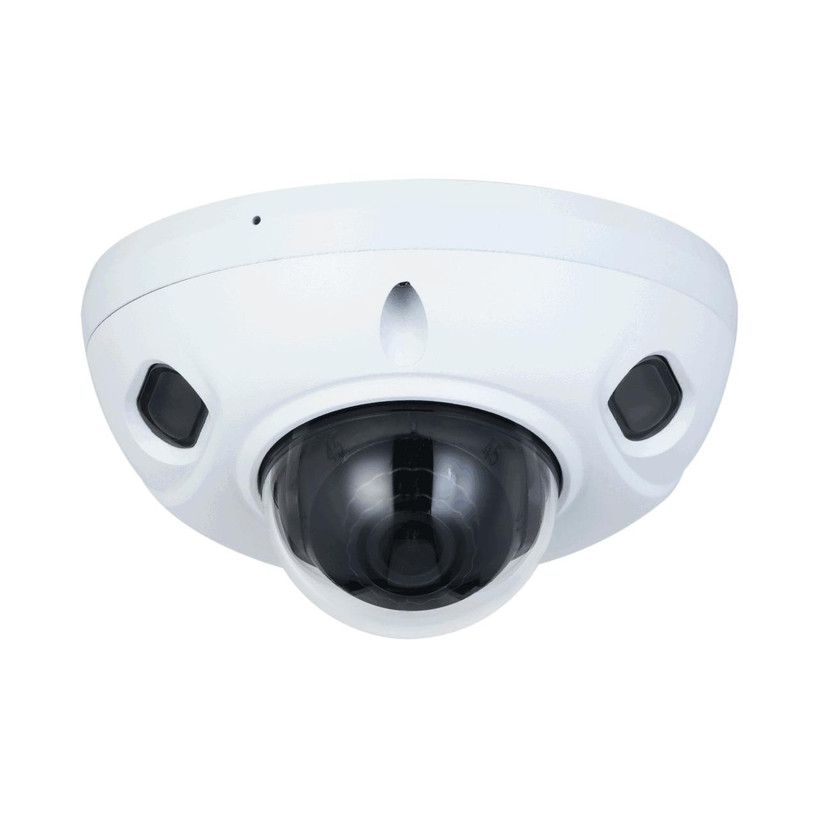

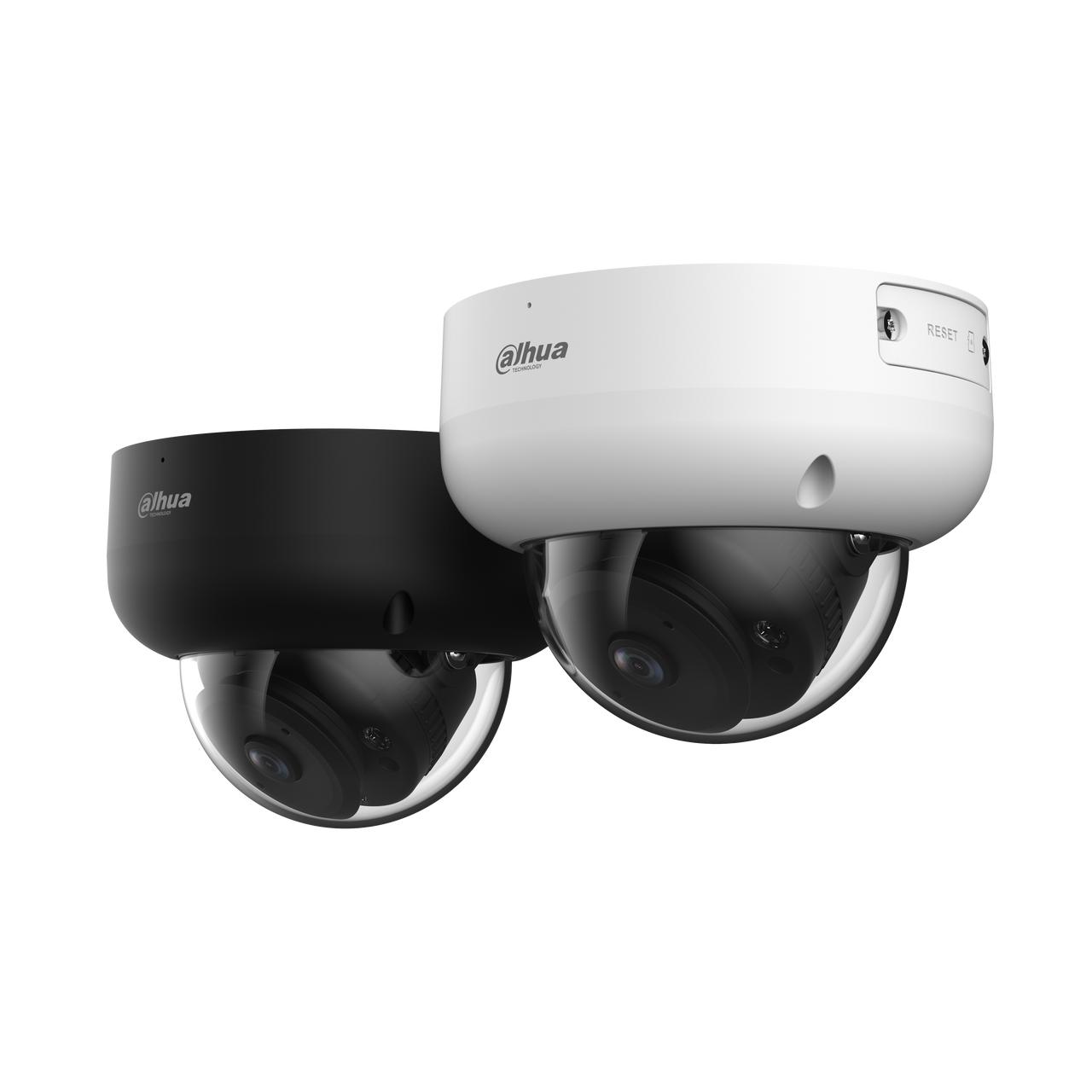

Dahua DH-IPC-HDBW3466R-AS-P-BLK Wizsense 4MP Black Wide Angle Dome Fixed Lens Camera
Dahua
Dahua Wizsense HDBW3466R 4MP Wide Angle Fixed Dome WizSense Network Camera has advanced deep learning algorithm which supports intelligent functions, such as perimeter protection and smart motion...
28DH-IPC-HDBW3466R-AS-P-BLK

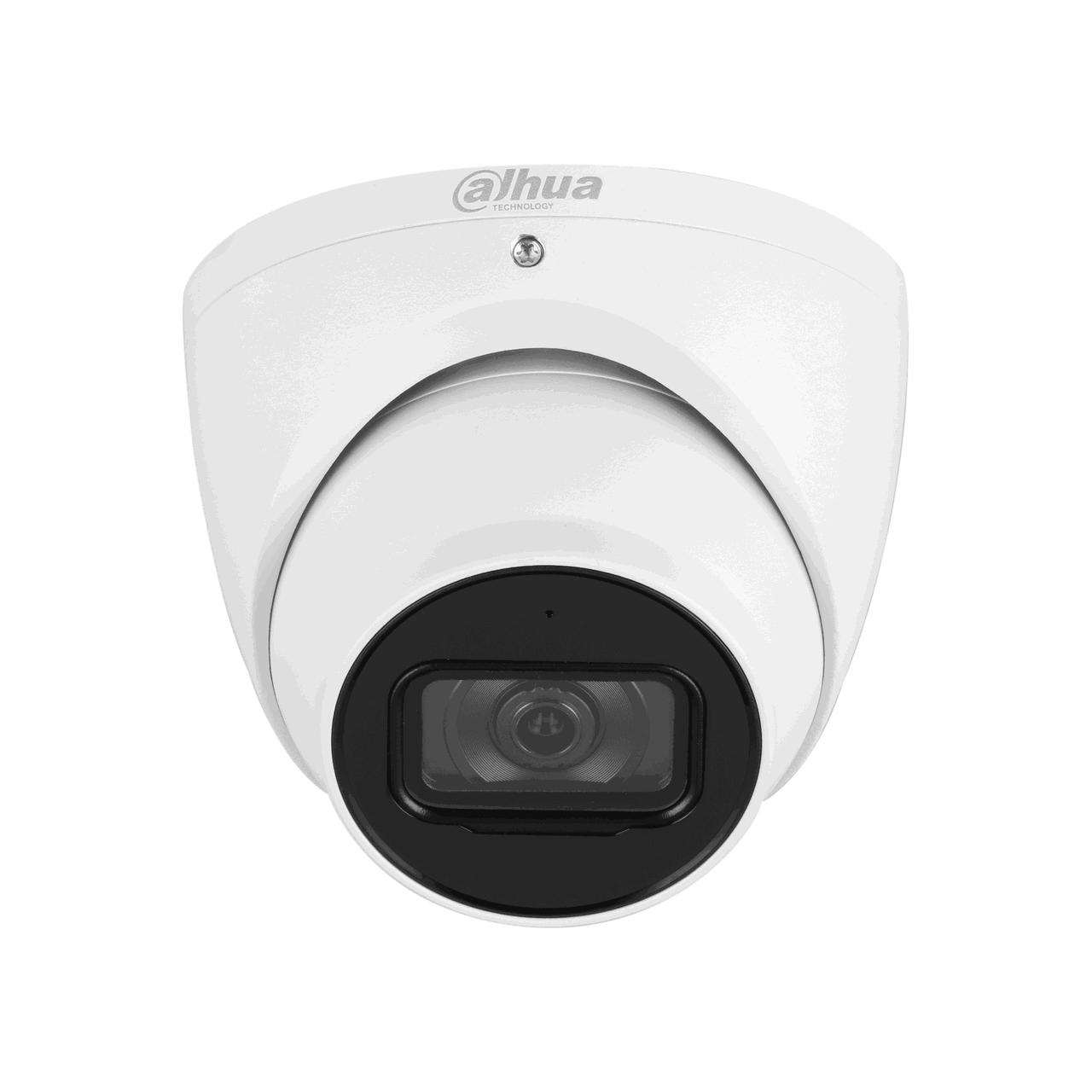

Dahua Lite Series DH-IPC-HDW3666EMP-S-AUS AI Camera
Dahua
Dahua Lite Series IPC – 6MP IR Fixed-focal Eyeball WizSense Turret Camera greatly saves on bandwidth and storage space through its AI Coding technology. Drive by its advanced deep learning...
28DH-IPC-HDW3666EMP-S-AUS

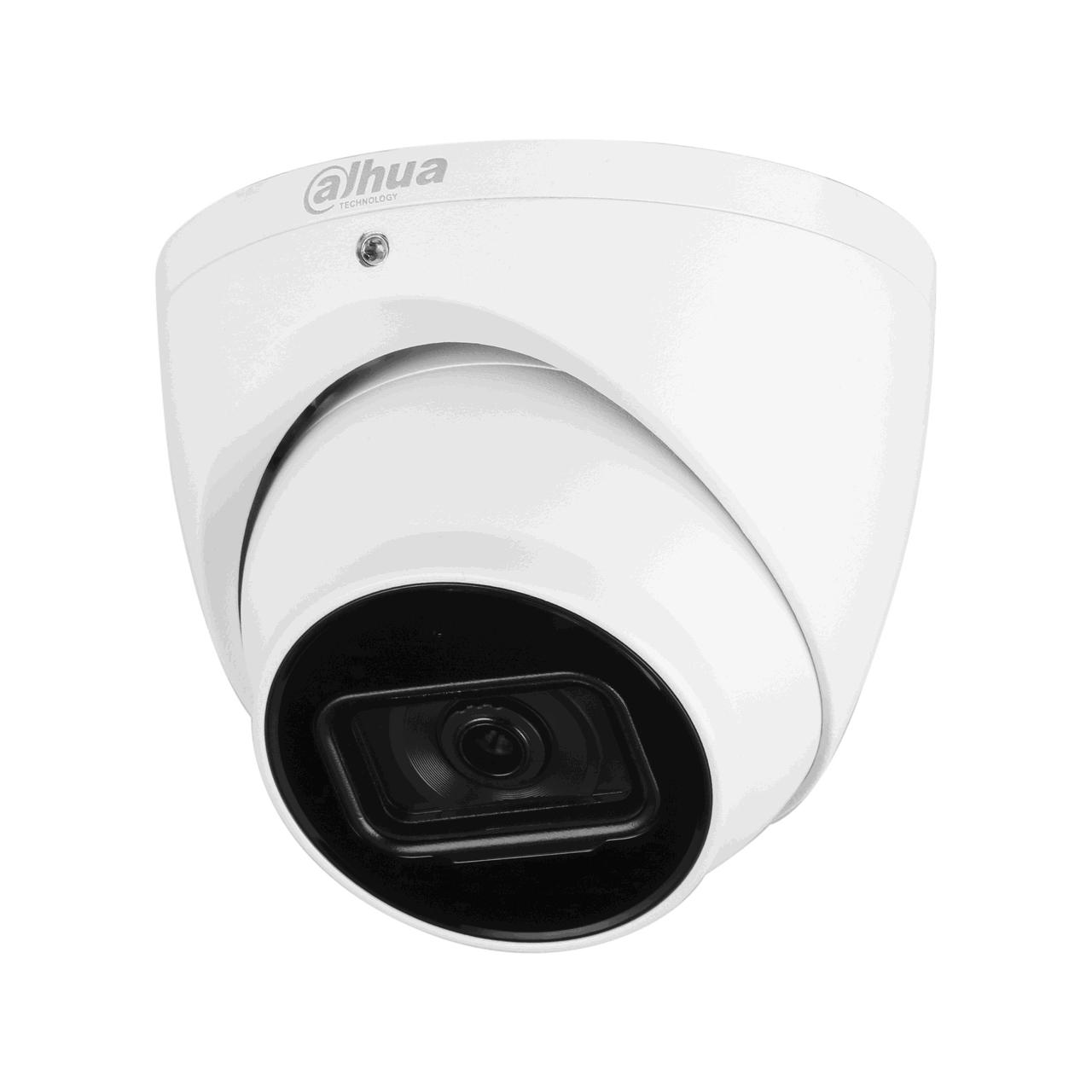

Dahua Lite Series DH-IPC-HDW3866EMP-S-AUS AI Camera
