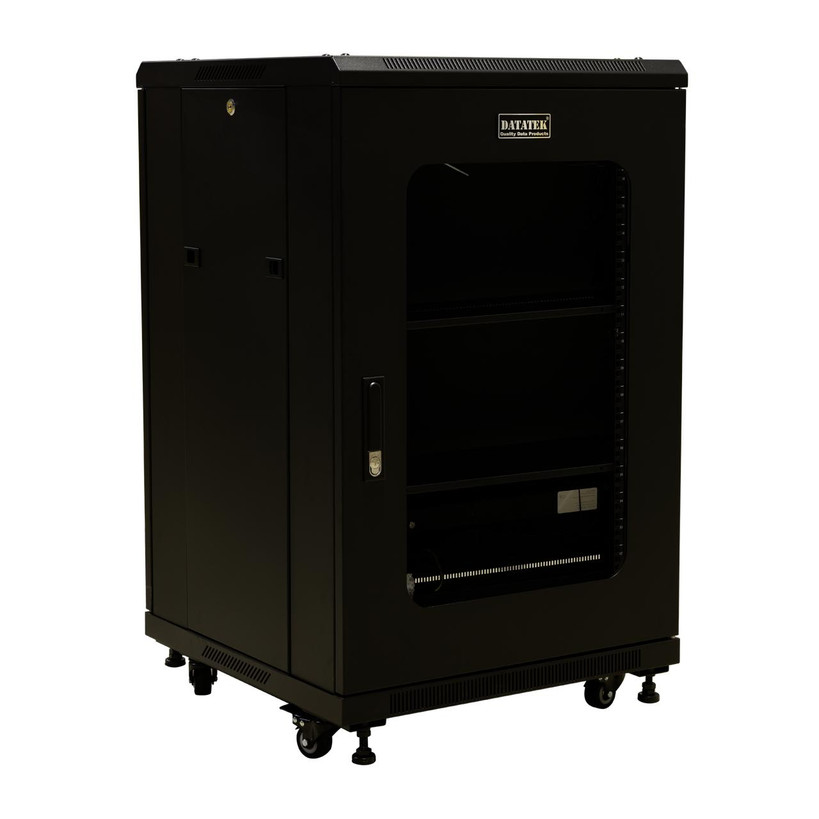

Datatek 18U 600mm Deep Data Cabinet - FPS Series

The Datatek 24A18R66FPS is a heavy-duty, fully-loaded 18U floor-standing data cabinet that arrives 100% assembled and ready to roll straight into your server room, comms room or warehouse.

Built for Australian conditions with an 800 kg static load rating, reversible lockable tempered-glass front door, removable lockable side panels and included cooling/power accessories – this is the smartest all-in-one 18U solution on the market.

Key Features & Benefits

• Genuine Datatek heavy-duty welded cold-rolled steel frame – Black powder-coat finish
• 18U height × 600 mm (W) × 600 mm (D) – perfect for standard-depth switches & most 1RU/2RU servers
• Massive 800 kg load capacity

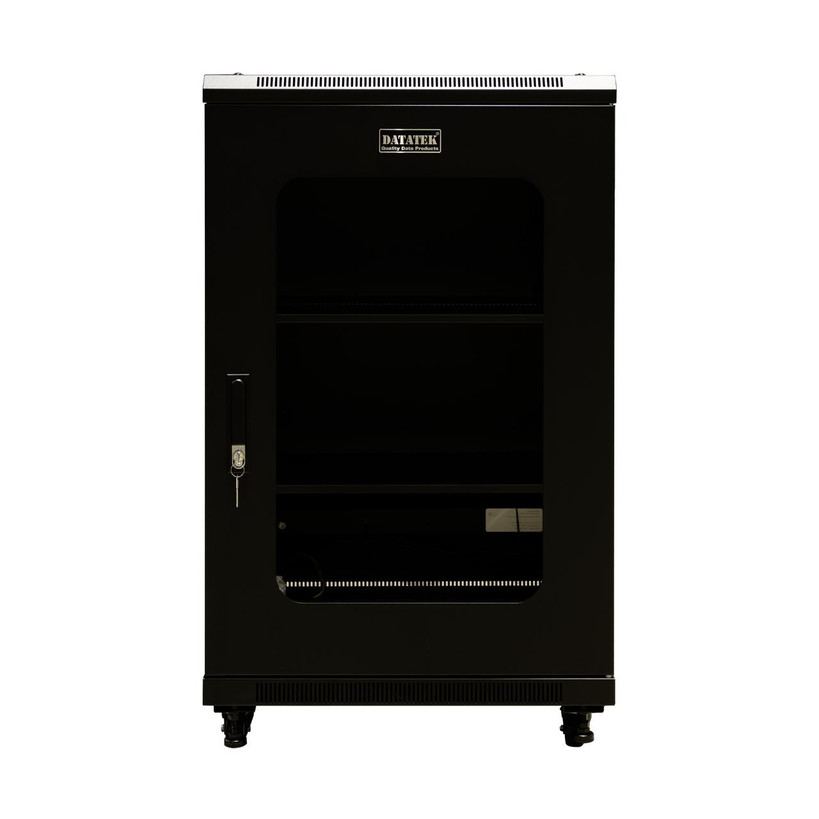

• Reversible, lockable tempered-glass front door (opens >180°)

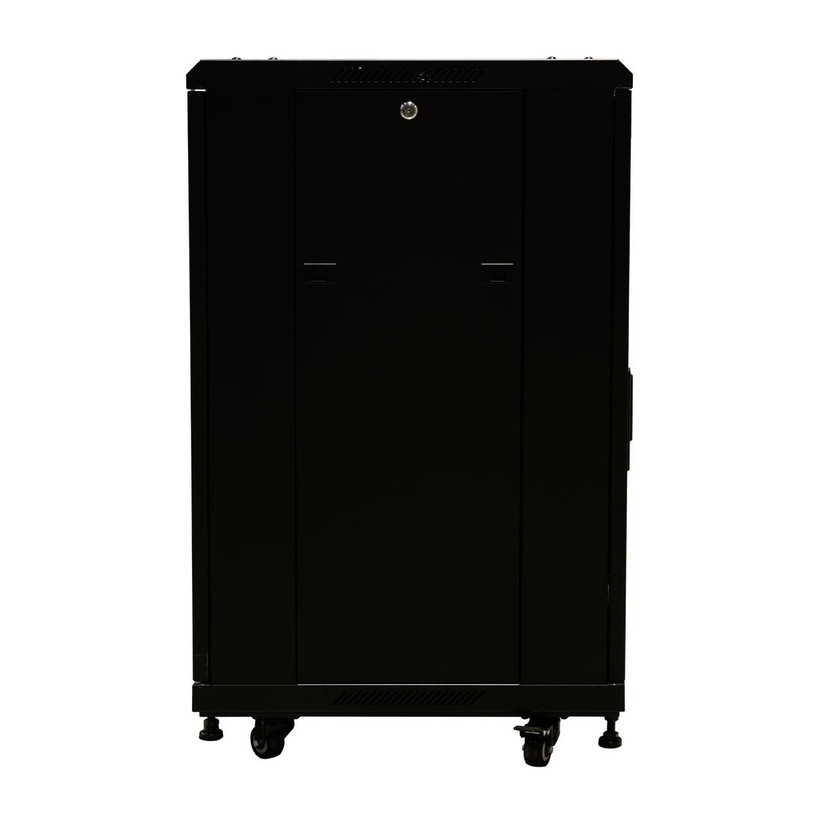

• Fully removable & lockable side panels for easy access
• Pre-fitted earthing cables on door & panels
• 4 × high-airflow 240 V ceiling-mounted cooling fans (already wired
• 1 × vertical 6-outlet Australian GPO power rail (10 A)
• 2 × heavy-duty fixed shelves included
• 4 × adjustable levelling feet + 4 × castors (2 with brakes)
• Cable entry glands top & bottom
• Complies with ANSI/EIA RS-310-D, IEC297-2, DIN41491, ETSI
• IP20 rated

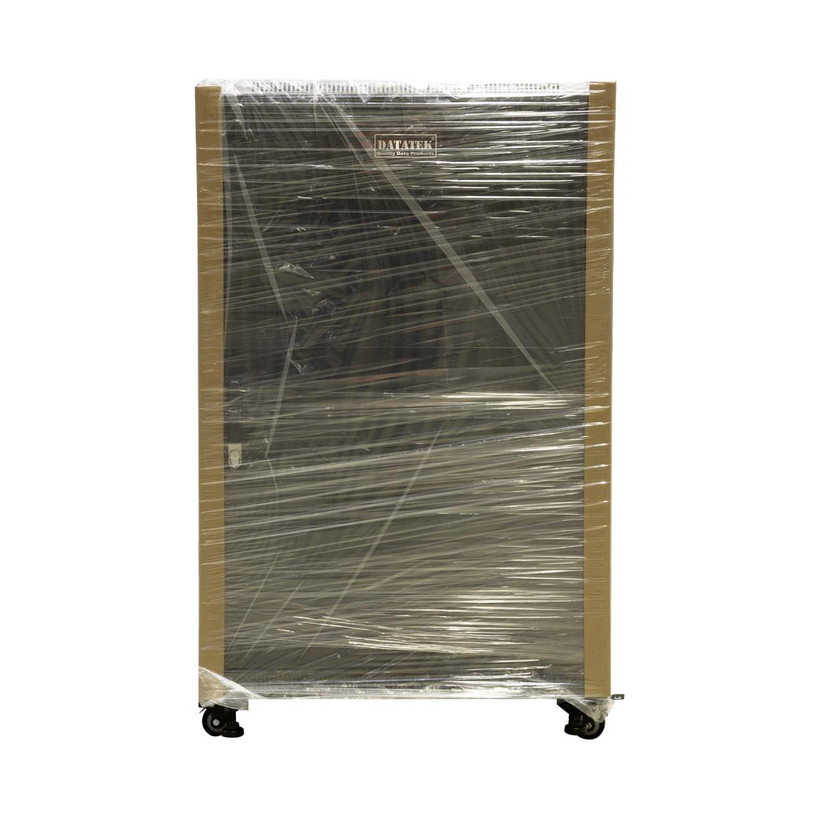

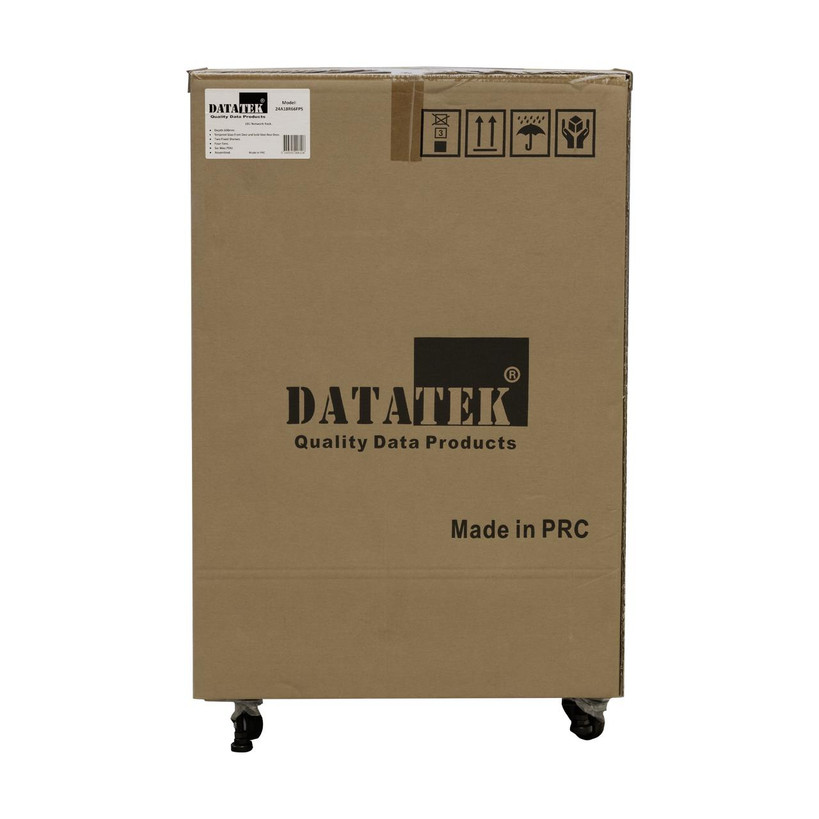

• Supplied fully assembled in protective packaging

Technical Specifications

• Usable Height: 18RU (800 mm internal)
• External Dimensions: 600 (W) × 600 (D) × 988 (H) mm
• Internal Depth (front rail to rear door): ~540 mm
• Rail Type: 19″ square-hole, fully adjustable front & rear
• Colour: Black RAL9004 powder coat
• Weight: ~78 kg

What’s Included – Everything You Need

• 1 × Fully assembled 18U cabinet
• 4 × Pre-wired 240 V cooling fans
• 1 × 6-way vertical PDU (Australian sockets)
• 2 × Fixed ventilated shelves
• 4 × Levelling feet + 4 × castors (2 locking)
• 2 × Keys (door & sides)
• Earthing kit & mounting hardware
