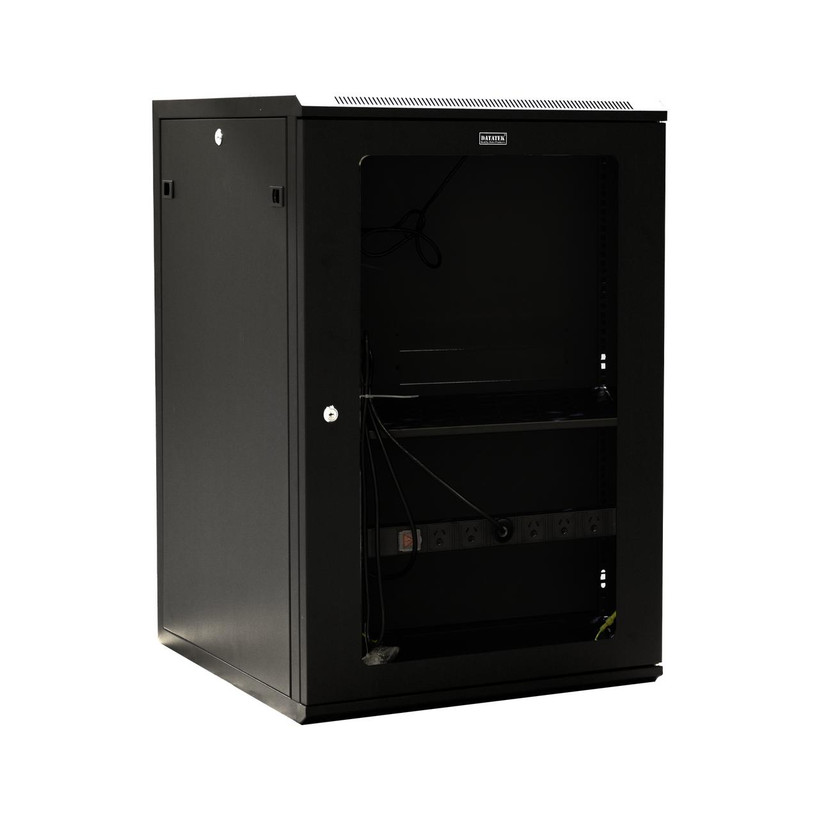

Datatek 18U 600mm Deep Wall Mount Data Cabinet - FPS Series

The Datatek 24B18R66FPS is the premium 18U 600 mm deep wall-mount data cabinet that arrives 100 % fully assembled and packed with everything you need – no extras to buy.

Perfect for offices, retail back-of-house, schools, medical centres, small comms rooms and security NVR installations where floor space is limited but you still need full-depth equipment support.

Key Features & Benefits

• Heavy-duty cold-rolled steel construction – Black powder-coat finish
• Full 18U usable height × 600 mm deep (suits deep switches & small servers)
• 40 kg load capacity

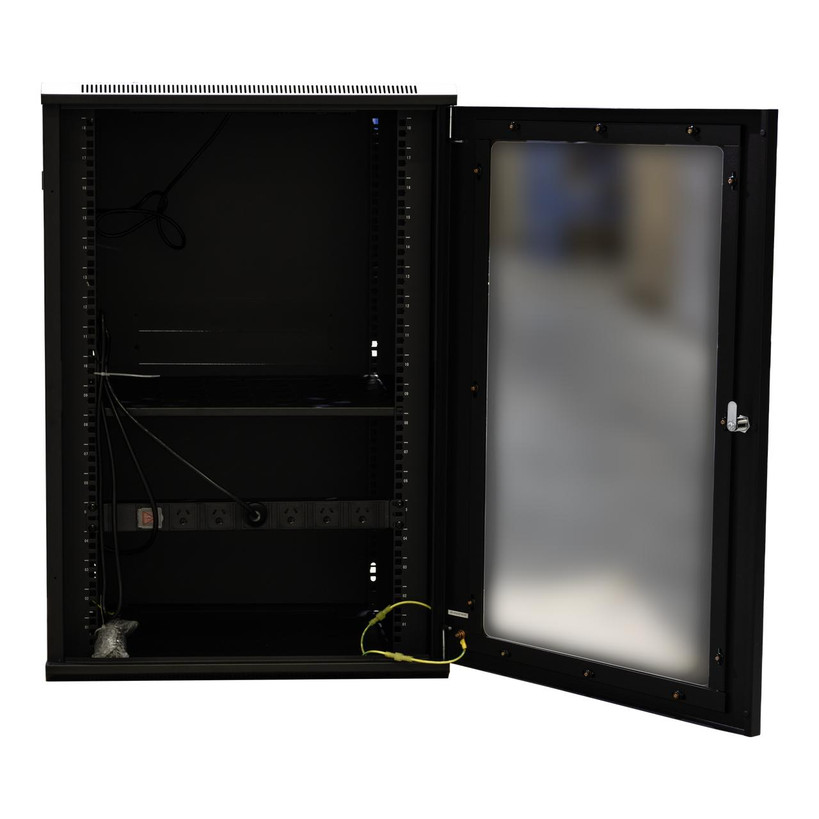

• Reversible, lockable toughened tempered-glass front door with metal frame
• Door opens over 180° and is easily removable
• Removable lockable side panels (keyed same as front door)
• 2 × pre-wired 240 V ceiling-mounted cooling fans
• 1 × 6-outlet Australian vertical PDU (10 A)
• 1 × fixed ventilated shelf
• 12 × M6 cage nuts & screws included
• Vented top & bottom + large cable entry glands (top, bottom & rear)
• Pre-fitted earthing cables
• Includes 4 × heavy-duty wall-mount bolts
• IP20 rated

Technical Specifications

• Usable Height: 18RU
• External Dimensions: 600 (W) × 600 (D) × 905 (H) mm
• Weight: ~48 kg
• Colour: Black RAL9004
• Mounting: 19″ square-hole rails

What’s Included – Ready to Hang & Load

• 1 × Fully assembled 18U wall cabinet
• 2 × Pre-wired 240 V cooling fans
• 1 × 6-outlet Australian PDU
• 1 × Fixed shelf
• 12 × M6 cage nuts & screws
• 4 × Wall mounting bolts
• 2 × Keys (all locks matched)

The perfect space-saving, fully-featured 18U wall solution – order the Datatek 24B18R66FPS today and have it on the wall tomorrow!
