Description

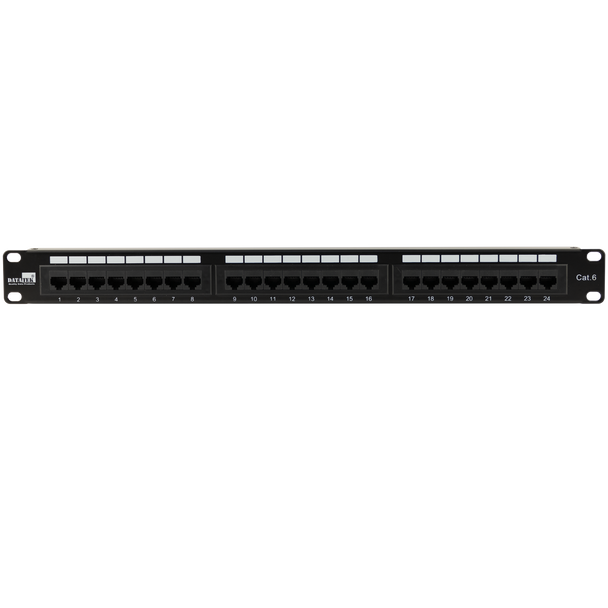

The Datatek 24 Port CAT6 Rack Mountable Patch Panel with Cable Tidy is a compact 1U solution engineered for seamless integration into 19-inch data cabinets, delivering high-performance networking with support for speeds up to 10 Gigabit Ethernet (10GBASE-T). This black SPCC-framed panel features 24 CAT6-rated RJ45 jacks with color-coded labels for T568A and T568B wiring standards, ensuring easy identification and compliance with ANSI/TIA/EIA 568 C.2. Built for durability with ABS plastic housing, 50μ gold-plated contacts, and IDC terminals compatible with 22-26AWG stranded or solid wire, it includes a rear cable management rail, 8 mounting screws, and 8 cable ties for organized installations. RCM compliant and rated for -30°C to 68°C operation, this patch panel offers 750 mating cycles for jacks and 200 punching times for IDC, with 7.7kg retention strength for reliable connections.

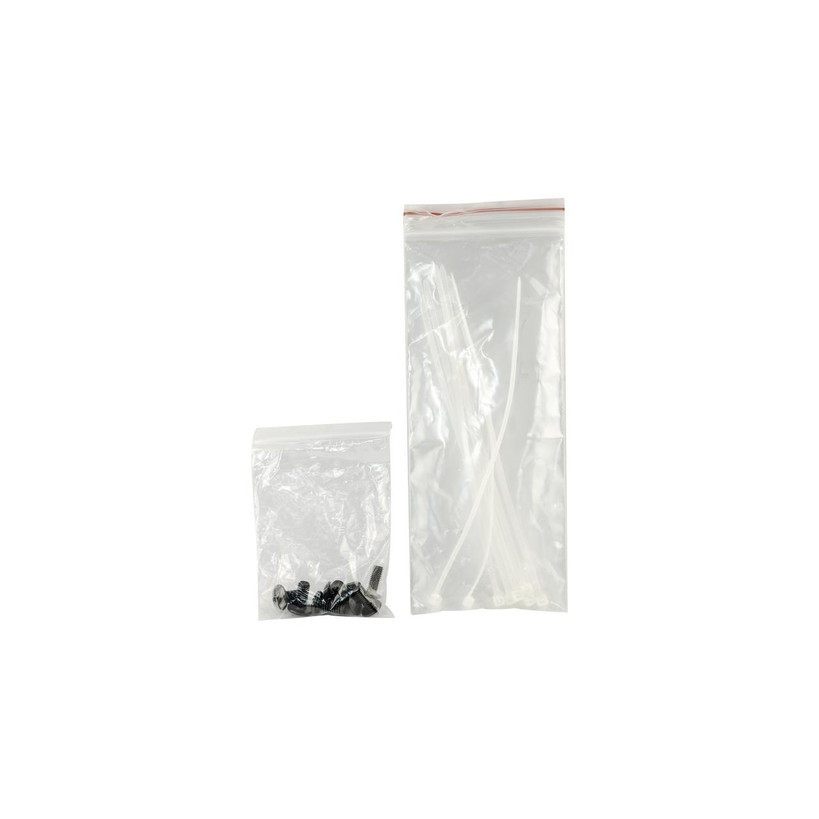

Inclusions:
- Rear cable management rail with cable ties
- 8 x Mounting Screws
- 8 x Cable Ties
Features:
- High-Capacity CAT6 Jacks: 24 RJ45 ports rated for Category 6 performance, supporting up to 10GBASE-T speeds for future-proof networking.
- Easy Wiring Compliance: Color-coded labels for T568A and T568B standards, simplifying termination and ensuring ANSI/TIA/EIA 568 C.2 adherence.
- Durable Construction: Black SPCC frame with ABS plastic housing and nickel-plated phosphor bronze contacts featuring 50μ gold plating for corrosion resistance.
- Versatile IDC Terminals: Tin-plated phosphor bronze with dual-tool compatibility, suitable for 22-26AWG stranded or solid wire, rated for 200 punching cycles.
- Robust Retention and Durability: 7.7kg retention strength between jack and plug; jacks endure 750 mating cycles with low contact resistance.
- Cable Management Included: Rear rail with cable ties for tidy organization, plus 8 mounting screws for secure 19-inch rack installation.
- Wide Temperature Range: Operates reliably from -30°C to 68°C, ideal for demanding data center environments.
- RCM Certified Safety: Fully compliant for Australian standards, ensuring safe and efficient deployment.
Specifications
Plastic Housing: ABS
RJ45 Contact Material & Finish:
A) Nickel Plated Phosphor Bronze
B) Contact area: 50μ Gold Plated
IDC Housing: PC
IDC Terminal Material & Finish:
A) Tin Plated Phosphor Bronze
B) Dual Tool Compatible
C) Suitable for 22-26AWG Stranded and Solid Wire
Retention Strength: 7.7kgs between Jack & Plug
Operation Temperature -30° to 68°
Durability: Jack: 750 Cycles Plug - Jack Mating & Un-Mating Test. Insertion Cycles/Minute Max, Contact Resistance Test Per 100 Cycles
IDC: Max. 200 Punching Times
CAT6 Performance in Compliance with ANSI/TIA/EIA 568 C.2 Standard
RCM Compliant
Details
Product Information Sheet: |
|
Type: |
Patch Panel
|
Rack Units (RU): |
1RU
|
Colour: |
Black
|
Number of Outlets: |
24
|
Rating: |
Category 6 (CAT6)
|
Cable Type: |
22 - 26 AWG Stranded/Solid Wire
|
Labeling: |
T568A & T568B
|
RCM Compliant: |
Yes
|
Materials: |
Frame: SPCC, Housing: ABS Plastic
|
Dimensions: |
483mm x 30mm x 43mm (W x D x H)
|
Packaging: |
White Box with Label
|
Warranty: |
1 Year
|
Included Accessories: |
Cable Tidy, 8 x Mounting Bolts, 8 x Cable Ties
|
Carton Quantity: |
10
|
Pallet Quantity: |
-
|
