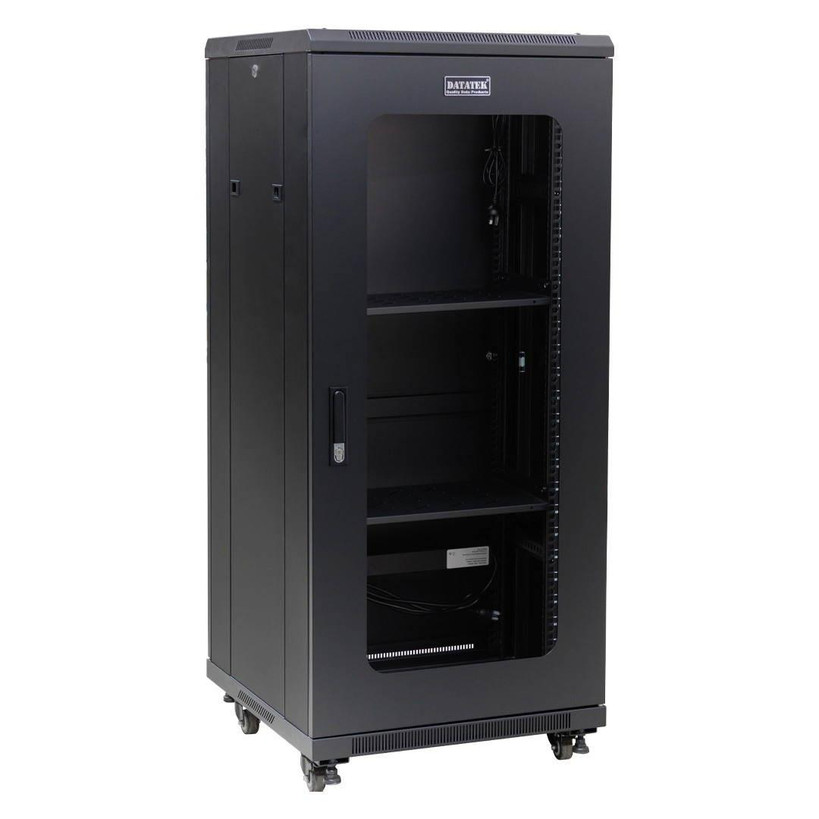

Datatek 27U 600mm Deep Data Cabinet - FPS Series

The Datatek 24A27R66FPS is the ideal mid-to-large 27U floor-standing data cabinet that arrives 100 % fully assembled and packed with every accessory you need – 4 fans, power rail, shelves and mobility kit included.

Built tough for Australian server rooms, NVR farms, comms hubs and warehouses with an 800 kg load rating, toughened glass door that opens >180° and lockable/removable side panels all keyed alike.

Key Features & Benefits

• Heavy-duty welded cold-rolled steel frame – Black powder-coat finish
• 27U usable height × 600 mm (W) × 600 mm (D)
• Massive 800 kg static load capacity
• Reversible, lockable toughened tempered-glass front door with metal surround
• Door opens over 180° for easy front access
• Fully removable & lockable side panels (same key as front/rear)
• 4 × pre-wired 240 V high-flow ceiling fans
• 1 × vertical 6-outlet Australian GPO PDU (10 A)
• 2 × heavy-duty ventilated fixed shelves
• 4 × adjustable levelling feet + 4 × castors (2 braked)
• Large top & bottom cable entry glands
• Pre-fitted earthing cables on all doors & panels
• Fully compliant: ANSI/EIA RS-310-D, IEC297-2, DIN41491, ETSI
• IP20 rated

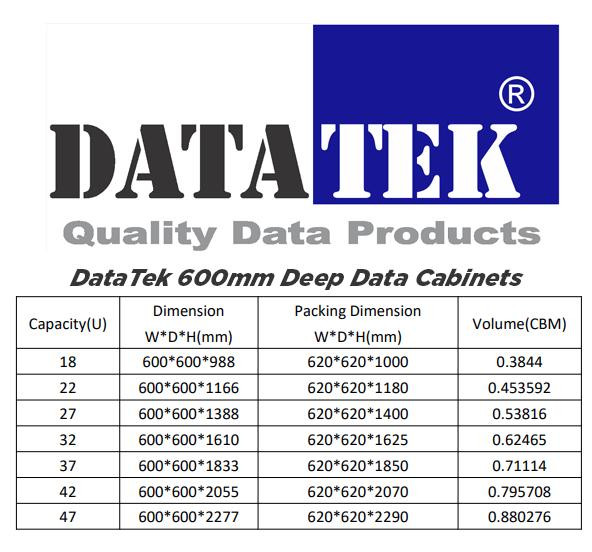

Technical Specifications

• Usable Height: 27RU (1200 mm internal)
• External Dimensions: 600 (W) × 600 (D) × 1388 (H) mm
• Internal Depth (rail-to-rear): ~540 mm
• 19″ square-hole adjustable rails front & rear
• Colour: Black RAL9004
• Weight: ~98 kg

What’s Included – Everything Ready to Roll

• 1 × Fully assembled 27U cabinet
• 4 × Pre-wired 240 V cooling fans
• 1 × 6-way vertical Australian power rail
• 2 × Fixed shelves
• 4 × Levelling feet + 4 × castors (2 locking)
• 2 × Keys (all locks matched)
• Full earthing kit & mounting hardware
