Description
The Datatek 37U 800mm Deep Data Cabinet is ideally suited for server rooms, audio rooms, wiring closets,
manufacturing areas, warehouses, or anywhere where networking equipment needs to be secure, protected and
maintained.
Inclusions:

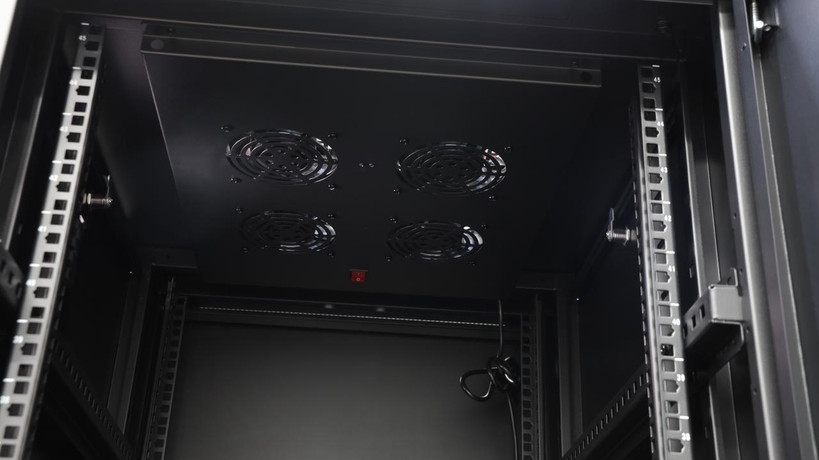

- 4 x Ceiling mounted fans
- 1 x 6 outlet power rail (PDU)
- 3 x Fixed shelves
- 1 x Set of keys
- Removable cable entry cover plates
- Adjustable feet and castors
Features:

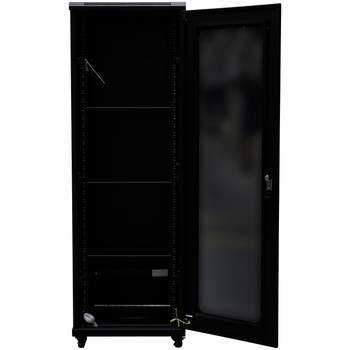

- Toughened glass door with over 180° turning degree and a surrounding metal frame for added protection.
- Removable side panels with key locks. Keyed to match both the front and rear door locks.
- Supplied fully assembled
Specifications
Standard: Comply with ANS/EIA RS‐310‐D, IEC297‐2, DIN41491, Part 1, DIN41491, Part 7, ETSI Standard.
Material Type: SPCC quality cold rolled steel.
Material Thickness: Mounting Profile: 2.0mm, Mounting Angle: 1.5mm, other 1.2mm.
Loading Capacity: Static loading: 800kg (on adjustable feet).
Degree of Protection: IP20.
Surface Finish: Degreasing, Pickling, Phosphating, Powder Coated.
View AllClose
Material Type: SPCC quality cold rolled steel.
Material Thickness: Mounting Profile: 2.0mm, Mounting Angle: 1.5mm, other 1.2mm.
Loading Capacity: Static loading: 800kg (on adjustable feet).
Degree of Protection: IP20.
Surface Finish: Degreasing, Pickling, Phosphating, Powder Coated.
Details
Product Information Sheet: |
|
Rack Type: |
Floor Standing
|
Total Rack Units (RU): |
37RU
|
Colour: |
Black
|
Load Capacity: |
800KG
|
Equipment Mounting Holes: |
Square
|
Lockable Doors & Side Panels: |
True
|
Rack IP Rating: |
IP20
|
Rack Depth: |
800mm
|
Materials: |
Cold Rolled Steel, Tempered Glass Glass Door
|
Dimensions: |
600mm x 800mm x 1833mm (W x D x H)
|
Packaging: |
Brown Box with Label
|
Warranty: |
1 Year
|
Included Accessories: |
1 x 6 Outlet Power Rail, 4 x Ceiling Mounted Fans, 3 x Fixed Shelves, 1 x Set of Keys, Adjustable Feet & Castors
|
Pallet Quantity: |
-
|
