Datatek 42U 600mm Deep Data Cabinet - FPS Series

The Datatek 24A42R66FPS is the flagship full-height 42U floor-standing data cabinet – delivered 100 % fully assembled and ready to accept up to 42 rack units of servers, switches, patch panels and PDUs straight out of the box.

Ideal for data centres, telco rooms, NVR farms and broadcast facilities that need maximum density without compromising on cooling, power or cable management.

Key Features & Benefits

• Heavy-duty welded cold-rolled steel frame – Black powder-coat finish
• 42U usable height × 600 mm (W) × 600 mm (D)
• Massive 800 kg static load capacity

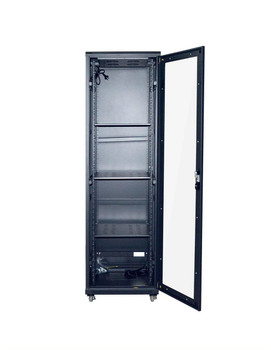

• Reversible, lockable toughened tempered-glass front door with metal frame
• Door swings >180° for total front access
• Fully removable & lockable side panels (all keyed alike)
• 4 × pre-wired 240 V high-flow ceiling fans
• 1 × vertical 6-outlet Australian GPO PDU (10 A)
• 2 × heavy-duty ventilated fixed shelves
• 4 × adjustable levelling feet + 4 × castors (2 locking)
• Large top & bottom cable entry glands
• Pre-fitted earthing cables on all doors & panels
• Compliant: ANSI/EIA RS-310-D, IEC297-2, DIN41491, ETSI
• IP20 rated

Technical Specifications

• Usable Height: 42RU (1867 mm internal)
• External Dimensions: 600 (W) × 600 (D) × 2055 (H) mm
• Internal Depth (rail-to-rear): ~540 mm
• 19″ square-hole adjustable rails front & rear
• Colour: Black RAL9004
• Weight: ~128 kg

What’s Included – Ready for Immediate Use

• 1 × 100 % assembled 42U cabinet
• 4 × Pre-wired 240 V cooling fans
• 1 × 6-way vertical Australian power rail
• 2 × Fixed shelves
• 4 × Levelling feet + 4 × castors (2 locking)
• 2 × Keys (all locks matched)
• Full earthing kit & hardware

Maximum rack space, zero assembly – the Datatek 24A42R66FPS is the best-value, fully-featured 42U cabinet you can buy. Order today and get it on-site fast!
