Datatek 42U 800mm Deep Data Cabinet - FPS Series

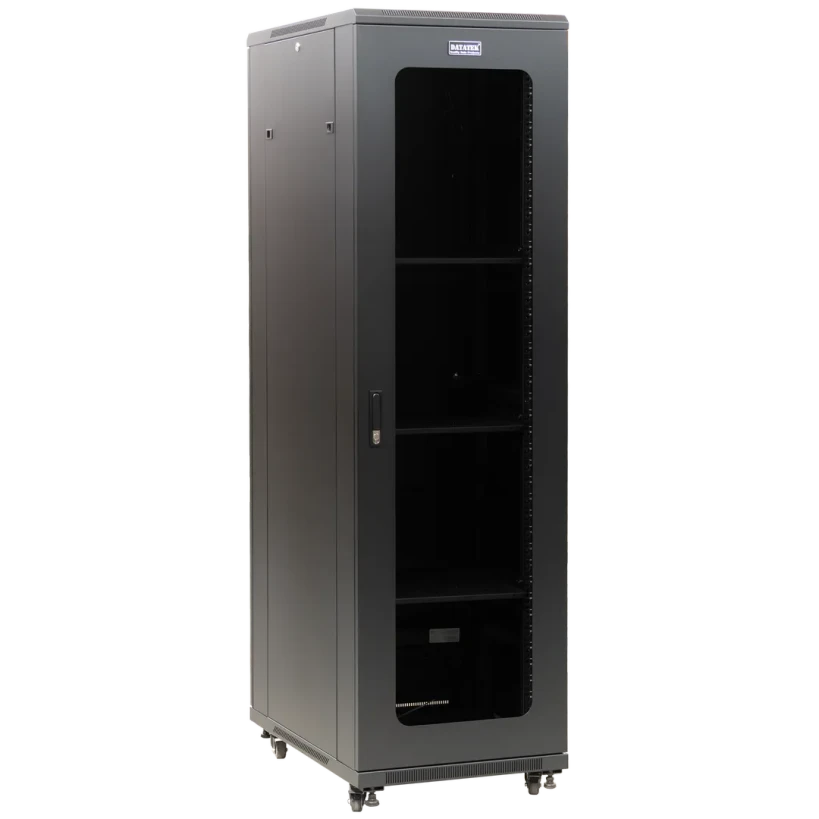

The Datatek 24A42R68FPS is the ultimate full-height 42U deep server cabinet – delivered 100 % fully assembled assembled and packed with every accessory you need for modern deep servers (Dell, HPE, Lenovo, Supermicro, blade chassis, large UPS, etc.).

800 mm usable depth (≈740 mm rail-to-rail) plus an 800 kg load rating, toughened glass door that opens >180°, lockable side panels (all keyed alike) and included cooling/power make this the smartest deep-rack solution on the market.

Key Features & Benefits

• Heavy-duty welded cold-rolled steel frame – Black powder-coat finish
• 42U height × 600 mm wide × 800 mm deep
• 800 kg static load capacity

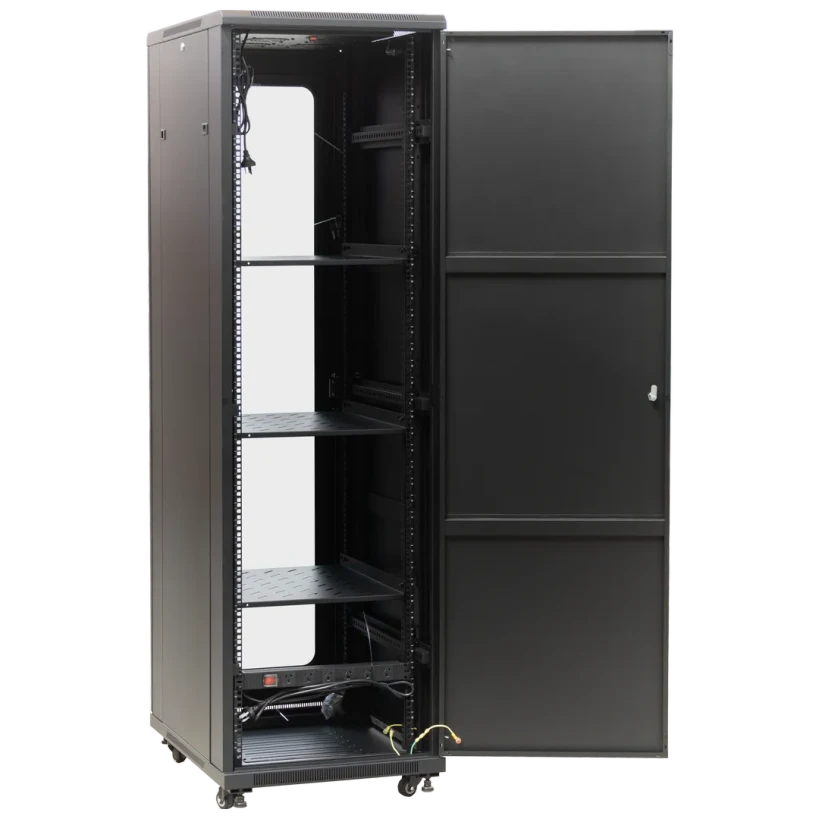

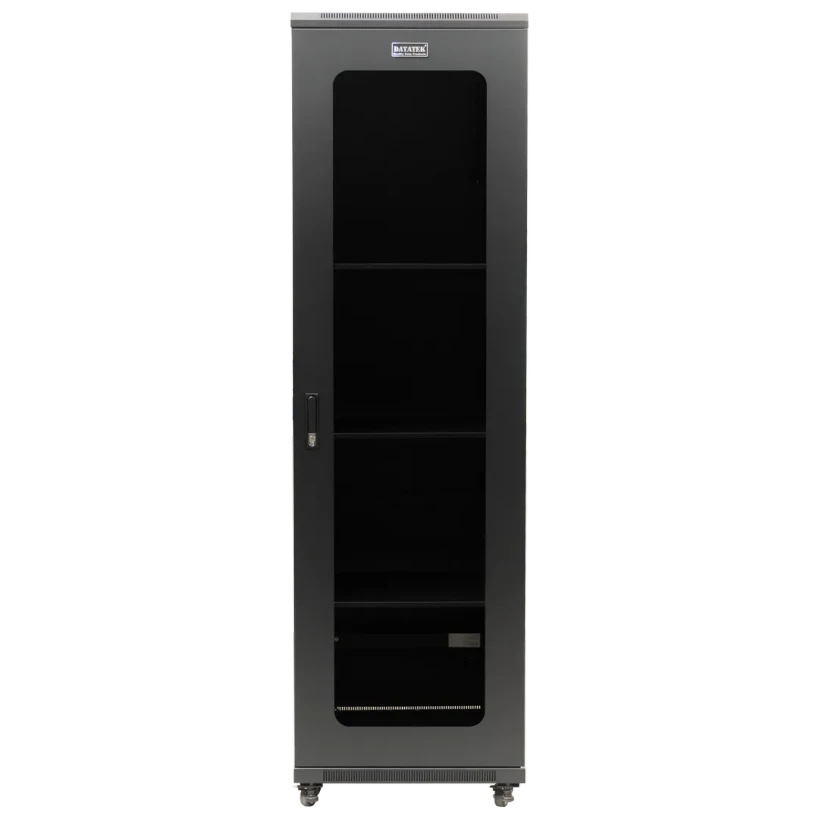

• Reversible, lockable toughened tempered-glass front door with metal surround

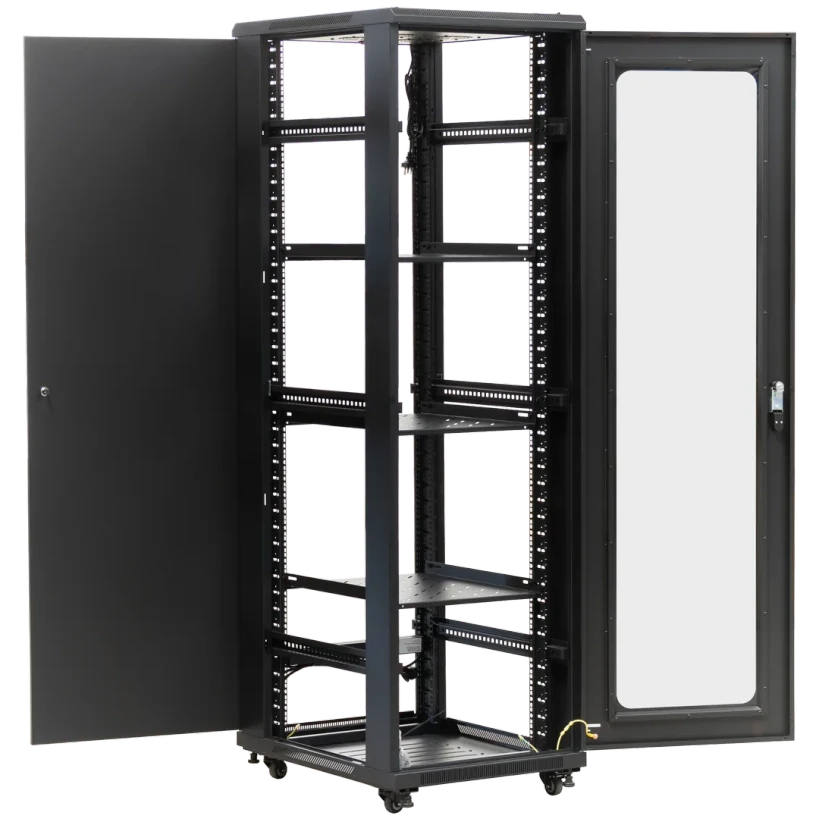

• Door swings over 180° for unrestricted front access
• Fully removable & lockable side panels (same key as front/rear)

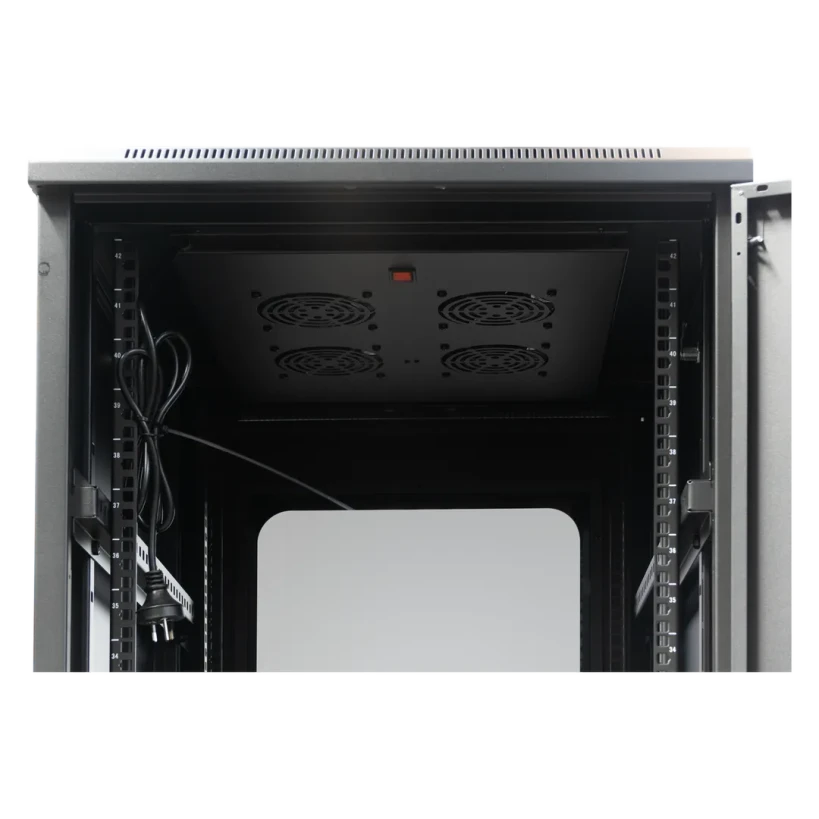

• 4 × pre-wired 240 V high-flow ceiling fans
• 1 × vertical 6-outlet Australian GPO PDU (10 A)
• 2 × heavy-duty ventilated fixed shelves
• 4 × adjustable levelling feet + 4 × castors (2 locking)
• Large top & bottom brushed cable entry glands
• Pre-fitted earthing on all panels & doors
• Compliant: ANSI/EIA RS-310-D, IEC297-2, DIN41491, ETSI
• IP20 rated

Technical Specifications

• Usable Height: 42RU (1867 mm)

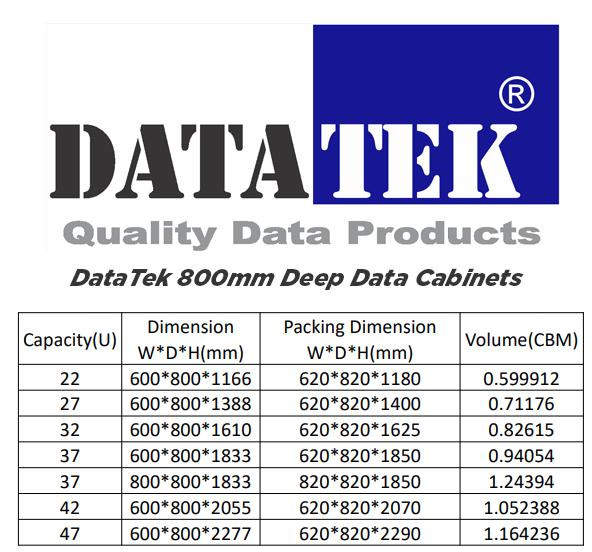

• External Dimensions: 600 (W) × 800 (D) × 2055 (H) mm
• Usable Depth (rail-to-rail): ≈740 mm
• 19″ square-hole fully adjustable rails front & rear
• Colour: Black RAL9004
• Weight: ≈138 kg

What’s Included – Ready to Go

• 1 × 100 % assembled 42U 800 mm deep cabinet
• 4 × Pre-wired 240 V cooling fans

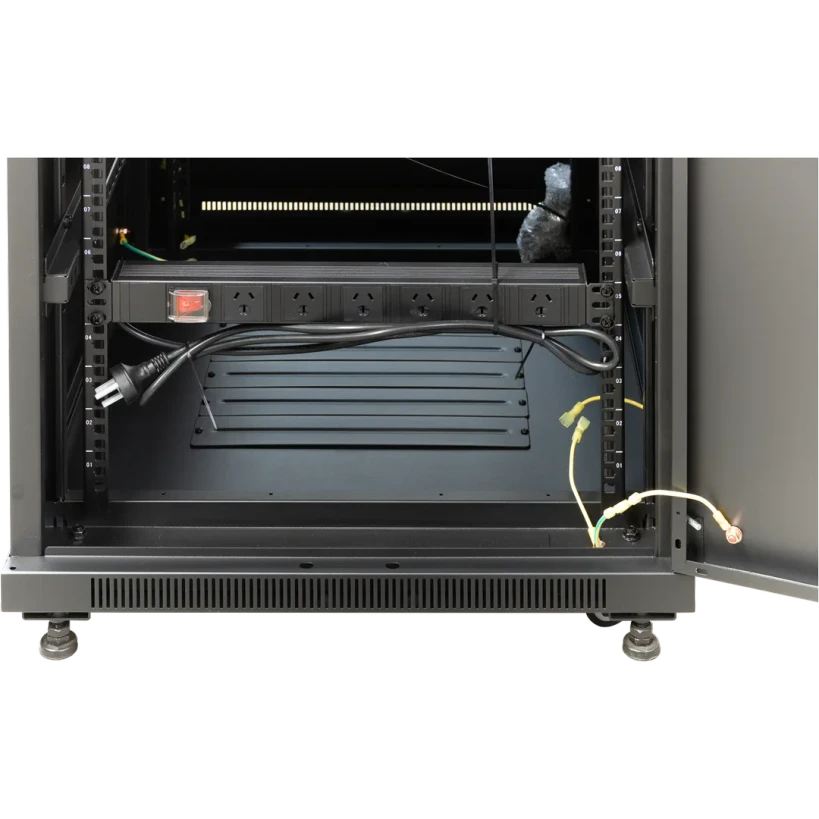

• 1 × 6-way vertical Australian power rail
• 2 × Fixed shelves
• 4 × Levelling feet + 4 × castors (2 locking)
• 2 × Keys (all locks matched)
• Full earthing kit

Fit every deep server with room to spare – order the Datatek 24A42R68FPS 42U 800 mm Deep Cabinet today and have it on-site fast!
