Datatek 45U 600mm Deep Data Cabinet - FPS Series

The Datatek 24A45R66FPS is the ultimate full-size 45U floor-standing data cabinet – delivered 100 % fully assembled and ready for the largest server rooms, data centres, broadcast facilities and colocation suites.

With a massive 45 rack units of space, 800 kg load rating, toughened glass door that opens >180°, lockable side panels (all keyed alike) and every essential accessory already fitted, this is the highest-capacity, best-value 45U cabinet available in Australia.

Key Features & Benefits

• Heavy-duty welded cold-rolled steel frame – Black powder-coat finish
• 45U usable height × 600 mm (W) × 600 mm (D)
• Huge 800 kg static load capacity
• Reversible, lockable toughened tempered-glass front door with metal frame
• Door swings >180° for total front access
• Fully removable & lockable side panels (same key as front/rear)
• 4 × pre-wired 240 V high-flow ceiling fans
• 1 × vertical 6-outlet Australian GPO PDU (10 A)
• 2 × heavy-duty ventilated fixed shelves
• 4 × adjustable levelling feet + 4 × castors (2 locking)
• Large top & bottom cable entry glands
• Pre-fitted earthing cables on all doors & panels
• Fully compliant: ANSI/EIA RS-310-D, IEC297-2, DIN41491, ETSI
• IP20 rated

Technical Specifications

• Usable Height: 45RU (2000 mm internal)
• External Dimensions: 600 (W) × 600 (D) × 2117 (H) mm
• Internal Depth (rail-to-rear): ~540 mm
• 19″ square-hole adjustable rails front & rear
• Colour: Black RAL9004
• Weight: ~135 kg

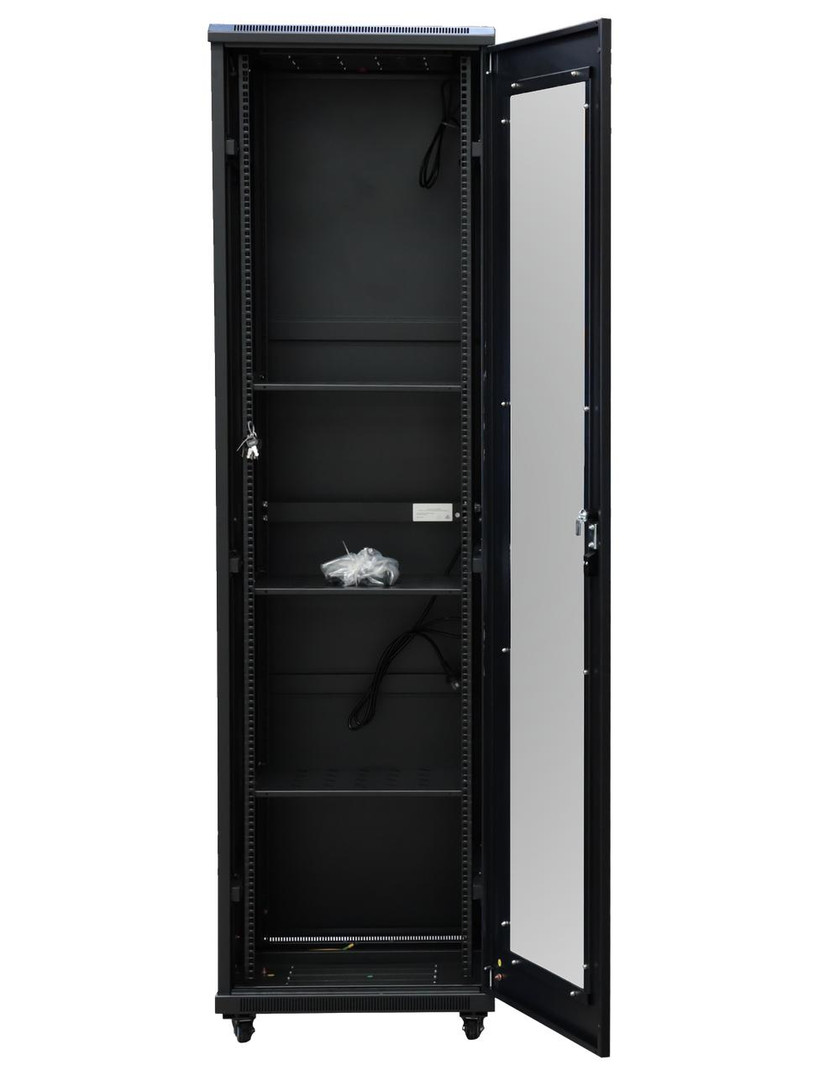

What’s Included – Ready for Immediate Deployment

• 1 × 100 % assembled 45U cabinet
• 4 × Pre-wired 240 V cooling fans
• 1 × 6-way vertical Australian power rail
• 2 × Fixed shelves
• 4 × Levelling feet + 4 × castors (2 locking)
• 2 × Keys (all locks matched)
• Full earthing kit & mounting hardware

Maximum density, zero assembly – the Datatek 24A45R66FPS is the best-value, fully-featured 45U cabinet you can buy. Order today and get it on-site fast!
