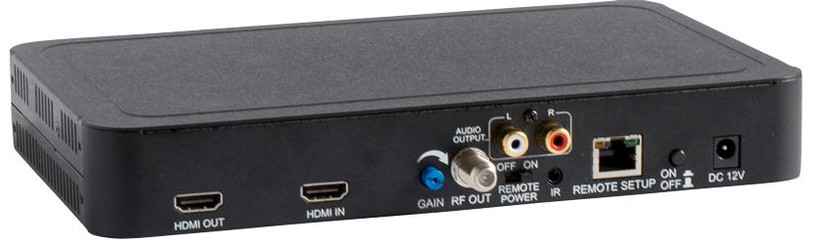

digi-MOD KT-FX1DA Single Input Modulator - Delayed Audio

The KT-FX1DA is a Foxtel-approved single input (HDMI) HD digital modulator with a delayed audio output that encodes HDMI signal to any DTV channel. Pro-programmed with a Foxtel-approved channel listing and with an output level of 90dB and MER of >38dB, the KT-FX1 makes use of video compression via H.264 AVC (MPEG-4) and audio compression via MPEG Layer II/AAC to distribute a crystal-clear HD picture over new or existing coaxial cable. On addition, the KT-FX1DA allows the modulator source audio (via RCA) to distribute to an AV amplifier – matching the latency delay of the HD picture. This is ideal for pub and club installations Programming of the KT-FX1DA is done via a web GUI and front LCD panel. It uses a frequency range of 177.5MHz to 816.5MHz (6 to 69).
