Description

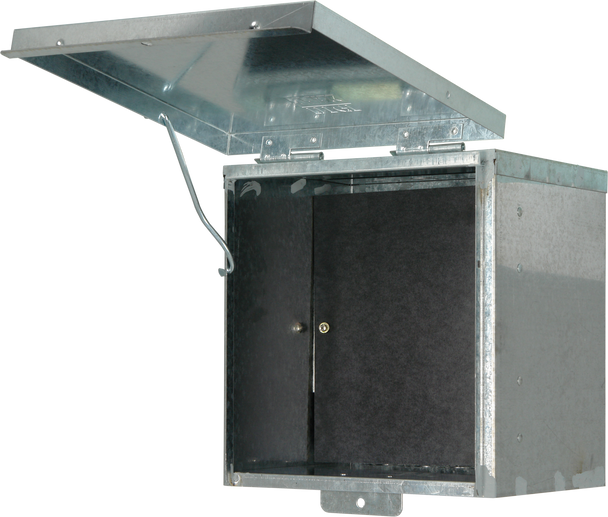

The Digitek 27MB1212U Small ACT/NSW Meter Box (12 Inch x 12 Inch) is a compact and compliant solution for electrical installations in ACT and NSW. Built from 1.2mm galvanised steel sheets (AS1397 standard) and coated with corrosive-resistant paint, this durable meter box offers long-lasting protection against environmental factors.
Designed with a removable top-hinged door and a switchable arm for left or right support, the 27MB1212U provides easy access and secure housing for electrical components. With an IP23 rating (AS1939), multiple cable knockouts, and a padlock locking point, this meter box is engineered to deliver safety and practicality in both residential and small commercial applications.
The Digitek 27MB1212U also comes with a pre-installed undrilled insulating panel (AS1795/IEC60893 compliant), ensuring extra safety and installation convenience.
Key Features:
- Compact design – Small ACT/NSW meter box measuring 342mm x 330mm x 270mm (H x W x D)
- Premium construction – Manufactured from 1.2mm galvanised steel sheets (AS1397 standard)
- Durable finish – Corrosive-resistant paint applied to all welds
- Accessible door – Removable top-hinged door with switchable left/right support arm
- Weather protection – IP23 rated to meet AS1939 standard
- Grounding and security – Includes earth stud (M5 x 20) and single padlock locking point (padlock not included)
- Cable management – 20 × 51mm knockouts positioned on the bottom, top, and back
- Protective packaging – Supplied in a sturdy cardboard box
- Included accessory – Pre-installed undrilled insulating panel (AS1795/IEC60893 compliant)
Details
Enclosure Type: |
Standard ACT/NSW Meter Box
|
Enclosure IP Rating: |
IP23 (AS1939)
|
Enclosure Grounding Point: |
Earth Stud M5 x 20
|
Enclosure Cable Knockouts: |
20 - 51mm (Bottom, Top, Back)
|
Materials: |
1.2mm Galvanised Steel Sheets (AS1397 Standard)
|
Dimensions: |
342mm x 330mm x 270mm (L x W x H)
|
Packaging: |
Brown Box with Label
|
Warranty: |
1 Year
|
Included Accessories: |
Pre Installed Undrilled Insulating Panel (AS1795/IEC60893)
|
Pallet Quantity: |
60
|
