Description

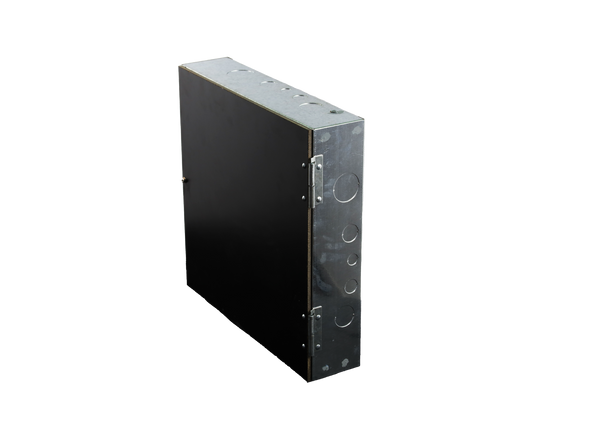

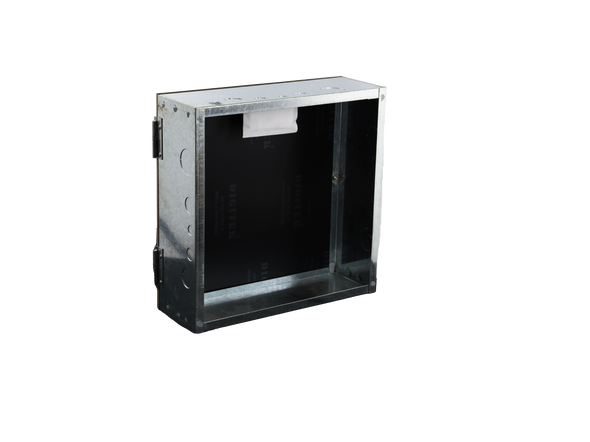

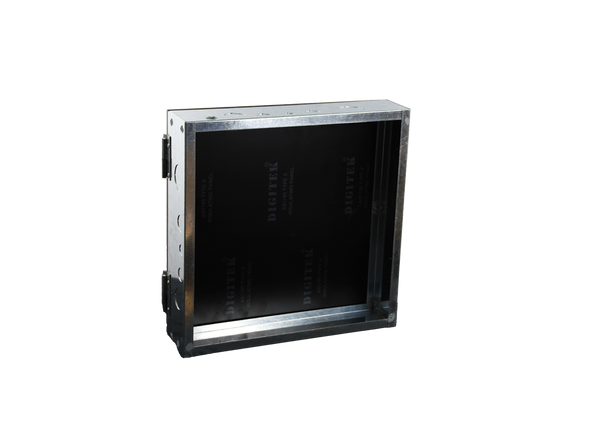

The Digitek 27MB1818U 18 Inch x 18 Inch Small ACT/NSW Meter Box is a compact, durable solution for electrical metering in Australian Capital Territory and New South Wales. Built from 1.2mm galvanised steel sheets (AS1397 standard), this meter box features a corrosion-resistant, powder-coated finish to ensure longevity in various environments. With an IP23 rating (AS1939), it provides protection against dust and light water spray, ideal for both indoor and outdoor use. Measuring 464mm x 482mm x 270mm (H x W x D), it includes a removable, top-hinged door with a switchable left/right supporting arm for flexible installation. A single padlock locking point (padlock not included) offers security, while 20-51mm cable knockouts on the top, bottom, and back allow versatile wiring options. Equipped with a pre-installed undrilled insulating panel (27MP2424UH, AS1795/IEC60893) and an M5 x 20 earth stud, this meter box ensures electrical safety and compliance. Packaged in a protective cardboard box, it’s perfect for electricians and contractors needing a reliable, small-scale enclosure for ACT/NSW applications.
Key Features:
- Small ACT/NSW Meter Box: Designed for compact electrical metering in ACT and NSW regions.
- Dimensions: 464mm x 482mm x 270mm (H x W x D) for space-efficient installations.
- Construction: 1.2mm galvanised steel sheets compliant with AS1397 standards for durability.
- Riveted Hinges and Tabs: Ensures secure assembly and easy access for maintenance.
- Corrosion-Resistant Paint: Applied to all welds to protect against rust in challenging conditions.
- Powder-Coated Finish: Provides a durable, professional appearance with resistance to wear.

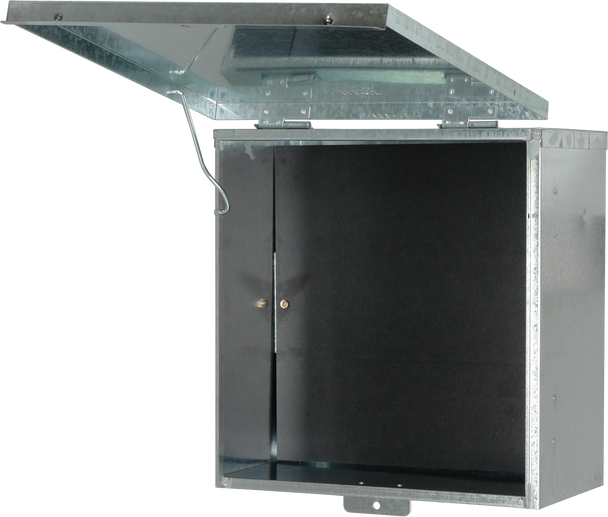

- Door Design: Removable, top-hinged door for convenient access.
- Door Support: Switchable left/right supporting arm for flexible installation options.
- IP Rating: IP23 rated per AS1939, offering protection against solid objects and light water exposure.
- Grounding Point: M5 x 20 earth stud for safe and compliant electrical grounding.
- Security: Single padlock locking point for secure closure (padlock not included).
- Cable Knockouts: 20-51mm knockouts on bottom, top, and back for versatile cable management.
- Packaging: Protective cardboard box ensures safe delivery.
- Included Accessory: Pre-installed undrilled insulating panel (27MP2424UH, AS1795/IEC60893) for electrical safety.
Details
Enclosure Type: |
Standard ACT/NSW Meter Box
|
Enclosure IP Rating: |
IP23 (AS1939)
|
Enclosure Grounding Point: |
Earth Stud M5 x 20
|
Enclosure Cable Knockouts: |
20 - 51mm (Bottom, Top, Back)
|
Materials: |
1.2mm Galvanised Steel Sheets (AS1397 Standard)
|
Dimensions: |
464mm x 482mm x 270mm (L x W x H)
|
Packaging: |
Brown Box with Label
|
Warranty: |
1 Year
|
Included Accessories: |
Pre Installed Undrilled Insulating Panel (AS1795/IEC60893)
|
Pallet Quantity: |
32
|
