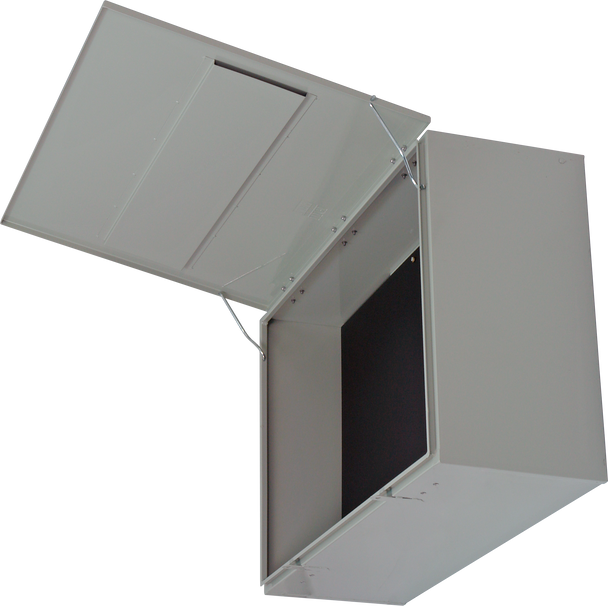

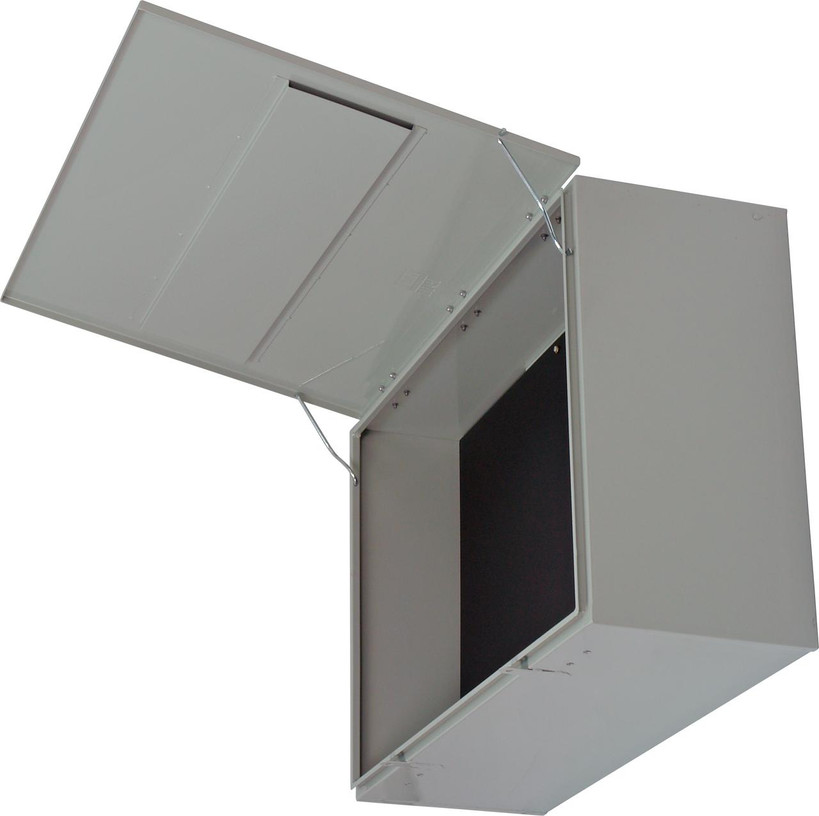

Digitek 27MB2436UA 24 Inch x 36 Inch Large ACT/NSW Meter Box

SKU:
27MB2436UA
UPC:
9340591013333
Log in for pricing

Description

The Digitek 27MB2436UA 24 Inch x 36 Inch Large ACT/NSW Meter Box is a high-performance solution for secure and compliant electrical metering in Australian Capital Territory and New South Wales. Constructed from 1.2mm galvanised steel sheets (AS1397 standard), this robust meter box features a corrosion-resistant, powder-coated finish for durability in challenging environments. With an IP23 rating (AS1939), it offers protection against solid objects and light water spray, making it suitable for both indoor and outdoor installations. The 639mm x 960mm x 330mm (H x W x D) design includes a removable, top-hinged, reinforced door with dual supporting arms and dual padlock security points (padlocks not included) for enhanced access and safety. Equipped with 20-51mm cable knockouts on the top, bottom, and back, it ensures flexible wiring options. A pre-installed undrilled insulating panel (AS1795/IEC60893) and an M5 x 20 earth stud provide electrical safety and grounding. Delivered in a protective cardboard box, this meter box is ideal for electricians, contractors, and facility managers needing a reliable, large-scale enclosure for ACT/NSW electrical applications.

Key Features:

  • Large ACT/NSW Meter Box: Designed for high-capacity electrical metering in ACT and NSW regions.
  • Dimensions: 639mm x 960mm x 330mm (H x W x D) for accommodating substantial installations.
  • Construction: 1.2mm galvanised steel sheets compliant with AS1397 standards for superior durability.
  • Riveted Hinges and Tabs: Provides secure assembly and easy maintenance access.
  • Corrosion-Resistant Paint: Applied to all welds to ensure rust protection in harsh conditions.
  • Powder-Coated Finish: Enhances aesthetic appeal and resistance to scratches and wear.
  • Door Design: Removable, top-hinged, and reinforced for convenient access and added strength.
  • Door Support: Dual left/right supporting arms for stable door operation.
  • IP Rating: IP23 rated per AS1939, offering protection against dust and light water exposure.
  • Grounding Point: M5 x 20 earth stud for safe and compliant electrical grounding.
  • Security: Dual padlock locking points for enhanced security (padlocks not included).
  • Cable Knockouts: 20-51mm knockouts on bottom, top, and back for versatile cable management.
  • Packaging: Protective cardboard box ensures safe transport and delivery.
  • Included Accessory: Pre-installed undrilled insulating panel (AS1795/IEC60893) for electrical safety.
View AllClose

Details

Enclosure Type:
Standard ACT/NSW Meter Box
Enclosure IP Rating:
IP23 (AS1939
Enclosure Grounding Point:
Earth Stud M5 x 20
Enclosure Cable Knockouts:
20 - 51mm (Bottom, Top, Back)
Materials:
1.2mm Galvanised Steel Sheets (AS1397 Standard)
Dimensions:
960mm x 639mm x 330mm (L x W x H)
Packaging:
Brown Box with Label
Warranty:
1 Year
Included Accessories:
Pre Installed Undrilled Insulating Panel (AS1795/IEC60893)
Pallet Quantity:
9
