Digitek 27MBTS3P 3 Phase Temporary Meter Box

SKU:
27MBTS3P
  • Assembled Digitek 27MBTS3P 3-phase temporary meter box on stand, showcasing 1875mm height and external 32A socket for site power

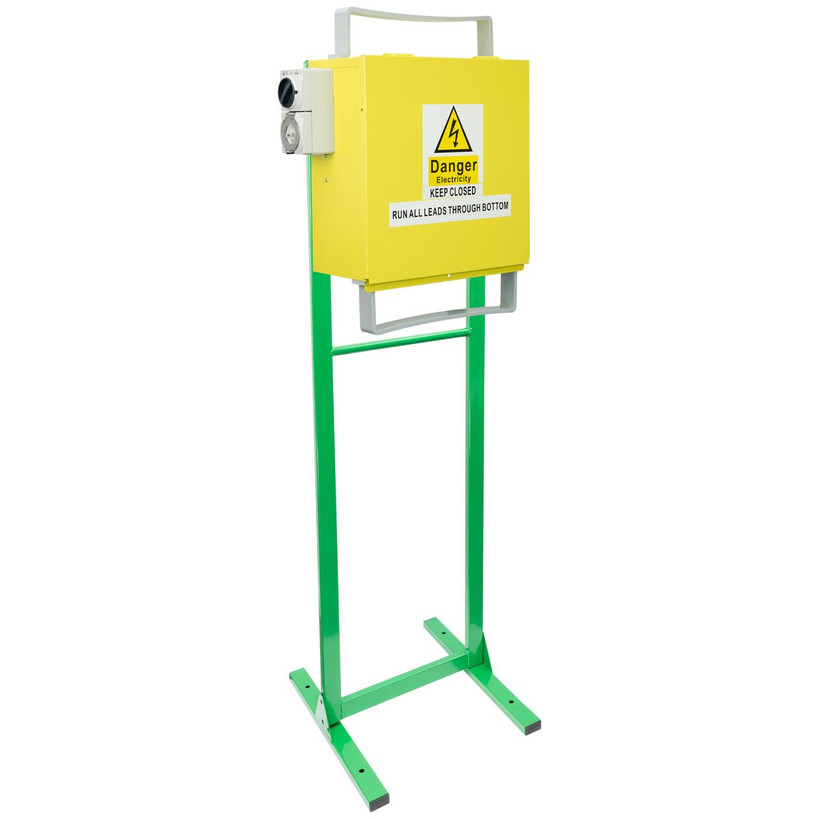

  • Assembled Digitek 27MBTS3P 3-phase temporary meter box on stand, showcasing 1875mm height
  • Digitek 27MBTS3P 3-phase temporary meter box
  • Close-up of Digitek 27MBTS3P enclosure interior with pre-installed insulating panel, RCBO, and multiple power points for safe distribution

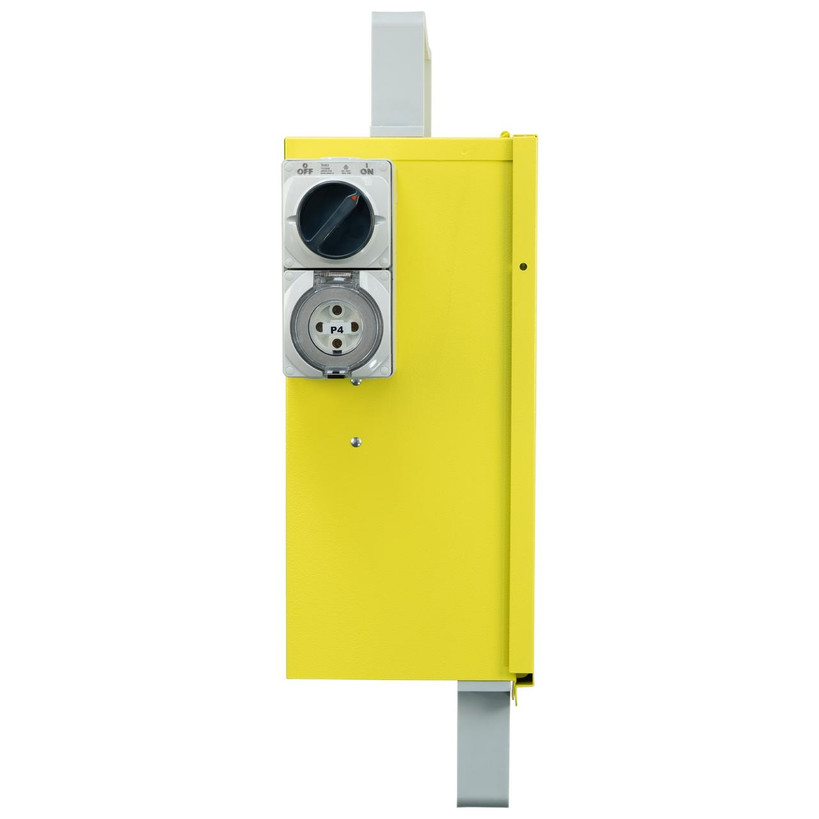

  • Side view of Digitek 27MBTS3P meter box, highlighting galvanised steel construction, hinged door, and IP23 weatherproof features

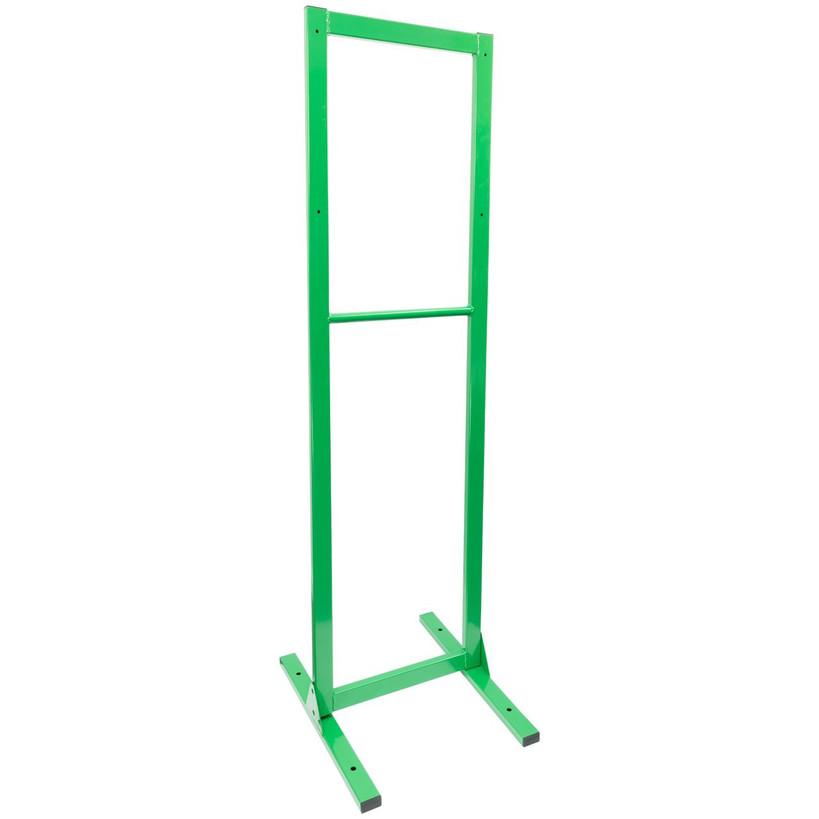

  • Green Stand for Digitek 27MBTS3P 3-phase temporary meter box
Log in for pricing

Description

Streamline your construction site power needs with the Digitek 27MBTS3P 3 Phase Temporary Meter Box, a fully assembled and tested solution designed for safe, compliant 3-phase electrical distribution in Australian residential, commercial, and temporary builds. This robust kit includes the meter box and a UV-stabilised green powder-coated stand, measuring 1875mm x 520mm x 610mm (H x W x D) assembled (plus external 3-phase socket), with the enclosure at 502mm x 505mm x 230mm (H x W x D) for compact yet spacious metering. Constructed from durable 1.2mm galvanised steel sheets (AS1397 standard) with riveted hinges, tabs, and corrosive-resistant paint on all welds, it features a gold powder-coated enclosure for enhanced visibility and longevity in harsh outdoor conditions.

The removable top-hinged door with switchable left/right arm support ensures easy access, while the IP23 rating (AS1939) protects against dust and water spray, complemented by an M5 x 20 earth stud for grounding and a single padlock locking point (padlock not included) for security. Cable management is optimised with isolated tie rods (top & bottom) and protective cardboard packaging for safe delivery. Fully wired and tested by licensed Australian electricians using SAA-approved local parts, this 2-piece kit (box and stand in separate boxes) is ready for immediate deployment on sites requiring reliable 3-phase power.

Included Accessories:

  • Pre-installed insulating panel (AS1795/IEC60893)
  • 3 Phase, 100 Amp main switch
  • 5 Pin, 32 Amp externally mounted 3-phase socket
  • 3 Phase 4 Pole Combo RCBO (32 Amp breaker & 30mA RCD)
  • 5 x 10 Amp double power points with active/neutral switching
  • 1 x 15 Amp power point
  • Lockable loom box (lock included)

Key Features:

  • 3-Phase Compliant: Handles high-demand temporary power with integrated switches, RCBO, and sockets for tools/equipment.
  • Durable Construction: Galvanised steel with UV-stabilised powder coating, riveted reinforcements, and IP23 weatherproofing.
  • Secure & Accessible: Hinged removable door, switchable arm, earth stud, and padlock-ready lock for site safety.
  • Site-Ready Design: Includes stand for freestanding use, cable restraints, and full SAA-approved wiring.
  • Australian Made & Tested: Locally sourced parts, fully assembled by licensed pros for regulatory compliance.

Ideal for builders, electricians, and contractors needing a portable, high-capacity meter box that meets Australian standards, the Digitek 27MBTS3P offers unmatched reliability and ease. Order now for fast delivery and peace of mind on your next project.



Note:  Picture is Indicative Only.  New Model is Supplied in High Vis Yellow with Green Stand
