Description

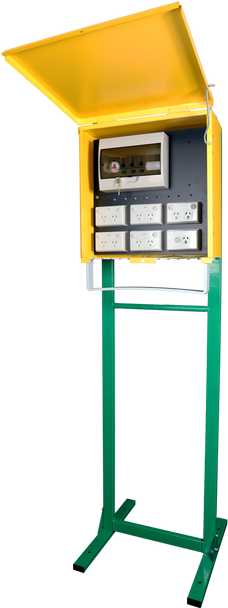

Power your construction site or temporary installation with the Digitek 27MBTSG Single Phase Temporary Meter Box, a fully assembled and tested solution designed for safe, compliant single-phase electrical distribution in Australian residential, commercial, and temporary applications. This robust kit includes a meter box and a UV-stabilised green powder-coated stand, measuring 1875mm x 520mm x 610mm (H x W x D) assembled, with the enclosure at 502mm x 505mm x 230mm (H x W x D) for compact yet spacious metering.
Constructed from durable 1.2mm galvanised steel sheets (AS1397 standard) with riveted hinges, tabs, and corrosive-resistant paint on all welds, it features a gold powder-coated enclosure for enhanced visibility and durability in harsh outdoor conditions. The removable top-hinged door with switchable left/right arm support ensures easy access, while the IP23 rating (AS1939) protects against dust and water spray. An M5 x 20 earth stud and a single padlock locking point (padlock not included) enhance safety and security, with isolated tie rods (top and bottom) for organized cable management. Packaged as a 2-piece kit in protective cardboard boxes, it’s ready for immediate deployment.
Fully wired and tested by licensed Australian electricians using SAA-approved local parts, the 27MBTSG includes a 100 Amp main switch, provision for a 3-phase socket on the main board, 5 x 10 Amp double power points with active/neutral switching, a 15 Amp power point, and a lockable loom box (lock included) for secure wiring. A pre-installed insulating panel (AS1795/IEC60893) ensures compliance and safety.
Included Accessories:
- Meter box and stand
- Pre-installed insulating panel (AS1795/IEC60893)
- 100 Amp main switch
- Provision for 3-phase socket
- 5 x 10 Amp double power points with active/neutral switching
- 1 x 15 Amp power point
- Lockable loom box (lock included)
Key Features:
- Single-Phase Power: Fully wired for high-demand temporary setups with SAA-approved components.
- Durable Construction: 1.2mm galvanised steel, UV-stabilised powder coating, IP23 weatherproofing.
- Secure & Accessible: Hinged removable door, switchable arm, earth stud, and padlock-ready lock.
- Site-Ready Design: Includes stand, cable tie rods, and provision for 3-phase socket upgrades.
- Australian Made & Tested: Licensed electricians ensure compliance with local standards.
Perfect for builders, contractors, and electricians needing a reliable, portable power solution, the Digitek 27MBTSG ensures safety and efficiency on Australian sites. Order now for fast delivery and seamless power distribution.
