Description

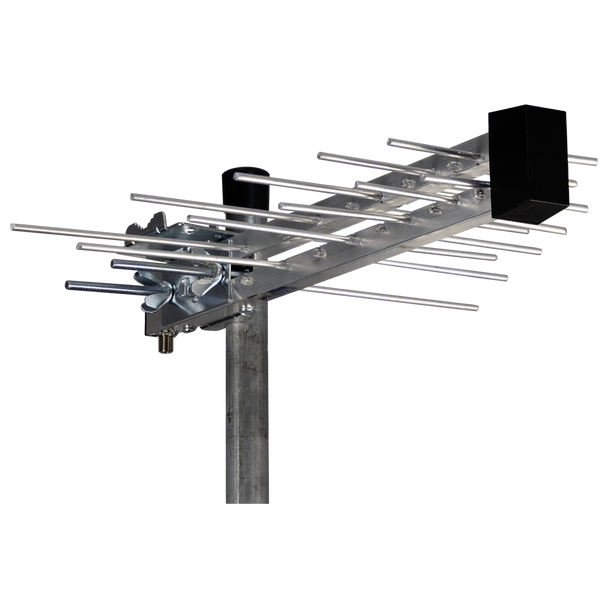

The Digitek Band 4/5 Mini UHF Log Periodic Antenna is a compact, high-efficiency solution for reliable digital TV reception in urban and suburban areas, covering UHF Band 4/5 (channels 28-69) with a balanced 8-9dBi max gain and impressive 20-30dB front-to-back ratio for superior signal clarity and minimal interference. This 20-element (10+10) log periodic design features versatile vertical or horizontal mounting, an included elevation/tilt bracket for precise alignment, and durable silver aluminum construction with UV-stabilized plastics to endure harsh weather. Pre-fitted with a V-block & U-bolt for easy rooftop or wall installation and a rubber boot for F-connector protection, it's rigorously tested for digital signals and backed by a 3-year warranty. Measuring just 400mm x 308mm x 64mm (L x W x H) and packaged in a poly bag with label, this mini UHF antenna delivers professional-grade performance in a space-saving footprint.
Features:
- Digital Reception Optimized: Designed and tested specifically for seamless Free-to-Air digital TV signals across Band 4/5 (channels 28-69).
- Heavy-Duty Component Build: Robust construction ensures longevity and stability in outdoor environments, resisting wind and weather.
- Elevation/Tilt Bracket Included: Adjustable bracket enables optimal antenna positioning for maximum signal strength.
- Versatile Mounting Flexibility: Supports both vertical and horizontal orientations to adapt to various installation scenarios.
- Premium Aluminum Materials: Silver aluminum elements with UV-stabilized plastics for corrosion resistance and UV protection.
- Balanced Log Periodic Performance: 10+10 elements provide 8-9dBi gain and 20-30dB front-to-back ratio for clean, interference-free reception.
- Complete Accessories Kit: Includes rubber boot for F-connector sealing and pre-fitted V-block & U-bolt for hassle-free setup.
- 3-Year Warranty: Extended coverage guarantees reliability and peace of mind for residential or small-scale installs.



Details
Antenna Category: |
UHF
|
Antenna Band: |
Band 4/5 (Channels 28 - 69)
|
Antenna Type: |
Log Periodic
|
Antenna Elements: |
20
|
Antenna Filter: |
N/A
|
Antenna Max Gain: |
UHF 8 - 9dBi
|
Antenna Front to Back Ratio: |
20 - 30dB
|
Antenna Materials: |
Aluminium, UV Stabilised Plastics
|
Colour: |
Silver
|
Antenna Dimensions: |
400mm x 308mm x 64mm (L x W x H)
|
Included Accessories: |
Rubber Boot (For F Connector), V Block & U Bolt fitted to antenna
|
Unit Packaging: |
Poly Bag with Label
|
Warranty: |
3 Year
|
Carton Quantity: |
10
|
Pallet Quantity: |
900
|
Product Information Sheet: |
