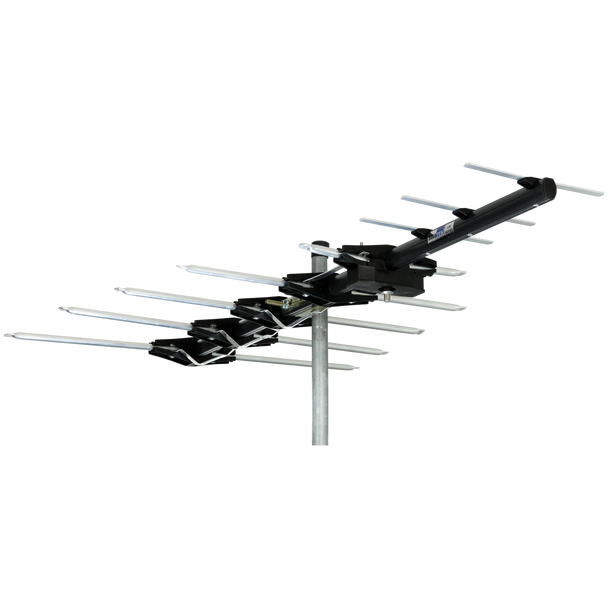

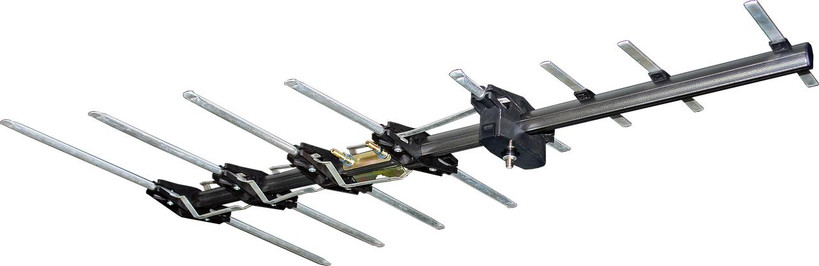

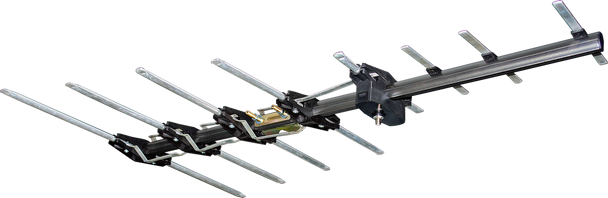

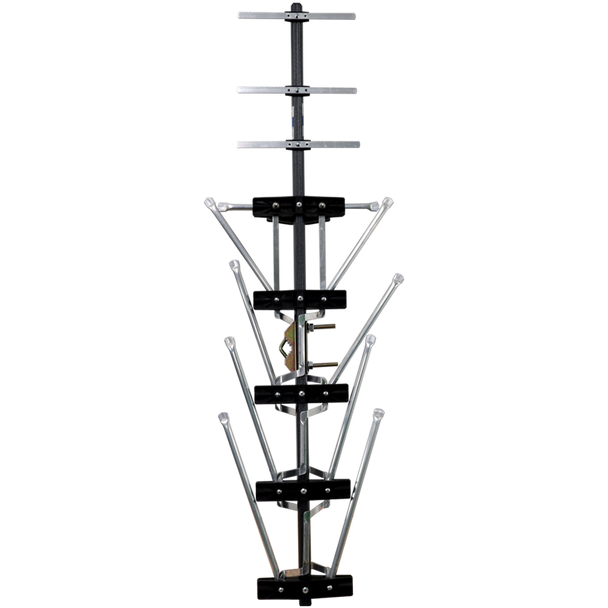

Digitek LTE Series 12 Element Metropolitan Premium YAGI UHF/VHF Combination Antenna

SKU:
01ACD12L
UPC:
9340591004249
  • Digitek LTE Series 12 Element Metropolitan Premium YAGI UHF/VHF Combination Antenna
  • Digitek LTE Series 12 Element Metropolitan Premium YAGI UHF/VHF Combination Antenna
  • Digitek LTE Series 12 Element Metropolitan Premium YAGI UHF/VHF Combination Antenna
  • Digitek LTE Series 12 Element Metropolitan Premium YAGI UHF/VHF Combination Antenna
  • Digitek LTE Series 12 Element Metropolitan Premium YAGI UHF/VHF Combination Antenna
Log in for pricing

Description

Digitek LTE Series 12 Element Metropolitan Premium YAGI UHF/VHF Combination Antenna

Features:

  • F-Type Balun with LTE Low Pass Filter
  • Snap out reflectors
  • Stainless Steel screws on connection points
  • Designed and tested in Australia for Australian Conditions
  • Heavy Duty construction on all components
  • 12mm extruded aluminium heavy duty elements
  • Tough powder coated finish
  • UV stabilised plastics
  • Bifurcated rivets - Strongest in the industry
  • U-bolts & Clamps fitted
  • Foxtel Approved IPL # F31169

View AllClose

Specifications

Specifications
  • Antenna Category: Combination UHF/VHF
  • Antenna Type: Yagi
  • Antenna Elements: 12
  • Antenna Band: Band 3 (Channels 6 - 12) & Band 4 (Channels 28 - 35)
  • Antenna Filter: LTE (4G/5G)
  • Antenna Max Gain: UHF 4dB & VHF 11dB
  • Antenna Front to Back Ratio: UHF >23dB & VHF >11dB
  • Antenna Materials: Aluminium, UV Stabilised Plastics
  • Antenna Dimensions: 1060mm x 710mm x 80mm (L x W x H)
  • Colour: Charcoal (Hammertone), Silver Elements
  • Packaging: Poly Bag with Label
  • Warranty: 3 Year
    Included Accessories

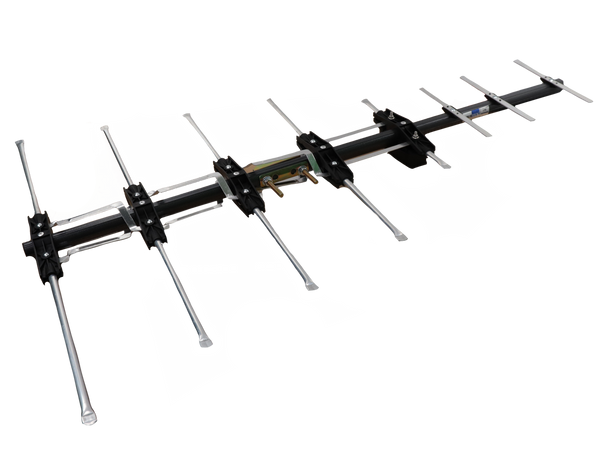

  • Rubber Boot (For F Connector), V Block & U Bolt fitted to antenna
    Pack Quantities
  • Carton Quantity: 10
  • Pallet Quantity: 120
    • View AllClose

    Details

    Antenna Category:
    Combination UHF/VHF
    Antenna Band:
    Band 3 (Channels 6 - 12) & Band 4 (Channels 28 - 35)
    Antenna Type:
    YAGI
    Antenna Elements:
    12
    Antenna Filter:
    LTE (4G/5G)
    Antenna Max Gain:
    UHF 4dB & VHF 11dB
    Antenna Front to Back Ratio:
    UHF >23dB & VHF >11dB
    Antenna Materials:
    Aluminium, UV Stabilised Plastics
    Colour:
    Charcoal (Hammertone), Silver Elements
    Antenna Dimensions:
    1060mm x 710mm x 80mm (L x W x H)
    Included Accessories:
    Rubber Boot (For F Connector), V Block & U Bolt fitted to antenna
    Unit Packaging:
    Poly Bag with Label
    Warranty:
    3 Year
    Carton Quantity:
    10
    Pallet Quantity:
    120
    Product Information Sheet:
    VIEW PDF
    View AllClose
