Description

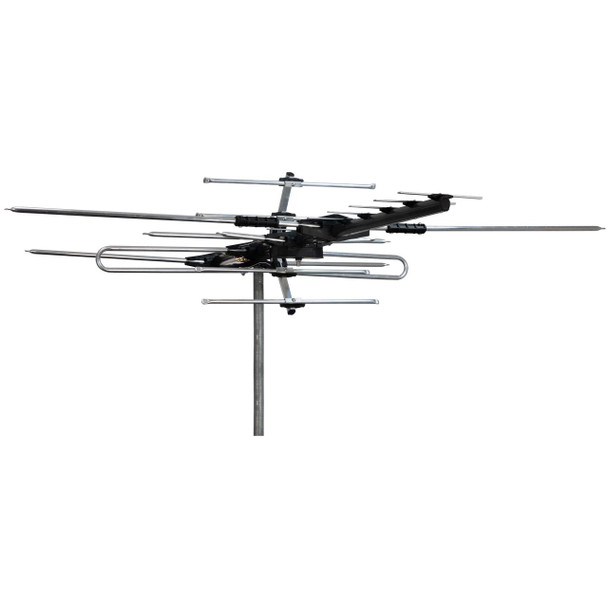

Achieve outstanding digital TV performance in outer metropolitan zones with the Digitek LTE Series 14-Element Outer Metropolitan Premium YAGI UHF/VHF Antenna – a high-capacity hybrid solution for capturing both VHF and UHF signals in expanding urban fringes. Meticulously designed and tested in Australia to conquer local environmental challenges, this combination Yagi antenna excels at Band 3 (Channels 6-12) and Band 4 (Channels 28-35) reception, with an advanced LTE low-pass filter that eradicates 4G/5G interference for pristine, buffer-free HD entertainment. Offering impressive UHF 11dBi and VHF 12.5dBi gains alongside front-to-back ratios over 16dB for each band, its 14-element configuration from robust 12mm extruded aluminium ensures focused, reliable signals in variable conditions. Featuring UV-stabilised plastics and a resilient powder-coated finish, this heavy-duty antenna is suited for larger homes, estates, or semi-rural properties, with snap-out assembly and a 3-year warranty for hassle-free longevity.
Features:
- F-Type Balun with LTE Low Pass Filter: Advanced protection against 4G/5G disruptions for uncompromised UHF and VHF TV clarity.
- Snap-Out Reflectors and Folded Dipole: User-friendly, tool-less setup for rapid reflector and dipole integration.
- Stainless Steel Screws on Connection Points: High-corrosion resistance for enduring performance in damp or salty outer metro climates.
- Australian-Designed and Tested: Engineered specifically for Aussie extremes, including high winds and intense UV.
- Heavy-Duty Construction: Fortified components throughout for superior stability and weatherproofing.
- 12mm Extruded Aluminium Elements: Thick, premium-grade tubing for optimal strength and directional signal enhancement.
- UV-Stabilised Plastics and Tough Powder-Coated Finish: Long-lasting, non-fading materials in charcoal hammertone with silver elements for a premium outdoor vibe.
- Bifurcated Rivets: The most secure rivets in the sector, guaranteeing rock-solid assembly and vibration resistance.
Applications:
- Outer Metropolitan TV Reception: Amplifies combined UHF/VHF signals in sprawling suburbs for comprehensive Band 3 and 4 channel coverage.
- Expanding Urban Fringe Homes: Ideal for properties on city outskirts facing signal fade, ensuring full digital TV access.
- Semi-Rural and Estate Setups: Powers entertainment in larger grounds or estates with mixed VHF/UHF needs.
- Multi-Band Signal Challenges: Versatile for areas requiring balanced gains across Ch 6-12 and Ch 28-35 without separate antennas.




Details
Antenna Category: |
Combination UHF/VHF
|
Antenna Band: |
Band 3 (Channels 6 - 12) & Band 4 (Channels 28 - 35)
|
Antenna Type: |
YAGI
|
Antenna Elements: |
14
|
Antenna Filter: |
LTE (4G/5G)
|
Antenna Max Gain: |
UHF 11dB & VHF 12.5dB
|
Antenna Front to Back Ratio: |
UHF >16dB & VHF >16dB
|
Antenna Materials: |
Aluminium, UV Stabilised Plastics
|
Colour: |
Charcoal (Hammertone), Silver Elements
|
Antenna Dimensions: |
1240mm x 1318mm x 340mm (L x W x H)
|
Included Accessories: |
Rubber Boot (For F Connector), V Block & U Bolt fitted to antenna
|
Unit Packaging: |
Poly Bag with Label
|
Warranty: |
3 Year
|
Carton Quantity: |
10
|
Pallet Quantity: |
40
|
