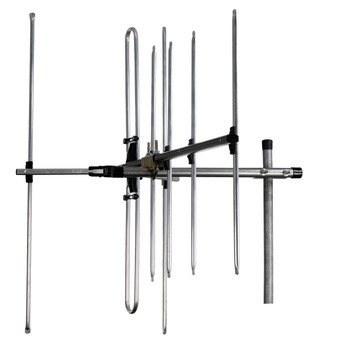

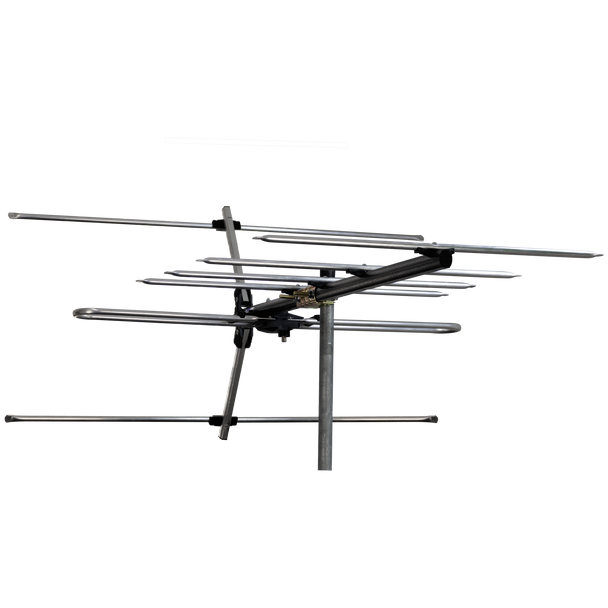

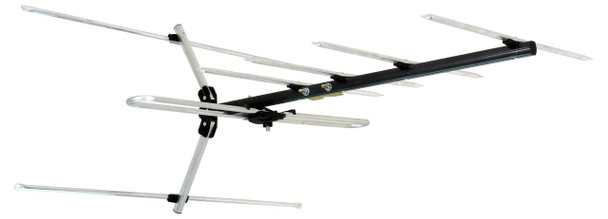

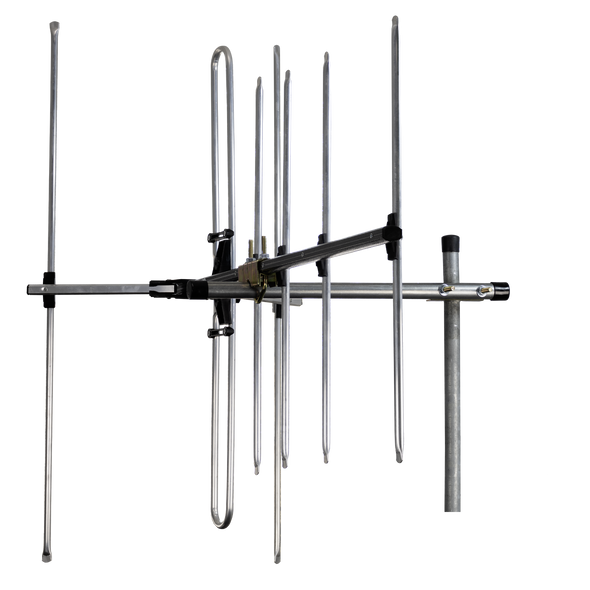

Digitek LTE Series 7 Element Metropolitan Premium YAGI VHF Antenna

SKU:
01DV307L
UPC:
9340591004218
  • Digitek LTE Series 7 Element Metropolitan Premium YAGI VHF Antenna
  • Digitek LTE Series 7 Element Metropolitan Premium YAGI VHF Antenna
  • Digitek LTE Series 7 Element Metropolitan Premium YAGI VHF Antenna
Log in for pricing

Description

Digitek LTE Series 7 Element Metropolitan Premium YAGI VHF Antenna

Features:

  • F-Type Balun with LTE Low Pass Filter
  • Snap out reflectors
  • Stainless Steel screws on connection points
  • Heavy Duty construction on all components
  • Designed & engineered in Australia for Australian conditions & Australian digital television transmissions
  • 12mm extruded aluminium heavy-duty elements
  • Tough powder coated finish
  • UV stabilised plastics
  • Bifurcated rivets - Strongest in the industry
  • Horizontal and vertical mounting options
  • U-bolts & Clamps fitted

View AllClose

Specifications

Specifications
  • Antenna Category: VHF
  • Antenna Type: Yagi
  • Antenna Elements: 7
  • Antenna Band: Band 3 (Channels 6 - 12)
  • Antenna Filter: LTE (4G/5G)
  • Antenna Max Gain: VHF >11dB
  • Antenna Front to Back Ratio: 21dB
  • Antenna Materials: Aluminium, UV Stabilised Plastics
  • Antenna Dimensions: 1095mm x 900mm x 600mm (L x W x H)
  • Colour: Charcoal (Hammertone), Silver Elements
  • Packaging: Poly Bag with Label
  • Warranty: 3 Year
    Included Accessories
  • Rubber Boot (For F Connector), V Block & U Bolt fitted to antenna
    Pack Quantities
  • Carton Quantity: 10
  • Pallet Quantity: 100
  • View AllClose

    Details

    Antenna Category:
    VHF
    Antenna Band:
    Band 3 (Channels 6 - 12)
    Antenna Type:
    Yagi
    Antenna Elements:
    7
    Antenna Filter:
    LTE (4G/5G)
    Antenna Max Gain:
    VHF>11dB
    Antenna Front to Back Ratio:
    21dB
    Antenna Materials:
    Aluminium, UV Stabilised Plastics
    Colour:
    Charcoal (Hammertone), Silver Elements
    Antenna Dimensions:
    1095mm x 900mm x 600mm (L x W x H)
    Included Accessories:
    Rubber Boot (For F Connector), V Block & U Bolt fitted to antenna
    Unit Packaging:
    Poly Bag with Label
    Warranty:
    3 Years
    Carton Quantity:
    10
    Pallet Quantity:
    100
    Product Information Sheet:
