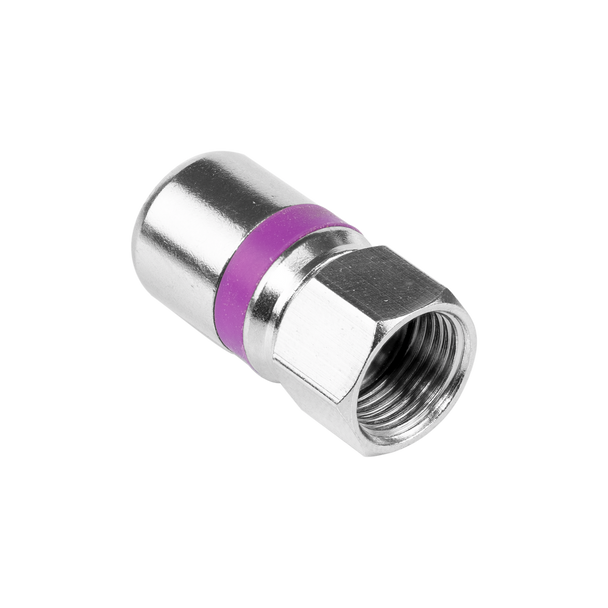

Digitek RG6 Dual/Tri Self Locking F Type Connector

The Digitek RG6 Dual/Tri Self-Locking F Type Connector provides a quick, reliable, and professional-grade solution for terminating RG6 coaxial cables—no crimping or compression tools required.

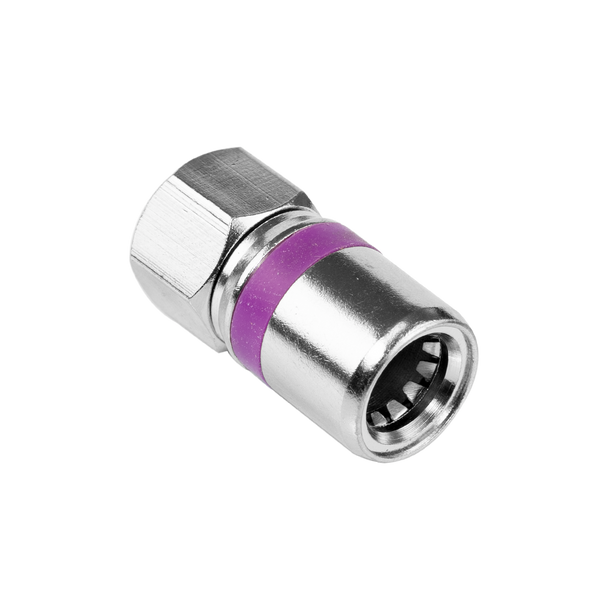

This innovative self-locking design allows the connector to automatically attach when the cable is fully inserted. Its precision-engineered teeth-ring ensures a strong, permanent hold that prevents accidental cable removal, while the fixed centre barrel maintains a stable connection without relying on external compression.

Manufactured from nickel-plated brass for exceptional corrosion resistance and minimal signal loss, this compact connector is ideal for professional installers and DIY enthusiasts alike. Perfect for TV, satellite, CCTV, and broadband coaxial applications, it combines convenience, durability, and performance in one simple push-on design.

Features:

• Tool-free installation – simply strip the cable and push to lock
• Self-locking design with internal teeth-ring for secure cable retention
• Universal fit for RG6 Dual and Tri Shield Coaxial Cable
• 11mm (7/16”) hex nut provides strong, stable connection
• Nickel-plated brass body ensures superior corrosion resistance and low signal loss
• Compact size – under 23mm overall length
• Frequency range: 5MHz – 3000MHz
• For indoor use only
• Compatible with Digitek cable stripping tools (16A06 / 16A06A)
• Ideal for TV, satellite, and CCTV installations
