Description
Hikvision DS-7608NI-12/8P V4 4T Network Video Recorder
Features:
- Up to 8 channel IP cameras can be connected
- Up to 2-ch@12 MP/16-ch@1080p decoding capacity
- 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
- 2 HDDs for continuous video recording
- Plug & Play with 8 Power-over-Ethernet (PoE) interfaces
- Supports various special function cameras, including thermal camera/fisheye/people counting/heatmap/ANPR (automatic number plate recognition)
- Advanced streaming technology enables smooth live view and data self-correction in poor network conditions
- Supports dual-stream recording to save time and bandwidth
- Up to 8-ch IP speakers can be connected
Specifications
| Video and Audio | |
|---|---|
| IP Video Input | 8 channels, Up to 12 MP resolution |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| HDMI Output |
4K (3840 × 2160)/60Hz 4K (3840 × 2160)/30Hz 1920 × 1080/60Hz 1600 × 1200/60Hz 1280 × 1024/60Hz 1280 × 720/60Hz 1024 × 768/60Hz |
| VGA Output |
1920 × 1080/60Hz 1280 × 1024/60Hz 1280 × 720/60Hz 1024 × 768/60Hz |
| Video Output Mode | HDMI/VGA independent output |
| Audio Input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Decoding | |
| Dual-Stream Recording | Support |
| Decoding Format | H.265/H.265+/H.264/H.264+/MPEG4 |
| Decoding Capability | 2-ch@12 MP (20 fps) / 4-ch@8 MP (25 fps) / 8-ch@4 MP (30 fps) / 16-ch@1080p (30 fps) |
| Synchronous Playback | 8-ch |
| Recording Resolution | 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw / G.711alaw / G.722 / G.726 |
| Network | |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF (Version 2.2), OTAP |
| Remote Connection | 64 |
| Network Interface | 1 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Camera Access Protocol | ONVIF (Version 2.5), RTSP |
| PoE | |
| Interface | 8 × RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 120 W |
| Standard | IEEE 802.3 af/at |
| Auxiliary Interface | |
| SATA | 2 SATA interfaces |
| Capacity | Up to 16 TB capacity for each disk |
| Alarm In/Out | 4/1 |
| USB Interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
| General | |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Power Consumption | ≤ 15 W (without HDD and PoE off) |
| Working Temperature | -10 to +55°C (+14 to +131°F) |
| Working Humidity | 10% to 90% |

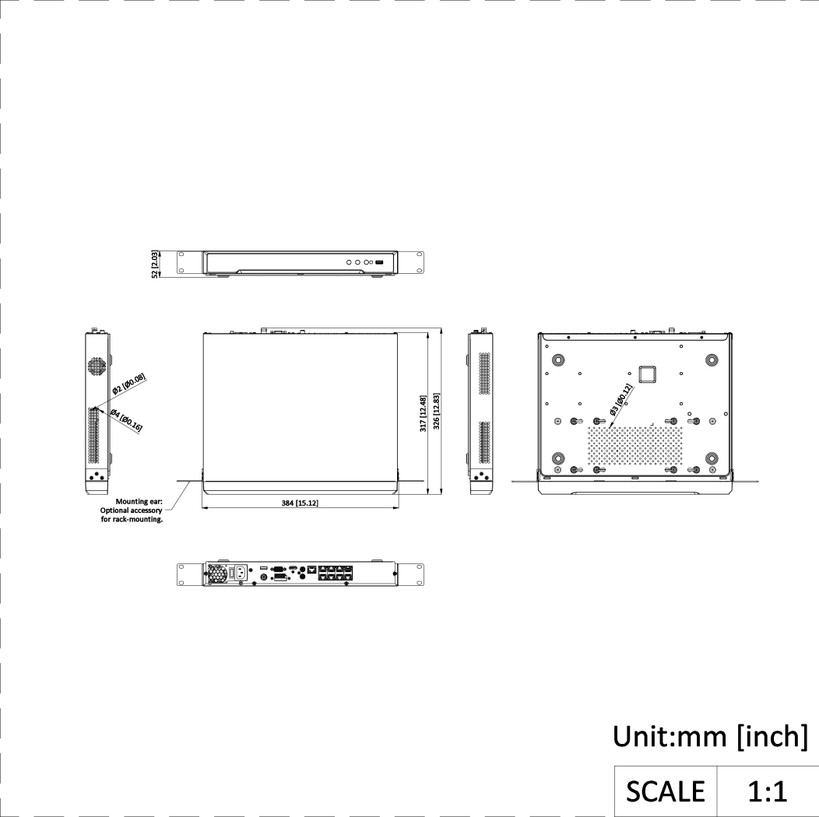

| Dimensions (W × D × H) | 385 × 315 × 52 mm (15.2" × 12.4" × 2.0") |
| Weight | ≤ 3 kg (without HDD, 6.6 lb.) |
| Certification | |
| CE Standards | EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4 |
| Obtained Certification | CE, CB, UKCA, IC |
Details
Product Information Sheet: |
|
User Manual: |
|
Quick Start Guide: |
|
Communication Matrix: |
Have You Tried These Products?

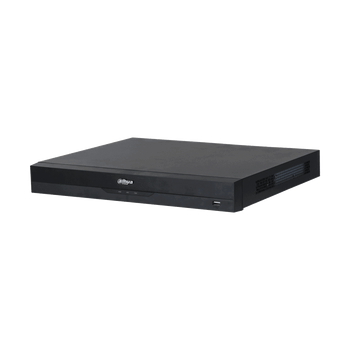

Dahua NVR4208-8P-AI/ANZ-4T 8-Channels WizSense NVR - 4TB HDD
Dahua
Dahua NVR4208-8P-AI/ANZ-4T 8-Channels WizSense NVR is a new generation of network recorders that offers powerful decoding capabilities, and strong bandwidth. It features high-precision face...
28DHI-NVR4208-8P-AI/ANZ-4T
Dahua Lite Series DHI-NVR4108HS-8P-4KS2/L 8 Channel NVR
Dahua
Dahua Lite Series NVR – 8 Channel Compact 1HDD 1U 8PoE Network Video Recorder supports for 4K and H.265 encoding technology with excellent performance at an affordable price. For applications where...
28DHI-NVR4108HS-8P-4KS2/L

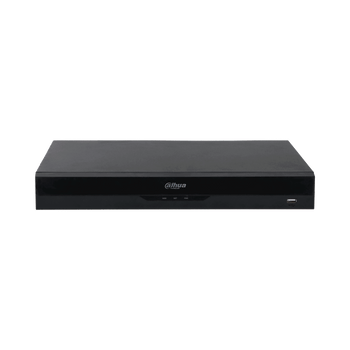

Dahua Pro Series DHI-NVR4108HS-8P-AI/ANZ 8 Channel NVR
