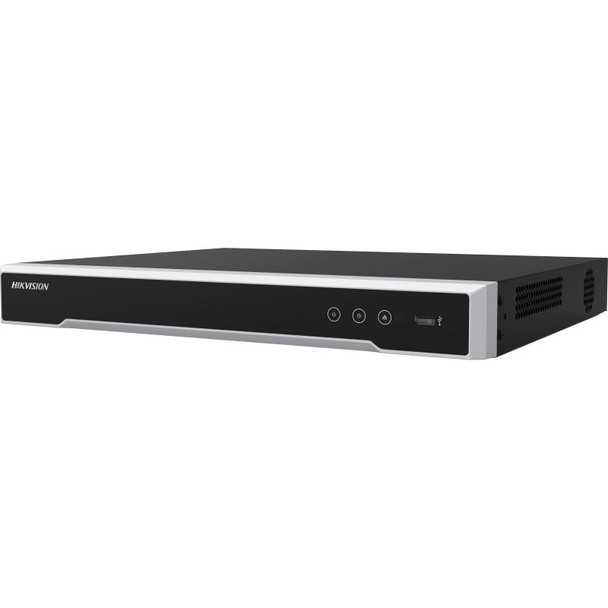

Hikvision DS-7608NI-12/8P V4 4T NVR

Video and Audio

• IP Video Input: 8 channels, Up to 12 MP resolution
• Incoming Bandwidth: 80 Mbps
• Outgoing Bandwidth: 256 Mbps
• HDMI Output:
  • 4K (3840 × 2160)/60Hz
  • 4K (3840 × 2160)/30Hz
  • 1920 × 1080/60Hz
  • 1600 × 1200/60Hz
  • 1280 × 1024/60Hz
  • 1280 × 720/60Hz
  • 1024 × 768/60Hz
• VGA Output:
  • 1920 × 1080/60Hz
  • 1280 × 1024/60Hz
  • 1280 × 720/60Hz
  • 1024 × 768/60Hz
• Video Output Mode: HDMI/VGA independent output
• Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

• Dual-Stream Recording: Support
• Decoding Format: H.265/H.265+/H.264/H.264+/MPEG4
• Decoding Capability: 2-ch@12 MP (20 fps)/4-ch@8 MP (25 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps)
• Synchronous Playback: 8-ch
• Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Stream Type: Video, Video & Audio
• Audio Compression: G.711ulaw/G.711alaw/G.722/G.726

Network

• Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF (Version 2.2), OTAP
• Remote Connection: 64
• Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• Camera Access Protocol: ONVIF (Version 2.5), RTSP

PoE

• Interface: 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power: ≤ 120 W
• Standard: IEEE 802.3 af/at

Auxiliary Interface

• SATA: 2 SATA interfaces
• Capacity: Up to 16 TB capacity for each disk
• Alarm In/Out: 4/1
• USB Interface: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0

General

• Power Supply: 100 to 240 VAC, 50 to 60 Hz
• Consumption: ≤ 15 W (without HDD and PoE off)
• Working Temperature: -10 to +55º C (+14 to +131º F)
• Working Humidity: 10% to 90%
• Dimension (W × D × H): 385 × 315 × 52 mm (15.2" × 12.4" × 2.0")
• Weight: ≤ 3 kg (without HDD, 6.6 lb.)

Certification

• CE: EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
• Obtained Certification: CE, CB, UKCA, IC
