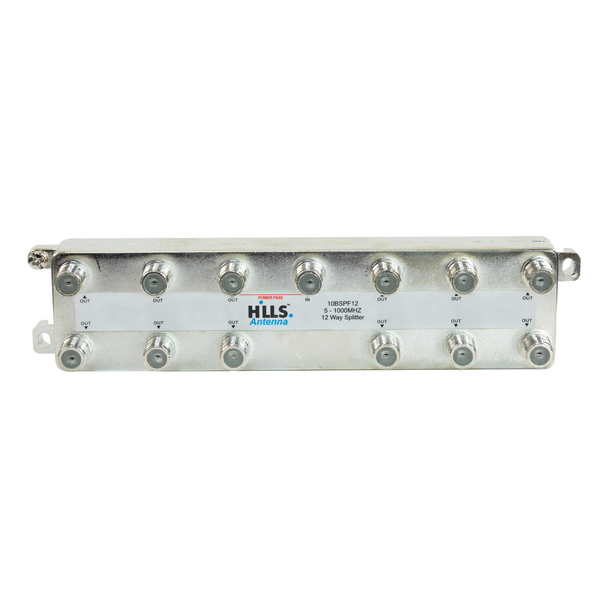

Hills Antenna 12 Way 5-1000MHz F Type Splitter - 1 Leg Power Pass

Transform your home into a multi-room TV haven with the Hills Antenna 12-Way 5-1000MHz F-Type Splitter (10BSPF12), the powerhouse Free-To-Air (FTA) distributor that delivers unwavering signal strength to every screen. Tailored for Australian families and savvy installers, this robust coaxial splitter fans out one input to 12 precise outputs across the full 5-1000MHz spectrum, capturing sharp digital FTA channels, HDTV broadcasts, and beyond with ease. Boasting ultra-low insertion loss (as low as 12.5dB in prime bands) and stellar isolation (≥25dB mutual), it guarantees uniform, pixel-perfect performance—whether wiring a bustling household, apartment complex, or outdoor entertainment zone.

Encased in a sleek, tin-plated zinc die-cast shell for unbeatable shielding (≥100dB screening), this lightweight wonder sports all F-Type female connectors (75Ω) for snag-free, rust-proof hookups. The single power pass leg (24V 0.8A max) energizes your antenna amp or booster on the fly, while user-friendly mounting with included screws and earth points makes setup a snap. Ditch signal woes and embrace endless viewing—your all-in-one FTA upgrade awaits!

Key Features:

• 12-Way Balanced Splitting: Divides coaxial input to 12 F-Type female outputs (75Ω), optimized for FTA TV, HDTV, and whole-home signal sharing without weak spots
• Broadband Excellence: Spans 5-1000MHz with minimal insertion loss (12.5-14dB by band), top mutual isolation (≥22-25dB), and return loss (≥17-20dB) for interference-free reception
• Effortless Power Boost: Dedicated single port handles 24V 0.8A max to power masthead amps or LNBs, streamlining your FTA setup sans additional wiring
• Shielded Die-Cast Durability: Tin-plated zinc housing delivers ≥100dB screening to squash EMI and noise, built tough for indoor or semi-exposed longevity
• Advanced Micro-Strip Tech: Circuitry ensures flawless performance metrics, matching signals perfectly for vibrant FTA channels and digital clarity
• Hassle-Free Mounting: Ultra-compact and light with dual edge holes, plus supplied mounting/earth screws for pro-level installs in minutes
• Reliable F-Connectors: All-ports F-Type female for solid, weather-tough links with RG6/RG59 cables and everyday FTA equipment
