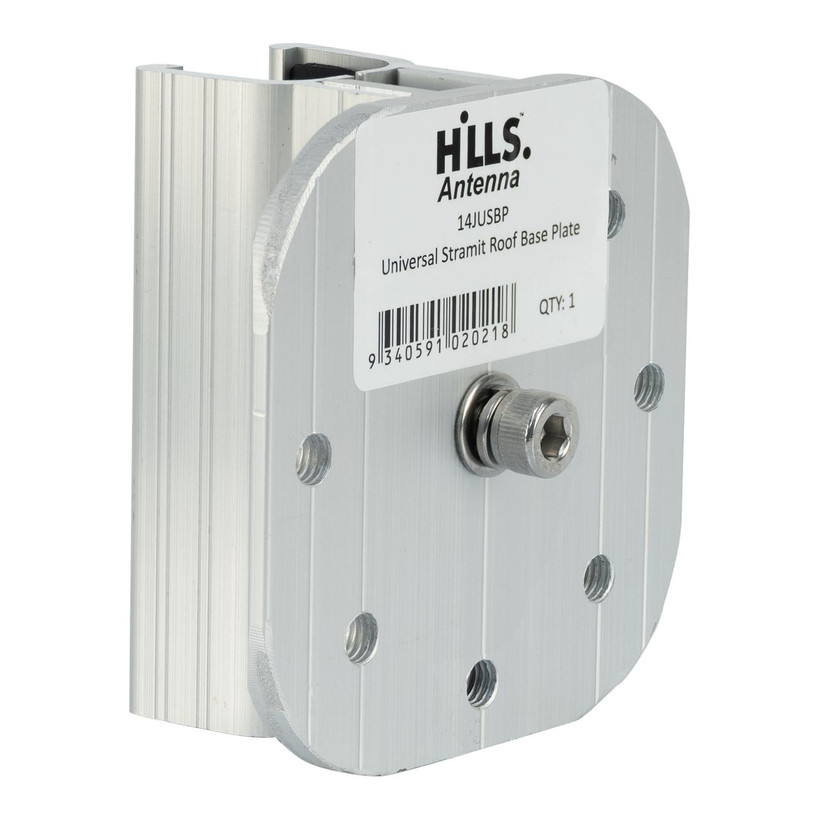

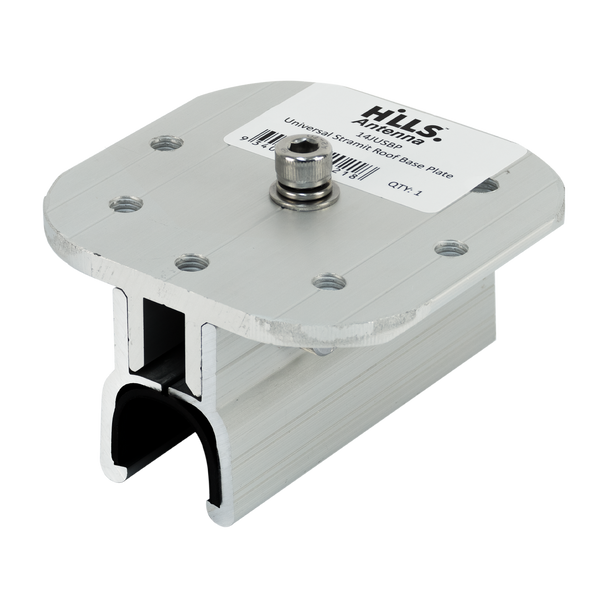

Hills Antenna 14JUSBP Universal Stramit Roof Base Plate

The aluminium mount with a rib clamp design offers a secure and non-penetrating mounting solution for roof panels.

Design:

• Non-Penetrating Mount: The mount utilizes a rib clamp design that securely clamps over the rib of the roof panel without the need to penetrate the surface, preserving the integrity of the roof and preventing water ingress.
• Dimensions: 100mm (L) x 100mm (W) x 56.6mm (H)
• Material: High-strength Aluminium 6005-T5, ideal for structural and outdoor use
• Mounting Method: Non-penetrating, clamps securely over the rib of a roof panel, ensuring a firm hold without causing damage.
• Surface Treatment: Anodized finish (thickness>10µm) for enhanced corrosion resistance and durability in harsh environments
• Colour: Silver, providing an aesthetically neutral finish
• Certifications: ISO, CE, SGS, AS/NZS, JIS, ASCE7-10 compliant for quality and safety standards
• Contents: Bracket, 4 x M8 Allen Bolt, 1 x 100mm x 61mm EPDM Sheet

This clamp mount is designed for secure and reliable roof panel mounting, particularly in solar and other structural installations.
