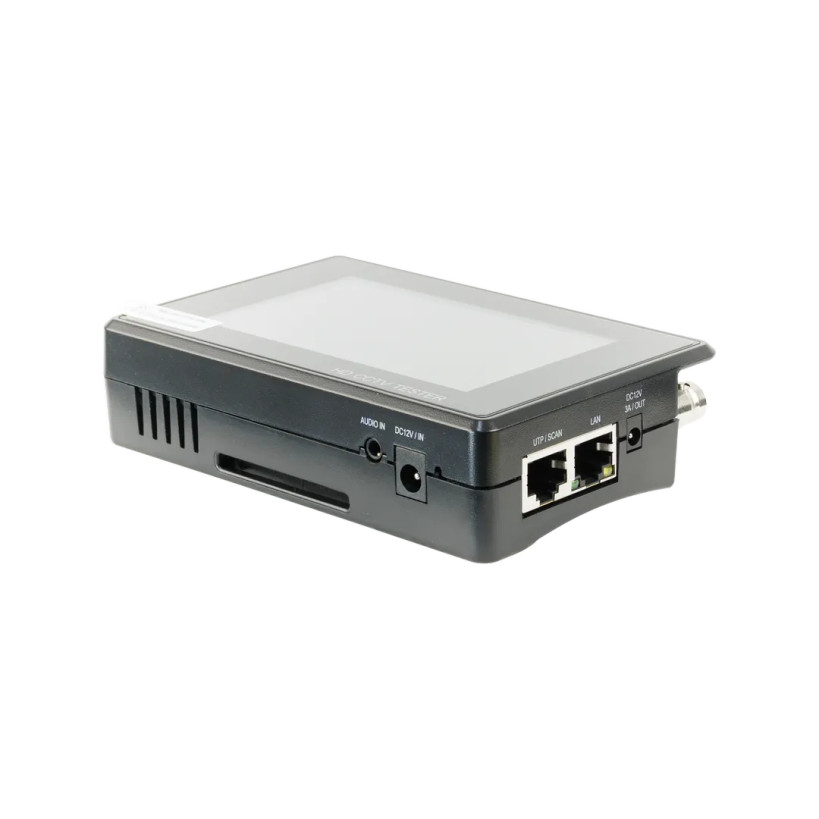

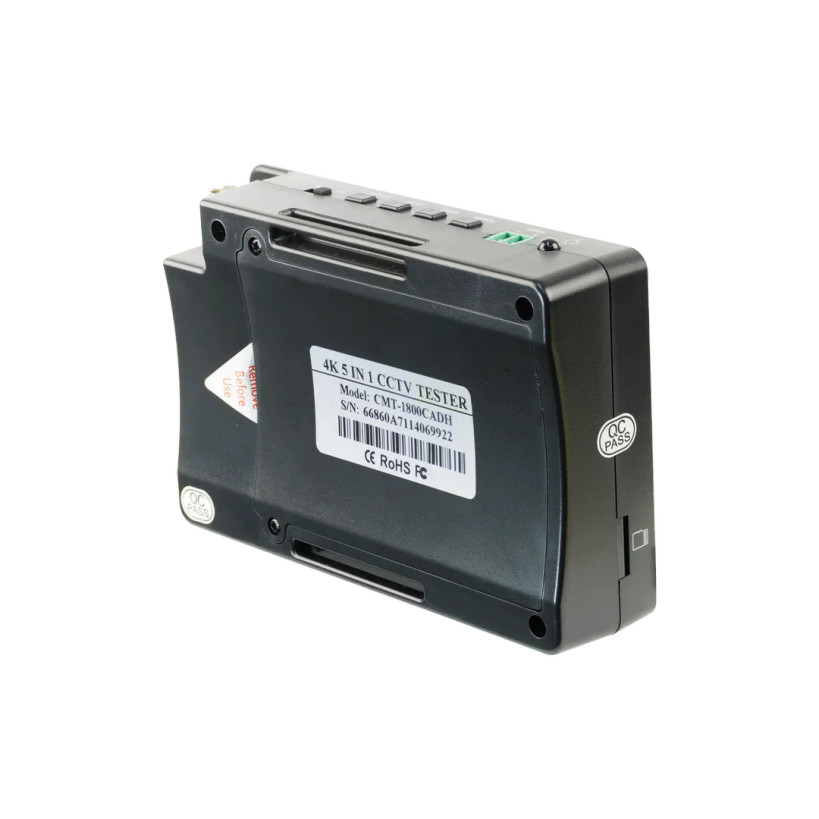

Hills Antenna 16EWWC Wrist Worn CCTV Tester

The Hills Antenna 16EWWC Wrist Worn CCTV Tester is a compact, professional-grade tool engineered for security installers, technicians, and CCTV professionals who demand hands-free convenience and powerful testing capabilities on the go.

Featuring a 4-inch IPS touchscreen (800x480 resolution) mounted on a comfortable wrist strap, this innovative tester keeps both hands free while delivering crystal-clear monitoring and diagnostics. It supports the latest high-resolution formats, including 8MP TVI, 8MP CVI, 8MP AHD, plus CVBS analog cameras, and 4K H.265/H.264 IP cameras — making it ideal for modern hybrid surveillance systems.

Key Features & Benefits

• Hands-Free Wrist Design — Compact and lightweight (just 0.32kg), perfect for ladder work, tight spaces, or all-day installations without fatigue.
• Advanced Camera Testing — Full support for 8MP coaxial HD (TVI/CVI/AHD at up to 3840x2160p), CVBS, and IP cameras with H.265/H.264 4K video playback.
• Rapid ONVIF & Auto Detection — One-button IP Discovery and Rapid Video auto-detects network cameras, logs in, displays live views, and generates testing reports instantly.
• Brand-Specific Tools — Dedicated HIK test tool (Hikvision) and DH test tool (Dahua) for fast configuration and troubleshooting of popular brands.
• Comprehensive Cable & Network Diagnostics — RJ45/UTP TDR cable test (up to 180m) checks pair status, length, attenuation, impedance, skew, and more. Includes PING, IP scan, port flashing, and network traffic monitoring.
• PoE & Power Output — Built-in 48V PoE (max 25.5W) and 12V DC 3A output to power cameras during setup — no extra power supply needed on site.
• Wi-Fi & Multi-Device Sync — Integrated Wi-Fi for wireless camera testing, hotspot creation, plus TesterPlay syncs display across tester, Android phone, and PC simultaneously.
• Media & Utility Extras — Plays MKV/MP4/4K videos, audio testing, RS485 PTZ control, snapshot/record/playback, drop-down quick menus (PoE, IP settings, LAN info), and self-updating Android-based software.
• Long-Lasting Battery — 7.4V 2400mAh lithium polymer battery provides up to 8 hours of normal operation, with 12V DC external charging.

What's Included

• 1x 4” Wrist Worn Tester
• 1x Wrist Strap
• 1x BNC Cable
• 1x RS485 Cable
• 1x Audio Cable
• 1x UTP Cable Tester
• 1x 12V DC / 1A Adaptor
• 1x 12V DC Power Cable
• 1x Carry Bag
• 1x Manual
• Built-in 7.4V 2400mAh Polymer Lithium-Ion Battery

Backed by a 1-year warranty, the Hills Antenna 16EWWC combines portability, cutting-edge 8MP/4K compatibility, and essential installer tools into one rugged, user-friendly device. Whether you're testing analog, coaxial HD, or IP cameras, this wrist-mounted powerhouse streamlines installations, reduces setup time, and ensures reliable performance every time.

Upgrade your CCTV toolkit today with the Hills Antenna 16EWWC — the ultimate wrist-worn solution for efficient security system testing!
