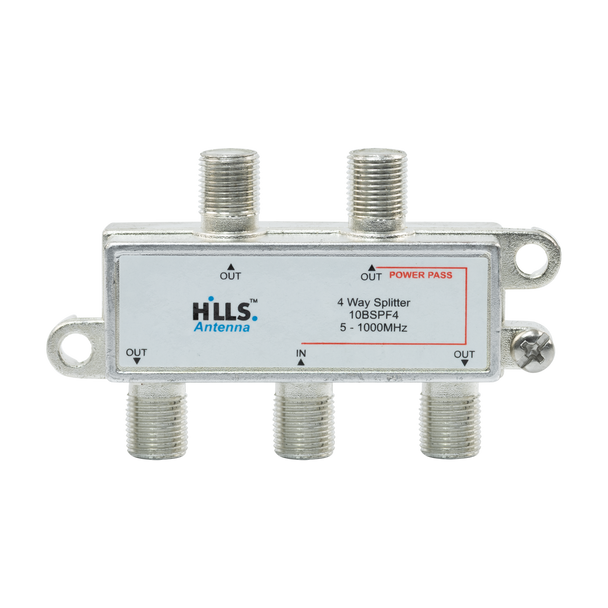

Hills Antenna 4 Way 5-1000MHz F Type Splitter - 1 Leg Power Pass

Quadruple the entertainment options in your household with the Hills Antenna 4-Way 5-1000MHz F-Type Splitter (10BSPF4), the reliable Free-To-Air (FTA) wizard that turns one antenna signal into four vibrant feeds for non-stop viewing. Crafted for Aussie homes and easy expansions—from family dens to home offices—this powerhouse coaxial splitter spreads signals across the full 5-1000MHz spectrum, locking in razor-sharp digital FTA channels, HDTV blockbusters, and crystal radio without a hint of lag or blur. With featherweight insertion loss (6.8-8.2dB by band) and fortress-like isolation (22-28dB mutual), it ensures every outlet pulses with equal power, banishing weak links and inviting endless binge sessions.

Tucked into a tin-plated zinc die-cast armor with ≥100dB screening, this nimble splitter shines with all F-Type female connectors (75Ω) for unbreakable, fade-proof coaxial bonds. The single power pass port revs up your antenna amp (24V 0.8A max) seamlessly, and with ready-to-go mounting holes, screws, and earth kit, installation feels like child's play. Skip the signal struggles and embrace four-fold fun—your FTA network's new best mate!

Key Features:

• Four-Way Signal Magic: Fans out one input to 4 F-Type female ports (75Ω), fine-tuned for FTA TV and HDTV in growing setups with dead-even distribution
• Elite Low-Loss Specs: Insertion from 6.8dB (5-40MHz) to 8.2dB (860-1000MHz), mutual isolation peaking at 28dB, and return loss 17-20dB for squeaky-clean, ripple-free reception
• Plug-in Power Boost: Single port fuels amps or boosters on demand, supercharging FTA signals without the wiring headache
• Die-Cast Shield Supreme: Tin-plated zinc shell with ≥100dB screening obliterates EMI and clutter, geared for tough indoor or loft life
• Micro-Strip Brilliance: Cutting-edge circuitry nails ideal performance for spotless FTA scans and broadband bliss
• Mount-in-Minutes Ease: Whisper-light and tidy with edge holes, complete with mounting/earth screws for swift, secure hangs
• Bulletproof F-Connectors: All-ports F-Type female for vice-grip, storm-proof joins with RG6/RG59 cables and classic FTA antennas
