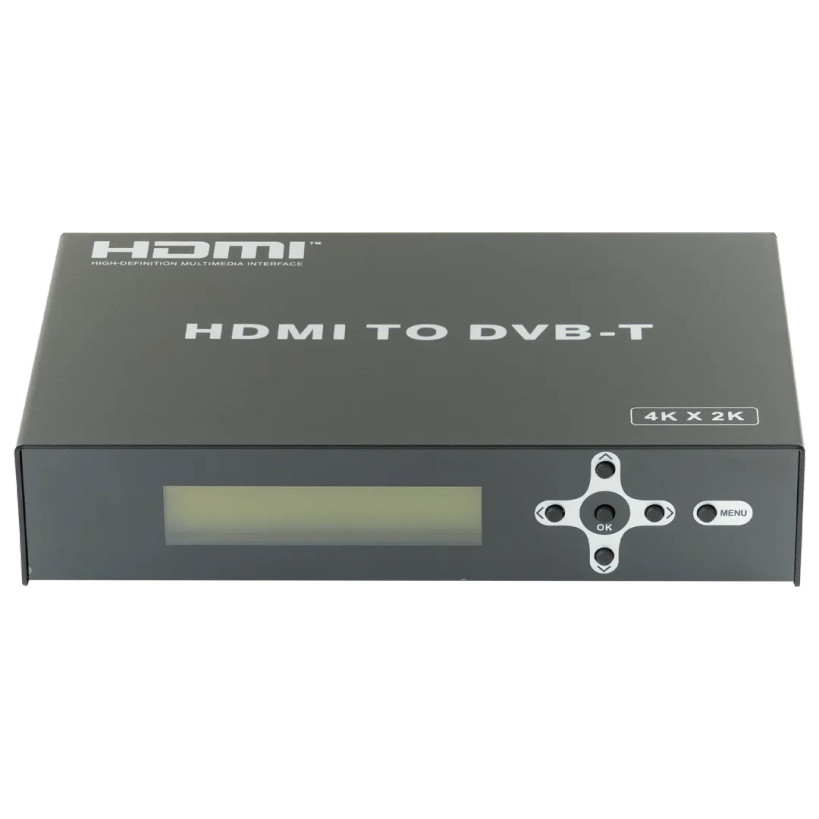

Hills Antenna 4K HDMI to DVB-T 1CH Modulator

Hills Antenna 17HA1CHMOD4K 4K HDMI to DVB-T Modulator – Premium Ultra HD Distribution Over Coax

Experience future-proof video distribution with the advanced Hills Antenna 17HA1CHMOD4K HDMI to DVB-T modulator. This single-channel powerhouse takes 4K HDMI sources and modulates them into a DVB-T RF signal for broadcast over standard coaxial cables to unlimited TVs. Distribute stunning Ultra HD content from 4K Blu-ray players, streaming devices, satellite boxes, gaming consoles, or professional AV sources across homes, hospitality venues, conference rooms, or multi-room setups effortlessly.

With HDMI 2.0 and HDCP 2.2 support plus efficient H.265 encoding, it delivers superior picture quality at higher resolutions while maintaining compatibility with DVB-T tuners.

Features:

• True 4K support – modulates up to 3840×2160@60Hz for Ultra HD distribution over existing coax infrastructure
• Distribute one HDMI/4K source to multiple displays using a single modulator + CATV splitter
• Robust metal housing – wall mountable, easy installation
• Superior anti-interference, anti-noise, lightning/surge/ESD protection for reliable long-term use
• Supports multiple modulator setups and configurations
• Frequency agile: 177.5–866 MHz, max 24 Mbps effective bitrate
• Supports up to 4K@60Hz; our 1080p model (17HA1CHMOD) offers the same reliable performance at a lower price point for HD-only sources

Technical Specifications:

• HDMI: 2.0 compatible, HDCP 1.4/2.2
• Video resolutions: 480p@60Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60Hz, plus 3840×2160@24/25/30/50/60Hz
• Encoding: H.264 / H.265 (HEVC) video, MPEG2 audio
• Coaxial standard: DVB-T
• Power: 12V DC / 1A
• Dimensions: 158(W) × 115(D) × 33(H) mm
• Operating temperature: -20°C to 60°C

What's Included:

• 1× 17HA1CHMOD4K 4K Modulator
• 12V DC / 1A power adaptor
• Mounting hardware (2× ears, 4× screws)
• User manual

Backed by a 1-year warranty. The ultimate choice for installers and users needing a high-performance 4K HDMI to DVB-T modulator or 4K RF modulator to future-proof coaxial TV systems with Ultra HD content.
