Description
The Hills Antenna BC15484B 4-Way Passive Splitter divides the signal power into 4 equal portions. This is used when you require 4 TV outlets in the home and is designed for TV and Satellite signal applications 5 - 2400MHz. It is important to mount the splitter as close as possible to the antenna. The roof cavity is a good location. The Splitter is designed for use with F-Type connections and also has an earthing lug, if so required.
Features:
- Foxtel Approved IPL #F30092
Specifications
Connection Type: F-Type
Gender: Female
Number of Inputs: 1
Number of Outputs: 4
Power Pass: All Ports
Product Usage: Indoor
Warranty: 1
View AllClose
Gender: Female
Number of Inputs: 1
Number of Outputs: 4
Power Pass: All Ports
Product Usage: Indoor
Warranty: 1
Details
Product Information Sheet: |
|
Splitter Type: |
Free to Air & Satellite
|
Number of Outlets: |
4
|
Frequency Range: |
5 - 2400MHz
|
Power Pass: |
All Ports
|
Connection Type: |
F Type Female
|
Materials: |
Zinc Die-Cast Housing, Tin Plated
|
Insertion Loss: |
7.5dB - 11.5dB
|
Return Loss: |
12dB - 18dB
|
Screening Factor: |
5 - 2400MHz ≥100dB
|
Packaging: |
Display Box
|
Warranty: |
1 Year
|
Included Accessories: |
Mounting Screws & Earth Screw
|
Carton Quantity: |
100
|
Pallet Quantity: |
-
|
Related Products

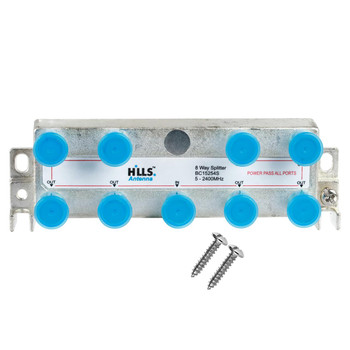

Hills Antenna BC15254B 8-Way Passive Splitter - Display Box
