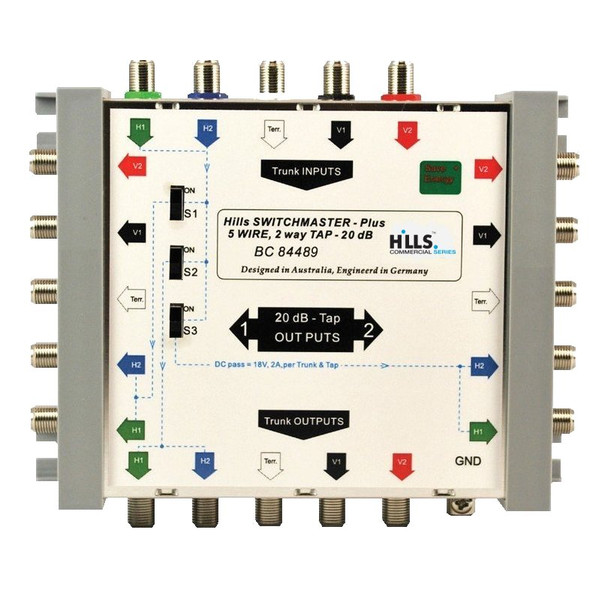

Hills Antenna BC84489 20dB 2-Way 5-Wire SMATV Tap

The Hills Antenna BC84489 20dB SMATV Tap is a premium, Foxtel-approved 5-wire multi-tap built for large-scale distribution systems where a high tap attenuation level is required. Designed for superior performance in SMATV/MATV trunk-and-tap configurations, it offers excellent isolation, dependable DC pass support, and low trunk through loss.
Ideal for long-run cabling or installations with strong incoming signals, this 20dB tap ensures stable delivery of satellite (950–2150 MHz) and terrestrial (5–862 MHz) signals. Rugged sheet-metal construction and colour-coded F-type ports make it both durable and installer-friendly.

Also available in 10dB (BC84487) & 15dB (BC84488) models.

Key Features:

• Foxtel approved (Approval #F30845)
• High 20dB tap value – ideal for long trunk routes or high-signal sites
• Compatible with 5-wire systems (4 SAT + 1 terrestrial)
• Satellite & terrestrial frequency support
• Only 3dB trunk through loss
• DC pass supported: 1000mA (tap) / 2000mA (trunk)
• Colour-coded F-type connectors
• Strong sheet-metal housing with earthing terminal
• Wall-mountable indoor design
• Ensures stable performance for large SMATV networks
