Description

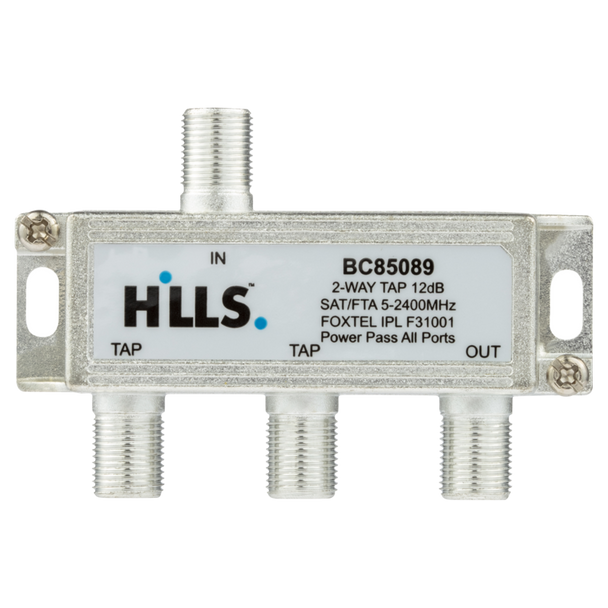

The Hills Antenna BC85089 is the genuine Foxtel-approved 12 dB 2-way passive tap for distributing satellite (Foxtel iQ5/iQ4) + terrestrial signals in SMATV and large-home installations. With full 5–2400 MHz bandwidth it is future-proof for 4K/8K and next-gen Foxtel services.
Also available in 16dB (BC85090) & 20dB (BC85091).
Key Features
- Officially Foxtel Approved – IPL #F31001
- 12 dB tap loss (perfect for feeding a secondary riser or apartment)
- Through-loss ≈ 1.8 dB
- 1 × Input → 1 × Through + 2 × 12 dB Taps
- Full bandwidth 5–2400 MHz
- High isolation >25 dB

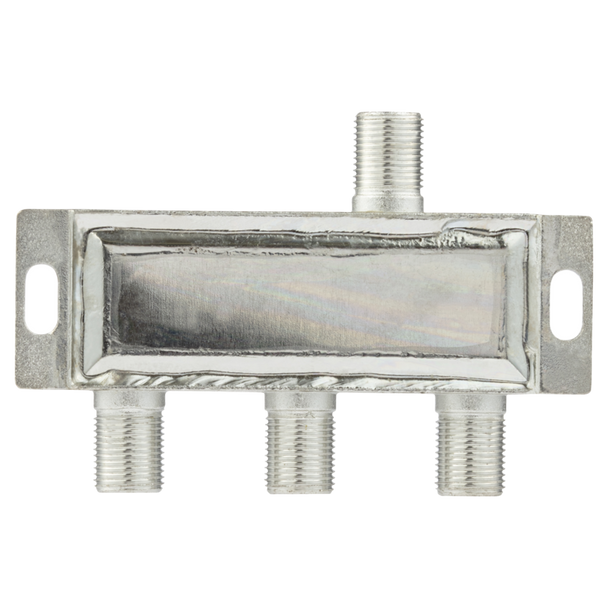

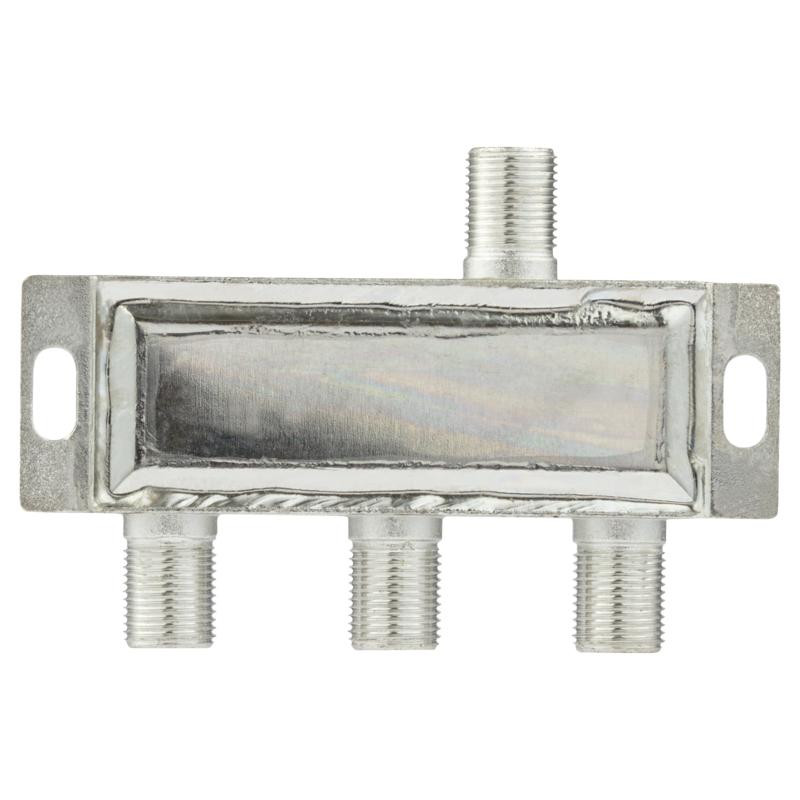

- Zinc die-cast housing with bright tin finish & solder-shield back

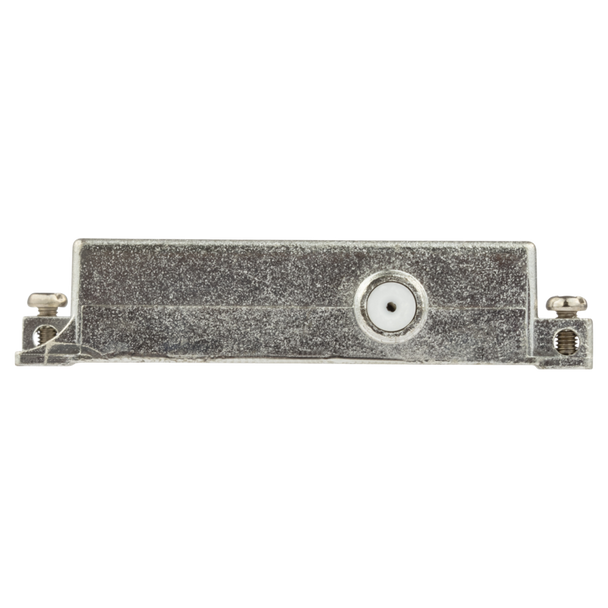

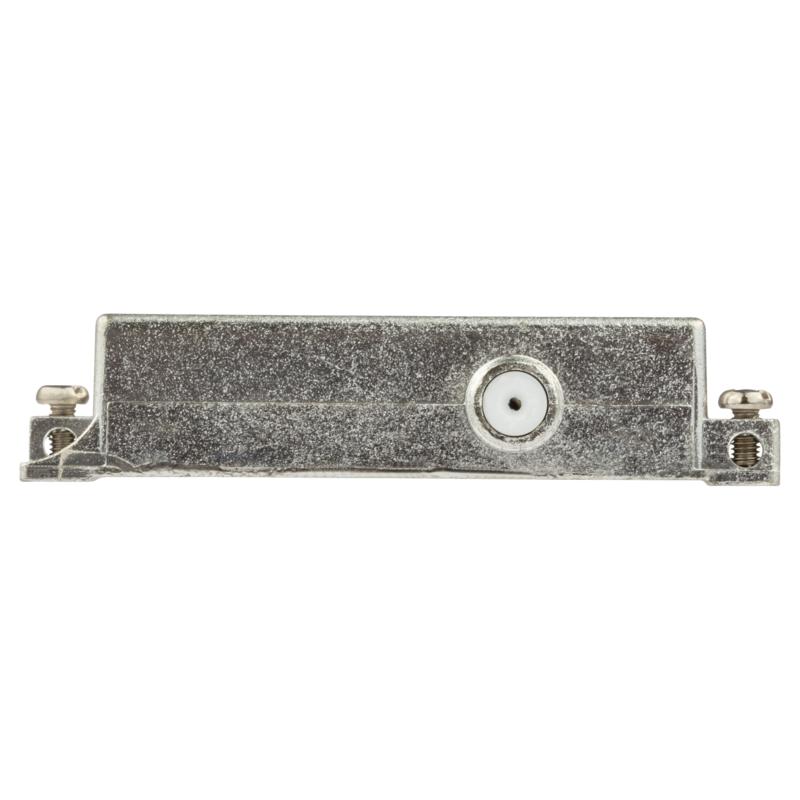

- All F-type female connectors (75 Ω)
- Grounding terminal + 2 mounting screws included
What’s Included
- 1 × Hills Antenna BC85089 12 dB 2-Way Tap
- 2 × mounting screws
- Polybag packaging
Specifications
Connection Method: Screw on
Connection Type: F-Type
Number of Inputs: 1
Number of Outputs: 1
Power Pass: Not Applicable
Product Usage: Indoor
Warranty: 1
View AllClose
Connection Type: F-Type
Number of Inputs: 1
Number of Outputs: 1
Power Pass: Not Applicable
Product Usage: Indoor
Warranty: 1
