Description

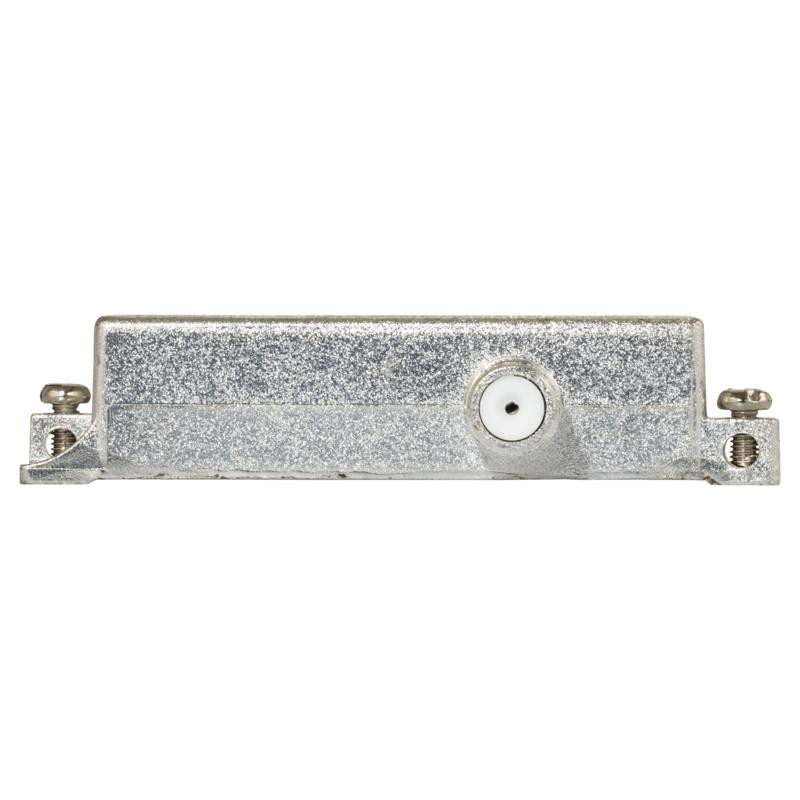

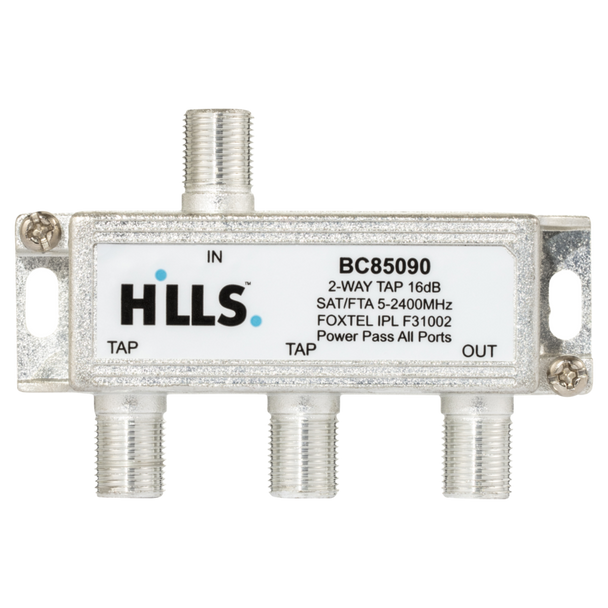

The Hills Antenna BC85090 is the most commonly specified 16 dB 2-way passive tap – the “sweet spot” for feeding mid-level floors or secondary distribution points while preserving maximum signal on the main riser.
Also available in 12dB (BC85089) & 20dB (BC85091).
Features:
- Officially Foxtel Approved – IPL #F31002
- 16 dB tap loss
- Through-loss ≈ 1.4 dB
- 1 × Input → 1 × Through + 2 × 16 dB Taps
- Full 5–2400 MHz bandwidth
- Identical premium die-cast housing, tin finish, solder-shield back
- Grounding terminal + mounting screws included
What’s Included
- 1 × Hills Antenna BC85090 16 dB 2-Way Tap
- 2 × mounting screws
- Polybag packaging
Specifications
Connection Method: Screw on
Connection Type: F-Type
Number of Inputs: 1
Number of Outputs: 1
Power Pass: Not Applicable
Product Usage: Indoor
Warranty: 1
View AllClose
Connection Type: F-Type
Number of Inputs: 1
Number of Outputs: 1
Power Pass: Not Applicable
Product Usage: Indoor
Warranty: 1
